Anti-Lock Brake System (Abs)
>>
Functions Of Sensors And Actuators
Functions Of Sensors And Actuators

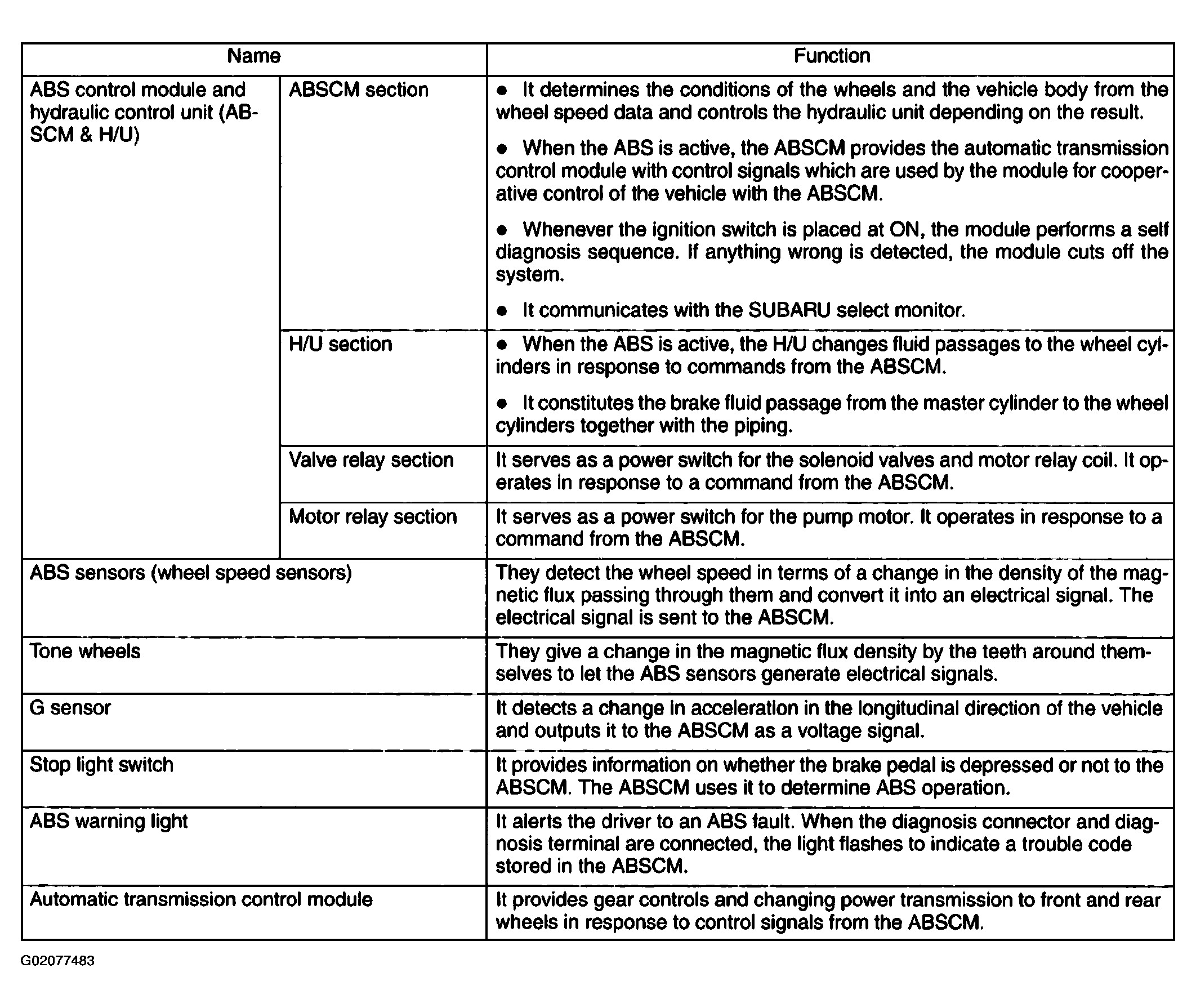

Fig 1: Functions Of Sensors & Actuators Chart
Courtesy of SUBARU OF AMERICA, INC.

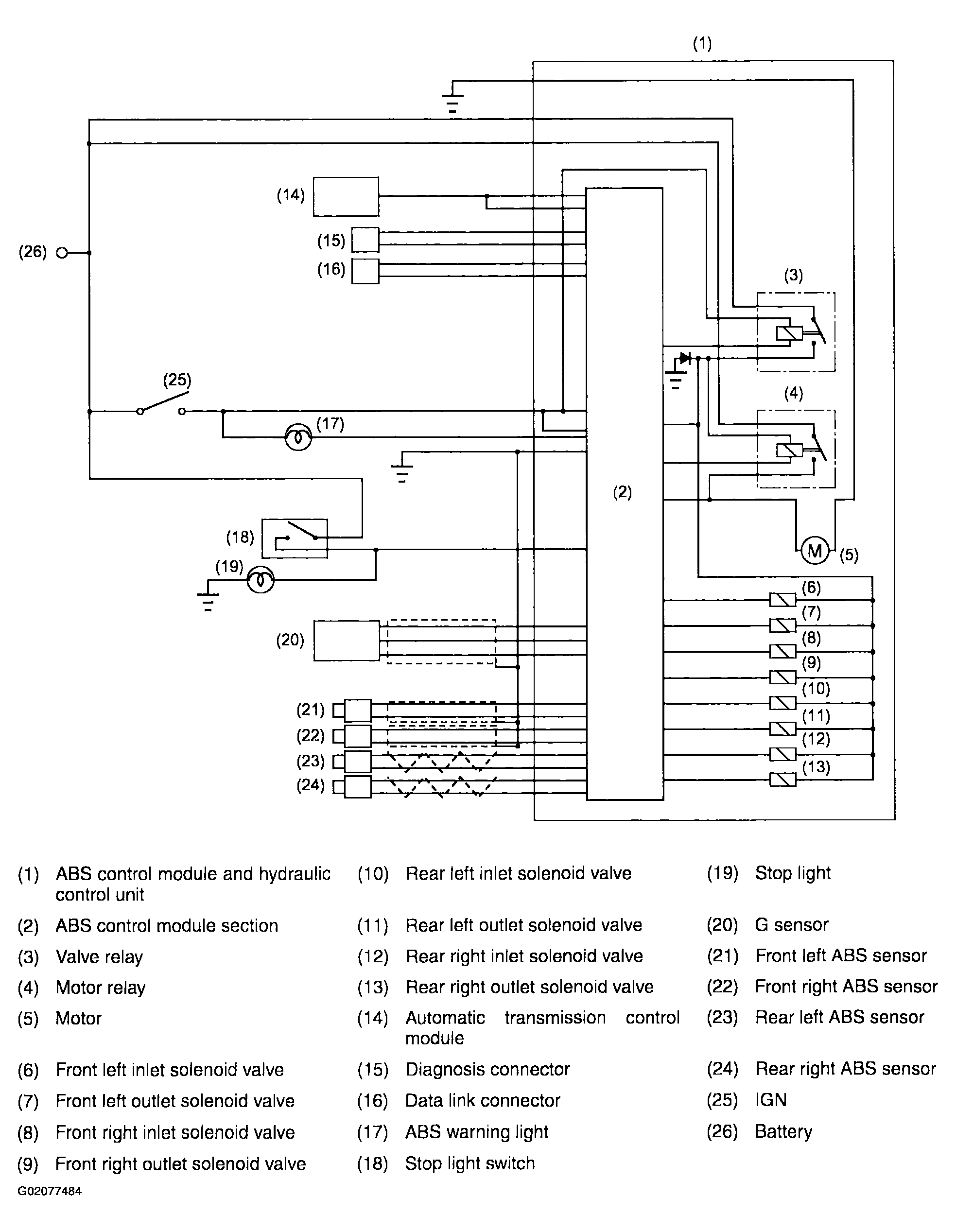

Fig 2: Anti-Lock Brake Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
