Cruise Control: Actuator

In response to a signal from the cruise control module, the clutch in the actuator is turned ON. This causes the stepping motor to operate, pulling the throttle cam for speed control.

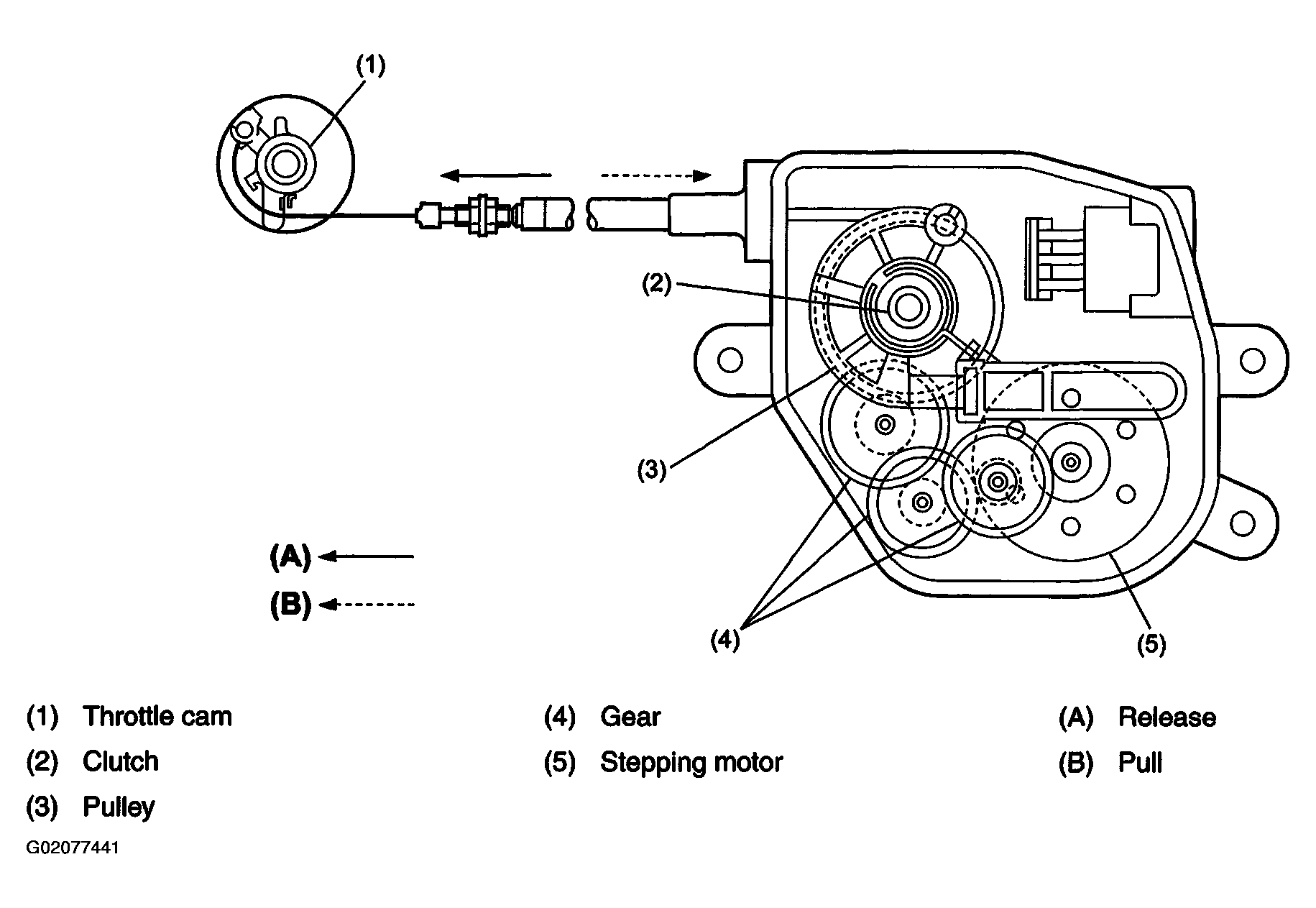

Fig 1: Identifying Actuator
G02077441Courtesy of SUBARU OF AMERICA, INC.
