Electrical Specification

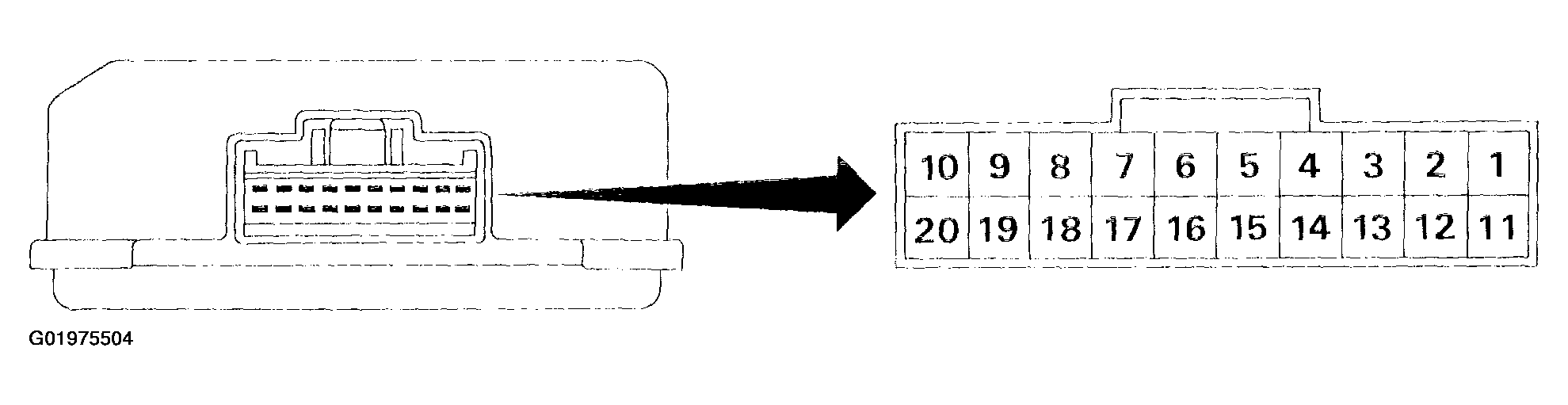

Fig 1: Identifying Cruise Control Module Connector Terminals
G01975504Courtesy of SUBARU OF AMERICA, INC.

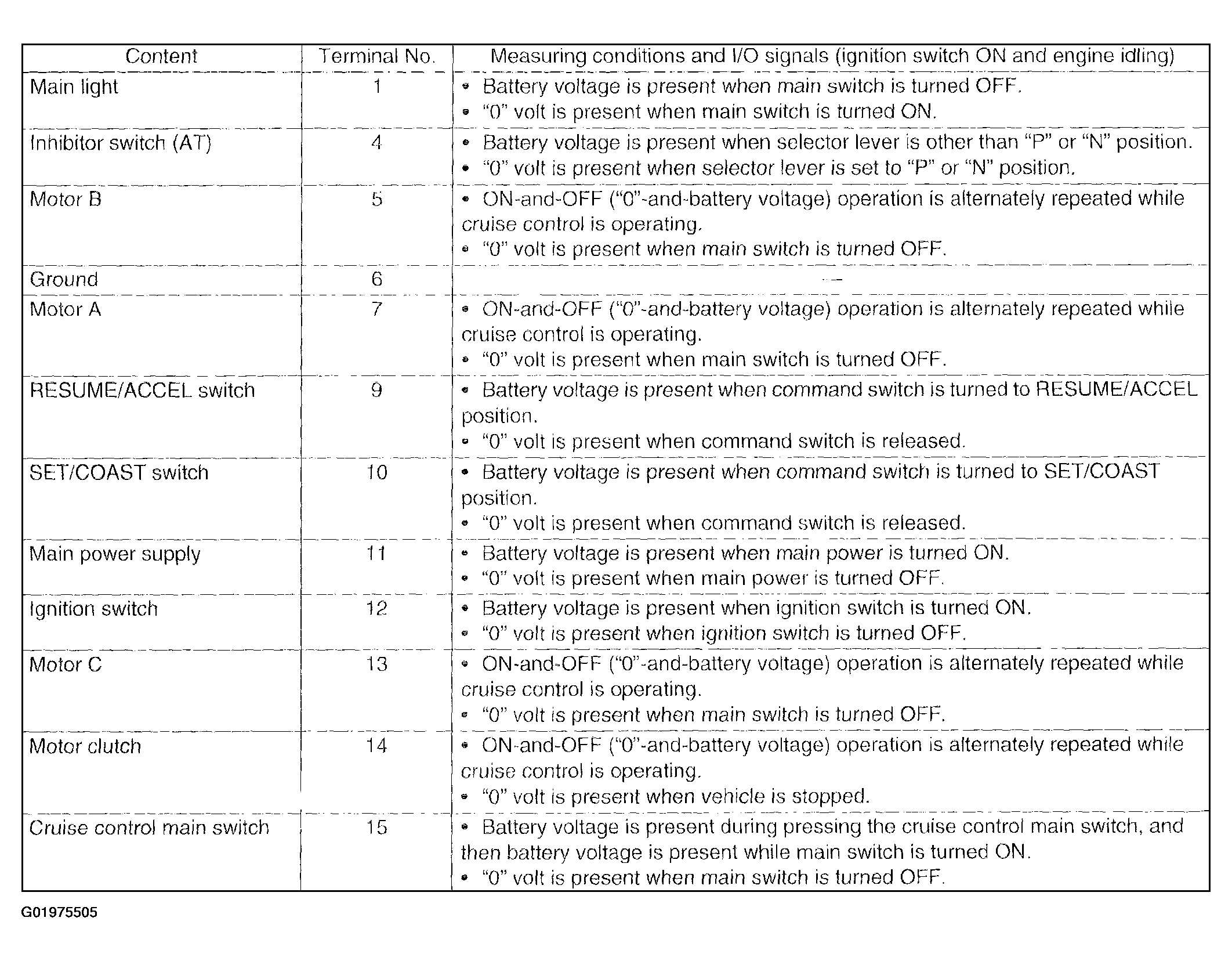

Fig 2: Cruise Control Module I/O Signal Chart (1 Of 2)
G01975505Courtesy of SUBARU OF AMERICA, INC.

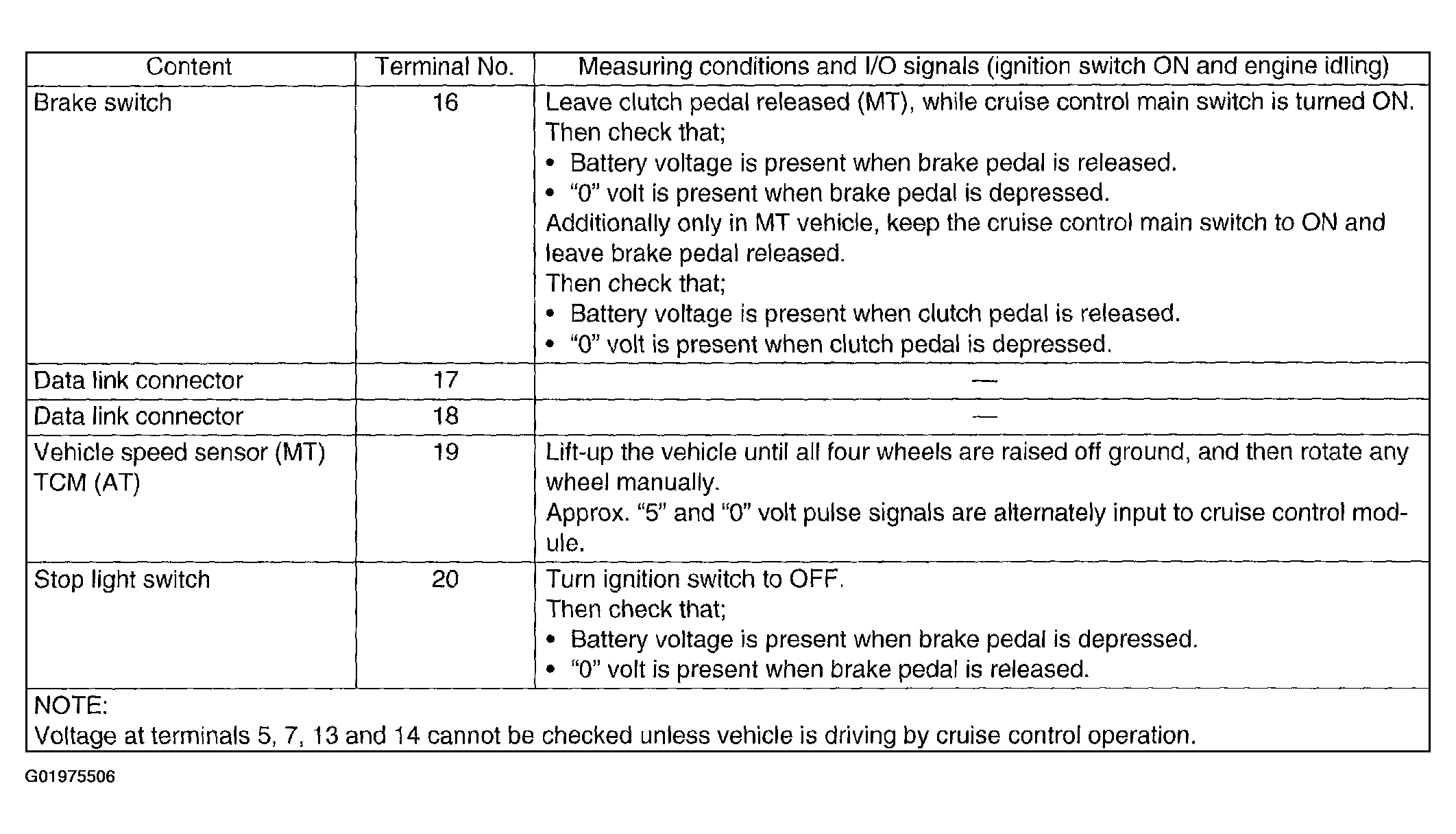

Fig 3: Cruise Control Module I/O Signal Chart (2 Of 2)
G01975506Courtesy of SUBARU OF AMERICA, INC.
