General Diagnostic: Inspection

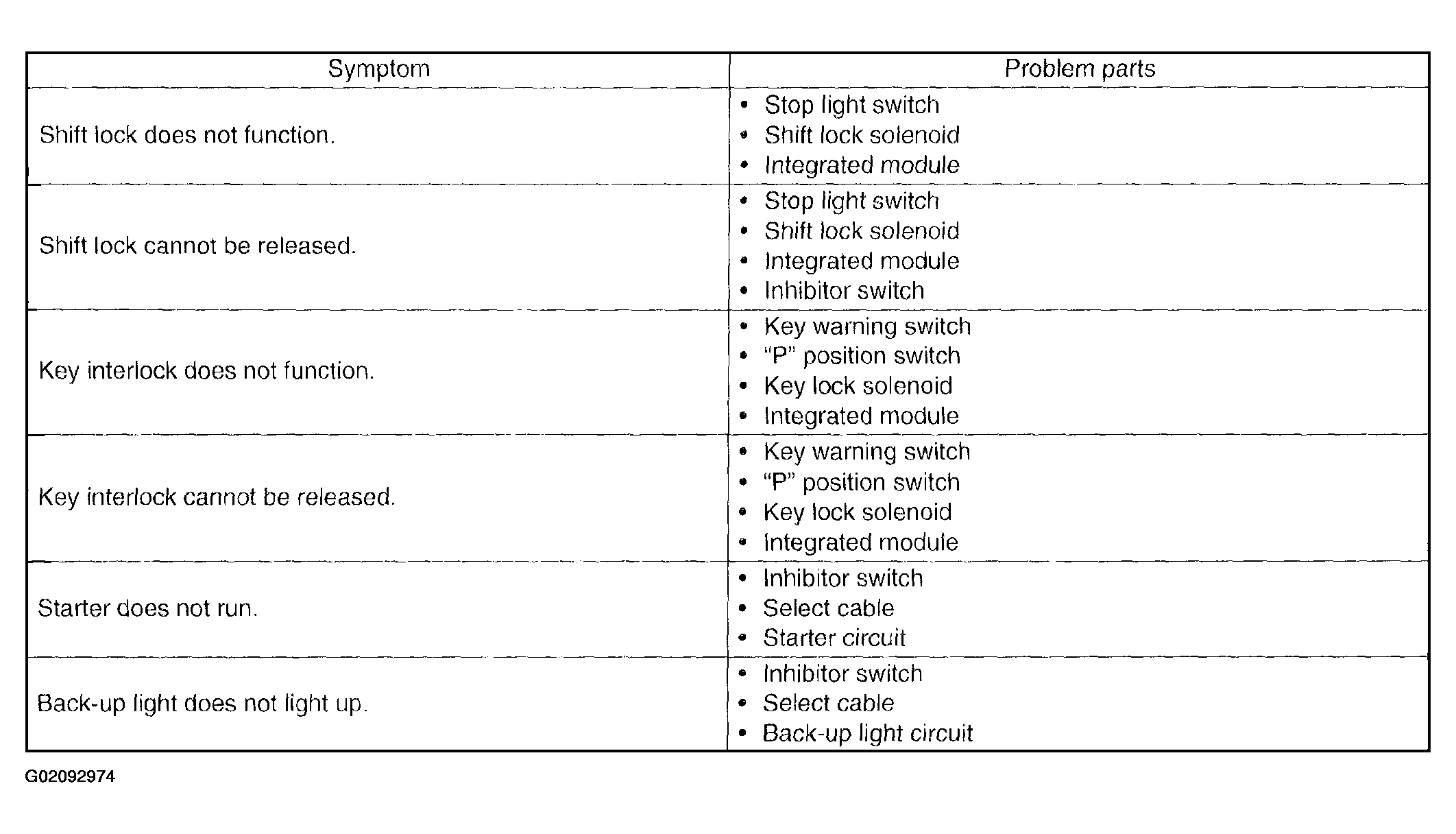

Fig 1: General Diagnostic Inspection Table

G02092974

Courtesy of SUBARU OF AMERICA, INC.
