Diagnostic Procedures:

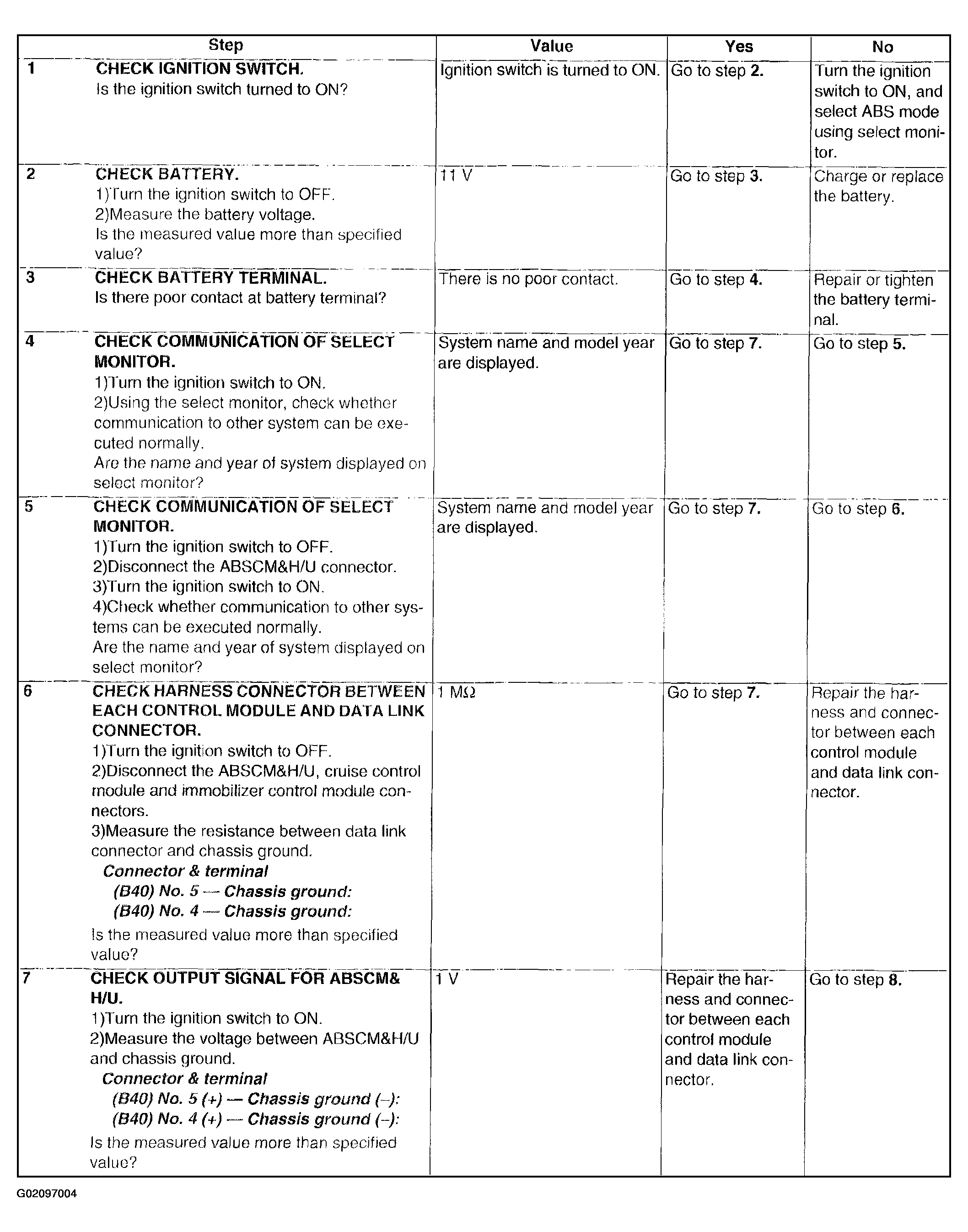

Fig 1: Communication For Initializing Impossible Diagnostic Procedure Chart (1 Of 2)
G02097004Courtesy of SUBARU OF AMERICA, INC.

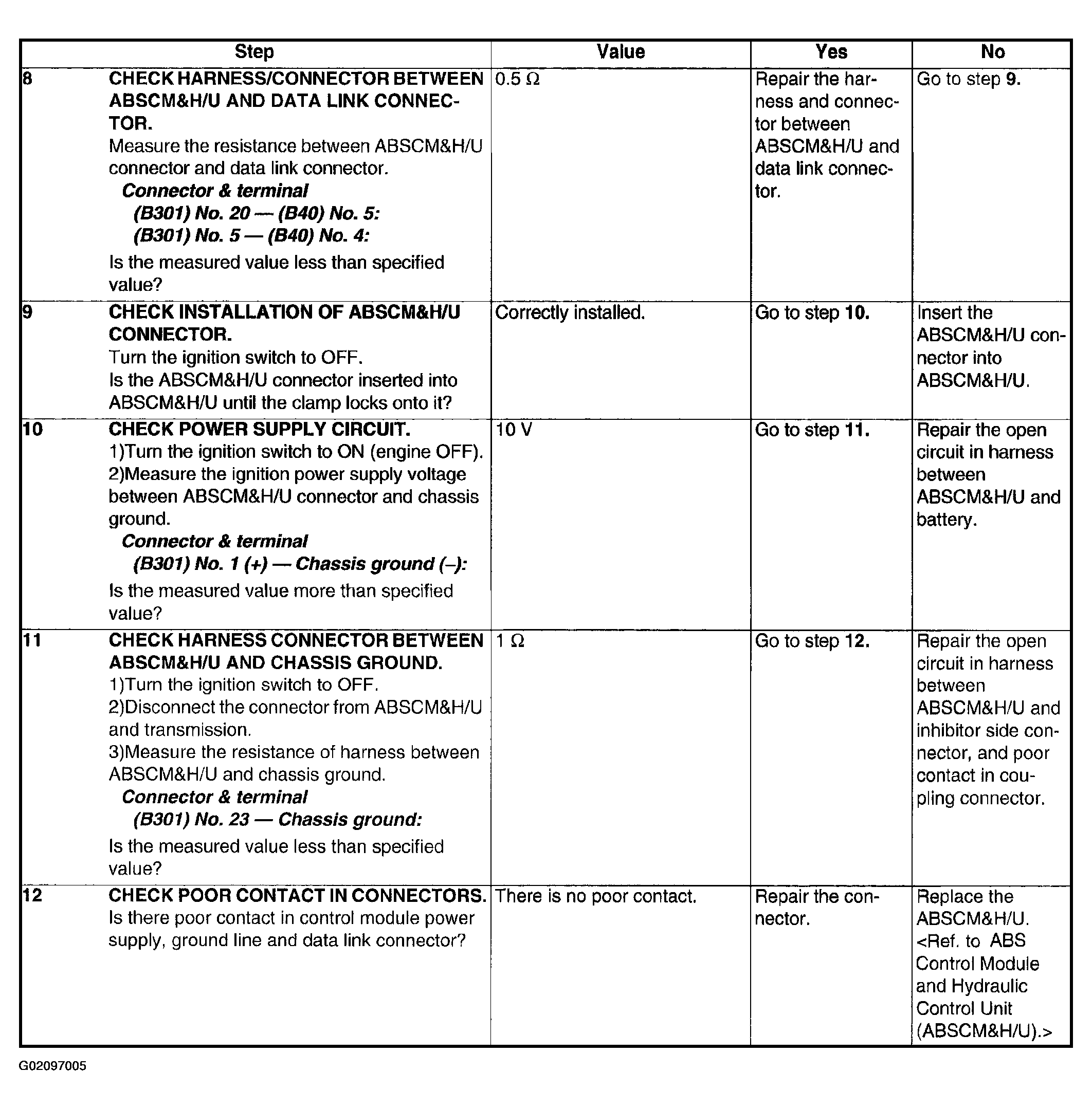

Fig 2: Communication For Initializing Impossible Diagnostic Procedure Chart (2 Of 2)
G02097005Courtesy of SUBARU OF AMERICA, INC.
