Home
>>
Subaru
>>
2003
>>
Forester X, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Glass & Windows - Mechanism & Function
>>
Power Window
>>
Circuit Diagram
Circuit Diagram

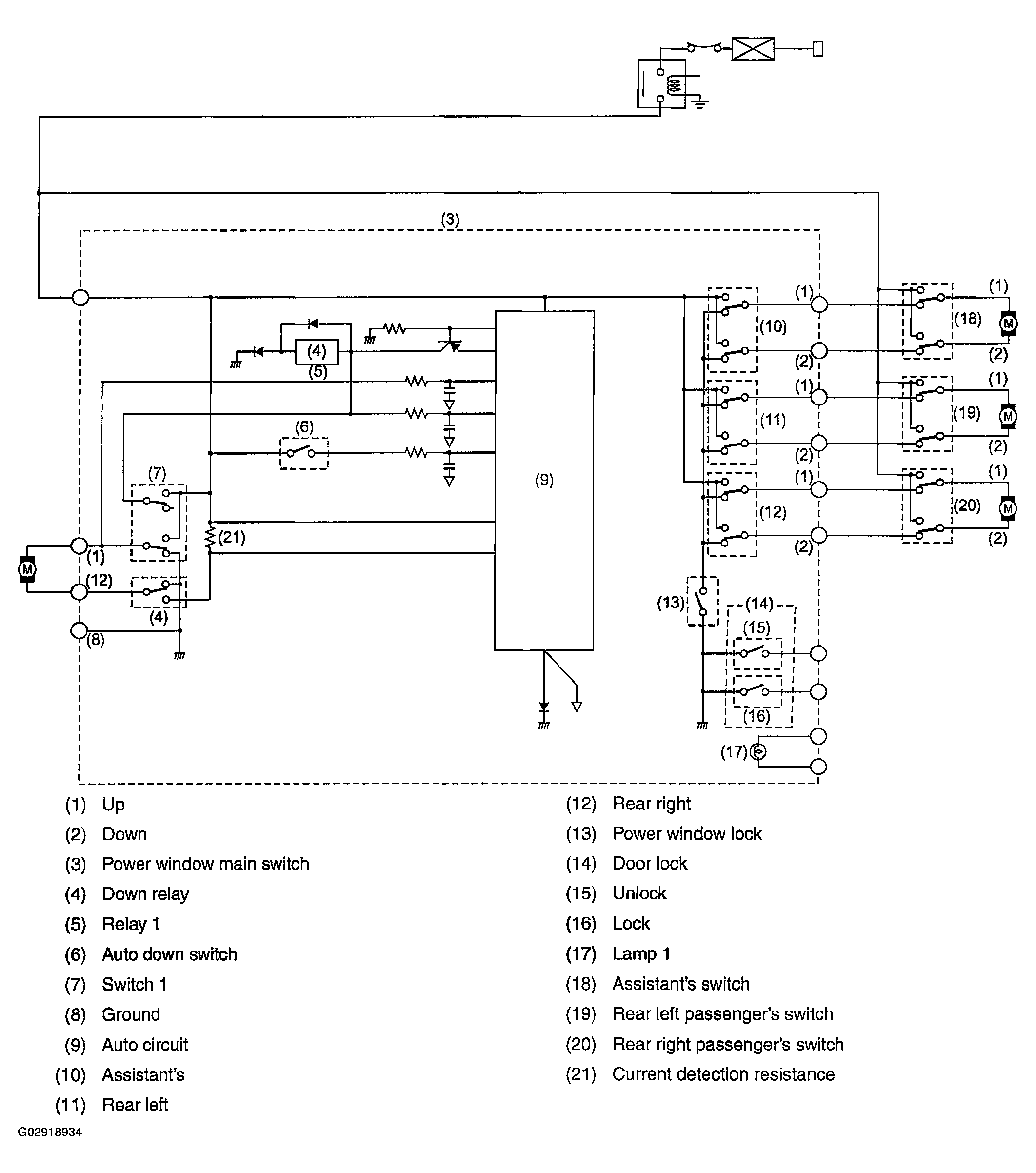

Fig 1: Circuit Diagram - Power Window
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
