Cruise Control: Schematic

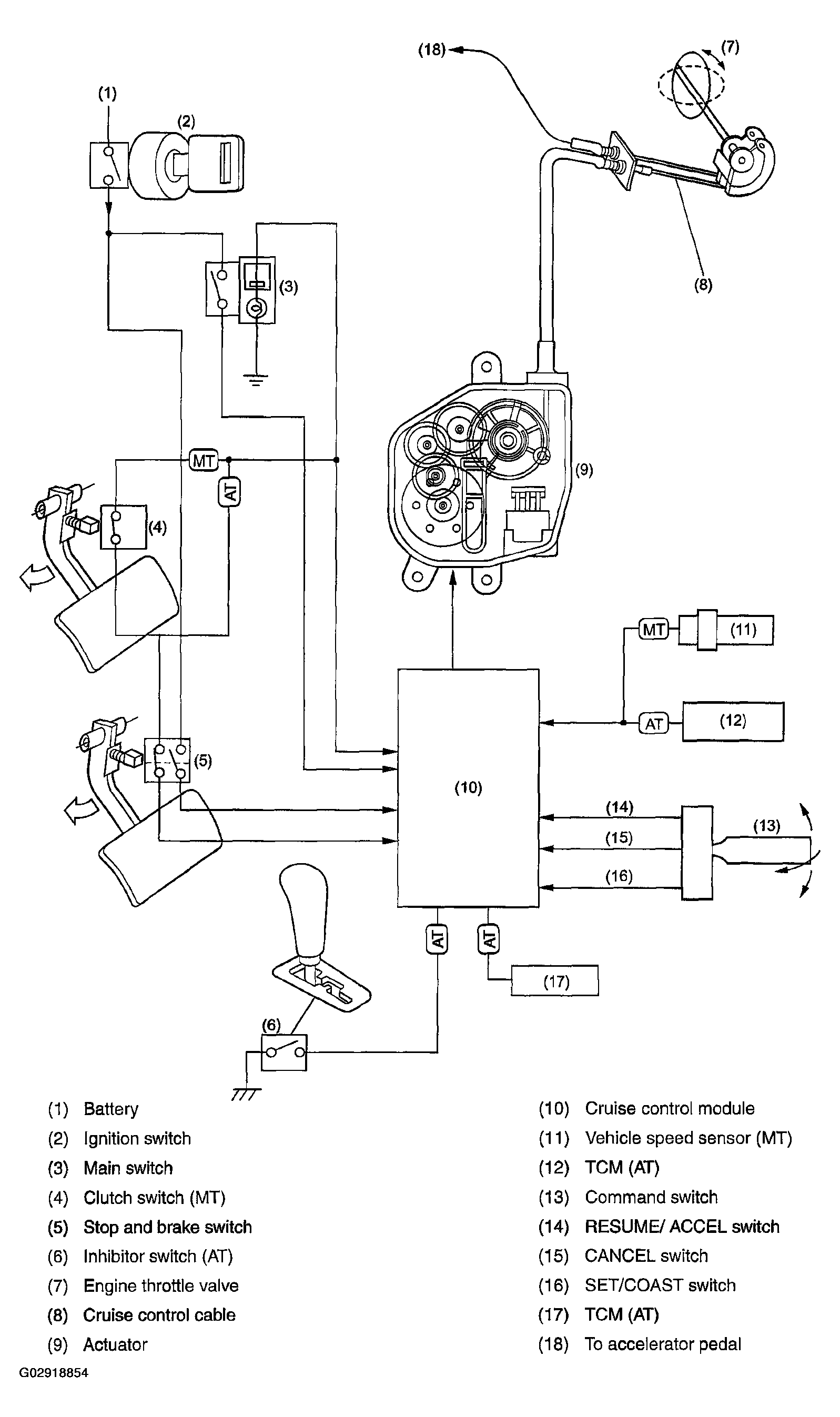

Fig 1: Cruise Control System Schematic Diagram

G02918854

Courtesy of SUBARU OF AMERICA, INC.
