AT Shift Lock Solenoid and "P" Position Switch: Removal

Disconnect the ground cable from battery.
Remove the console box. Refer to REMOVAL , Console Box.
Disconnect the connector.
Remove the grip.
Remove the indicator light from indicator cover.

Fig 1: Removing Indicator Light From Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the indicator cover.

Fig 2: Removing Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the slider.
Remove the cushion.
Remove the clip, and then remove the "P" position switch.

Fig 3: Removing Clip & Position Switch
Courtesy of SUBARU OF AMERICA, INC.
Remove the cover.

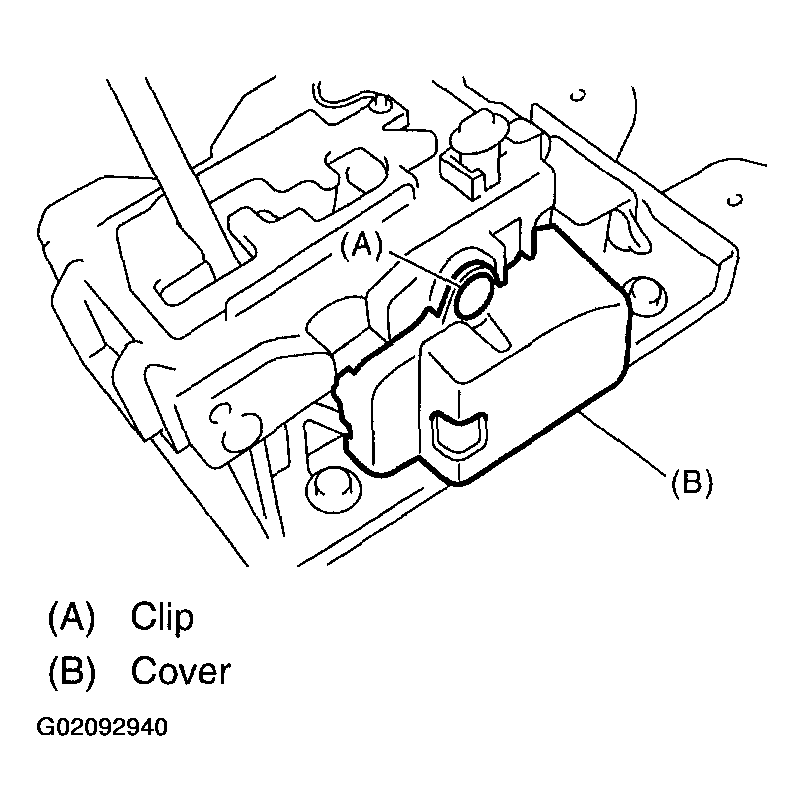

Fig 4: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp and remove the shift lock solenoid.

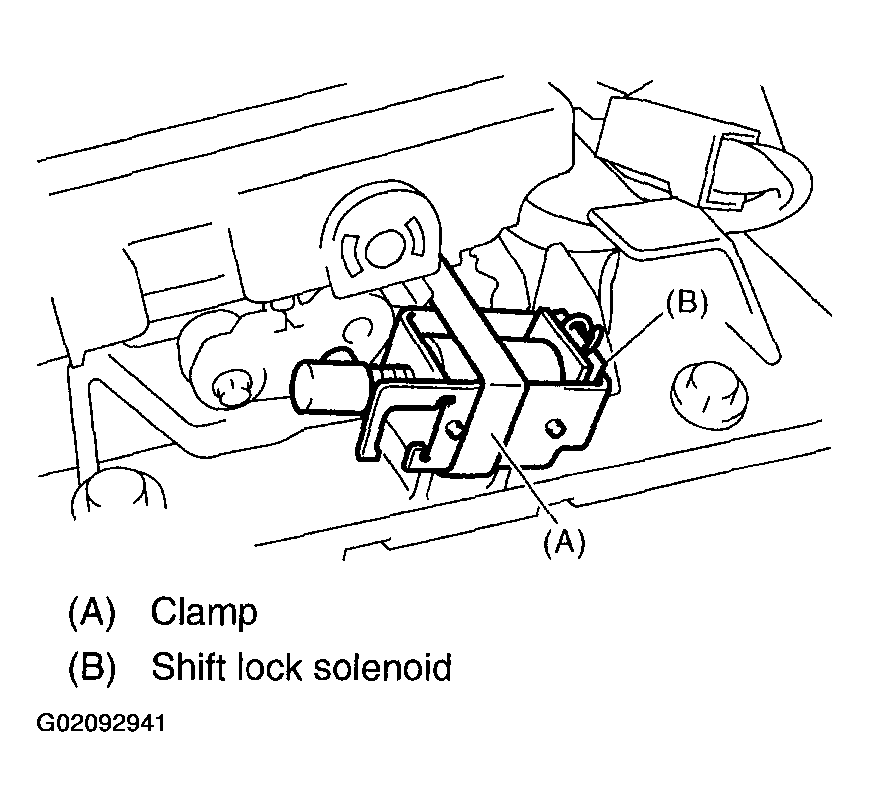

Fig 5: Removing Clamp & Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
