Check Ignition Switch Circuit

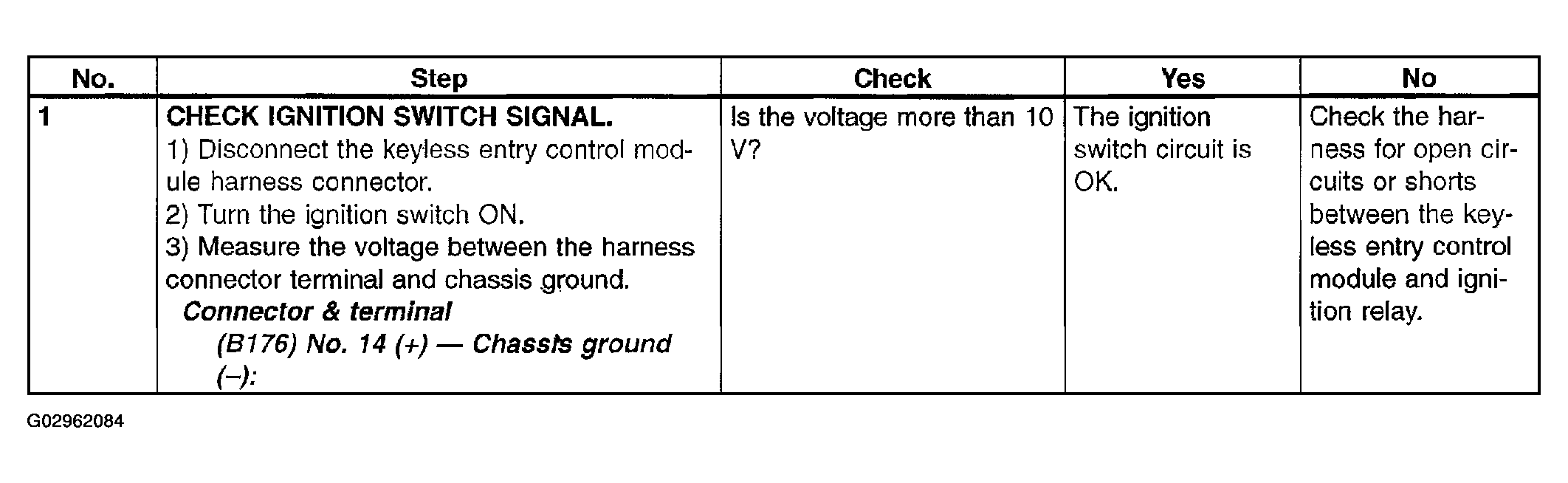

Fig 1: Checking Ignition Switch Circuit Chart

G02962084

Courtesy of SUBARU OF AMERICA, INC.
