Side Retainer

WARNING: This page is about a different variant/trim than selected.

Remove O-ring.

Fig 1: Removing O-Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove oil seal.
NOTE: Do not reuse oil seal. Prepare a new oil seal.

Fig 2: Removing Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove either of side split pin and pin, and remove claw.
ST 398527700 PULLER ASSY

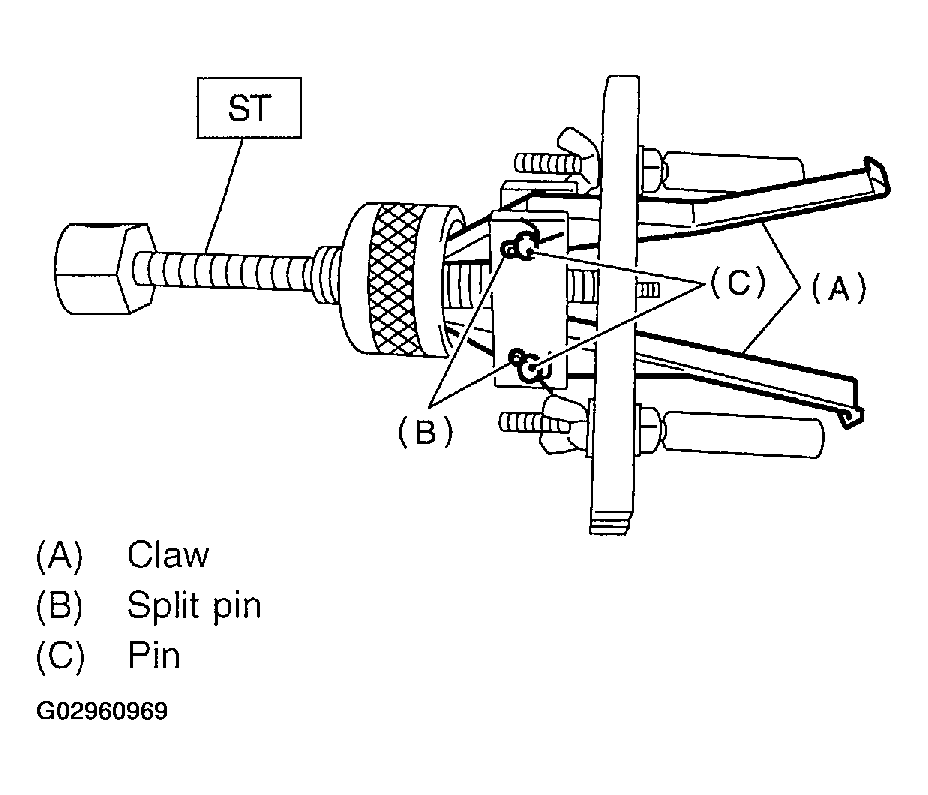

Fig 3: Removing Split Pin & Claw
Courtesy of SUBARU OF AMERICA, INC.
Attach two claws to outer race securely, and set ST to side retainer.
ST 398527700 PULLER ASSY
NOTE:
- Attach notch portions of the two shafts securely to side retainer.
- Restore the removed claws to original position, and install pin and split pin.
Fig 4: Attaching Claws To Outer Race
Courtesy of SUBARU OF AMERICA, INC.
Remove bearing outer race form side retainer. ST 398527700 PULLER ASSY
NOTE:
- Fix shaft of ST secure enough it will not loosen and fall from side retainer.
- When replacing bearing outer race, replace it with inner race as a set.

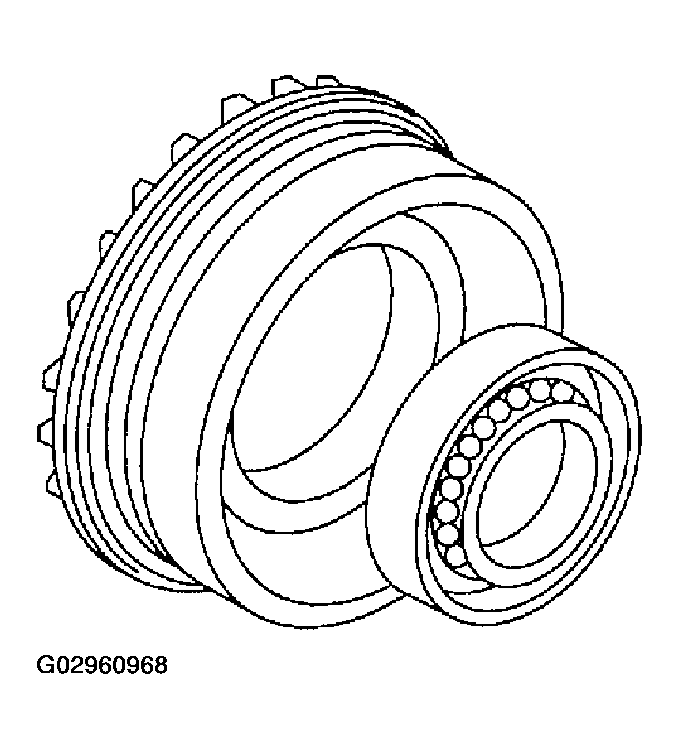

Fig 5: Removing Bearing Outer Race Form Side Retainer
