Basic Inspection

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all disassembled parts, and check for wear, damage, or any other faults, then repair or replace as necessary.
  2. When disassembling, check inside of gearbox for water. If any water is found, carefully check damage, input shaft dust seal, adjusting screw and boot clips for poor sealing. If faulty, replace wit parts.

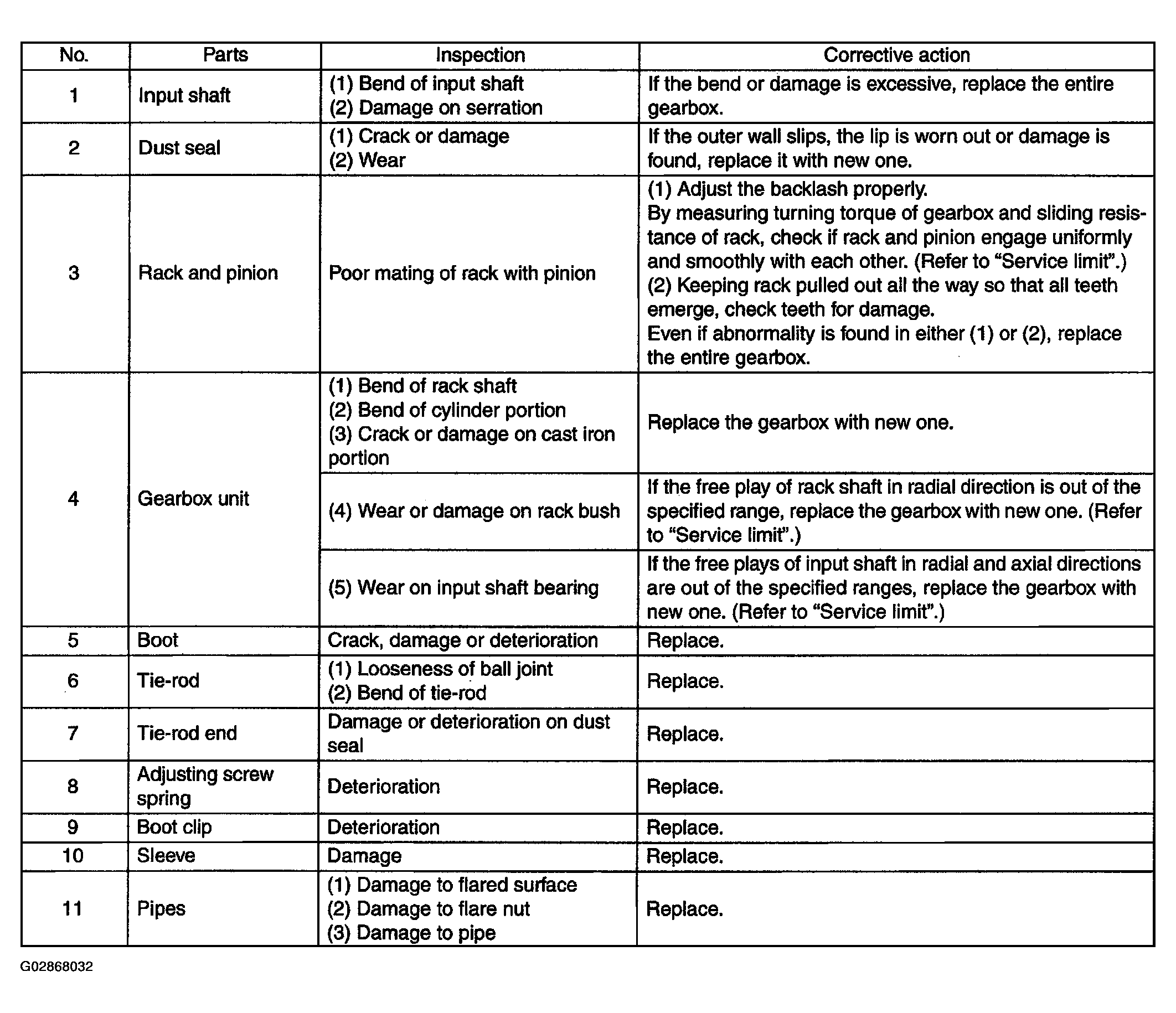

    Fig 1: Checking For Wear & Damage
    G02868032Courtesy of SUBARU OF AMERICA, INC.
