Idle Air Control Solenoid Valve: Removal

  1. Disconnect battery ground cable.

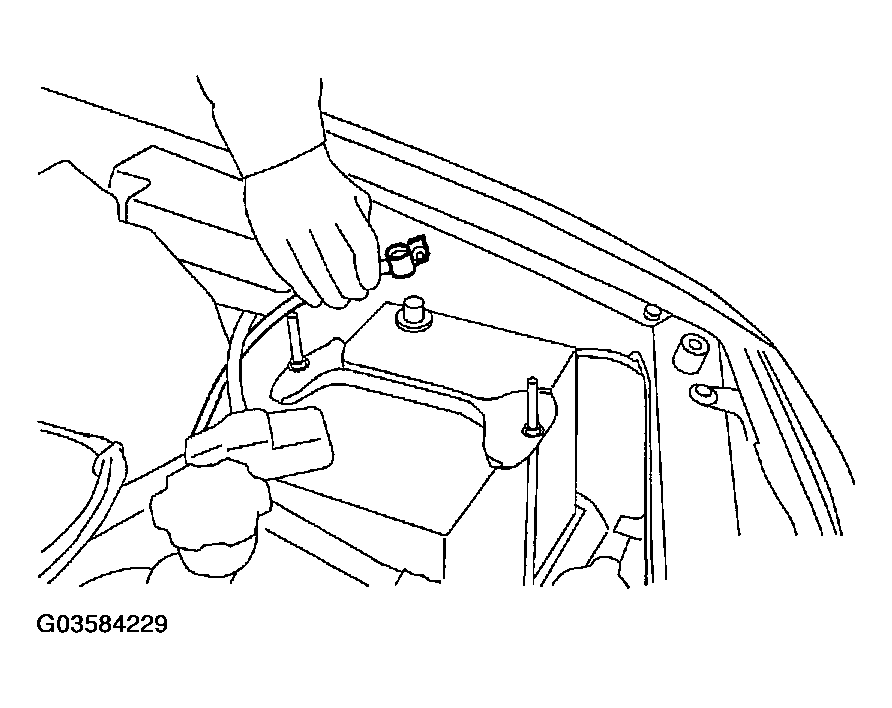

    Fig 1: Disconnecting Battery Ground Cable
    G03584229Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect connector (A) from idle air control solenoid valve.
  3. Disconnect air by-pass hose (B) from idle air control solenoid valve.
  4. Remove idle air control solenoid valve from throttle body.
    Fig 2: Disconnecting Connector (A) From Idle Air Control Solenoid Valve
    G03584230Courtesy of SUBARU OF AMERICA, INC.
