Cruise Control System: Actuator: Inspection

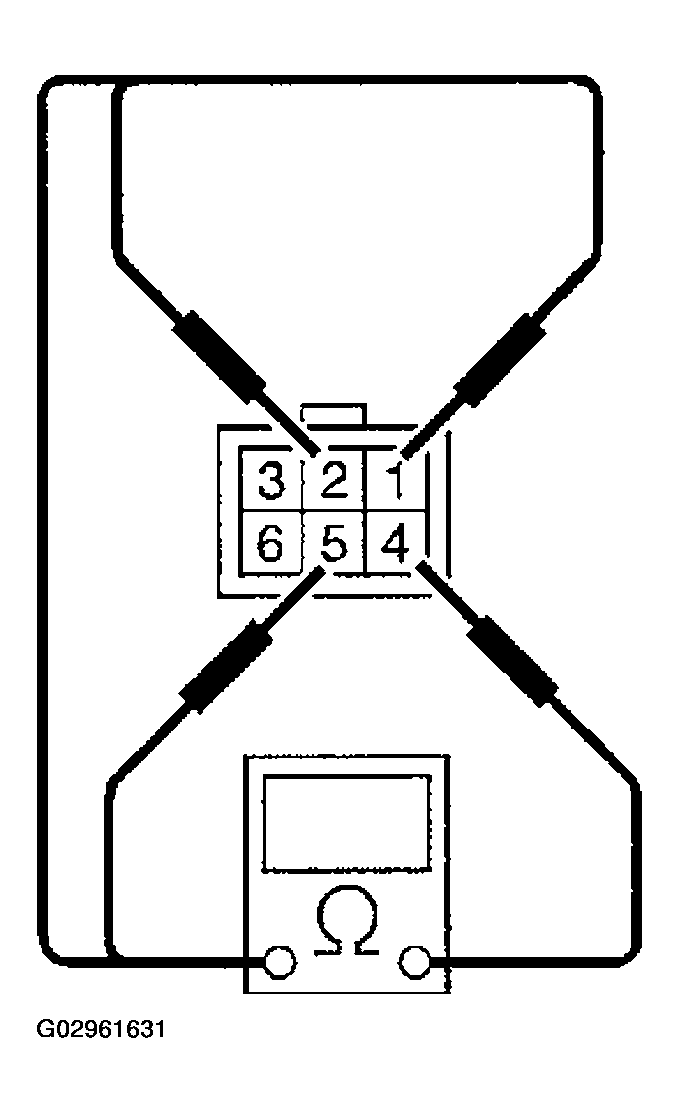

Measure cruise control actuator resistance.
Courtesy of SUBARU OF AMERICA, INC. CRUISE CONTROL ACTUATOR RESISTANCE
| Terminal No. |
Standard |
| 4 and 1 |
Approx. 5 ohm |
| 4 and 2 |
Approx. 5 ohm |
| 4 and 5 |
Approx. 5 ohm |
| 3 and 6 |
Approx. 39 ohm |
If NG, replace cruise control actuator.
