Main Switch

  1. Remove two hooks of switch panel to remove power window main switch.

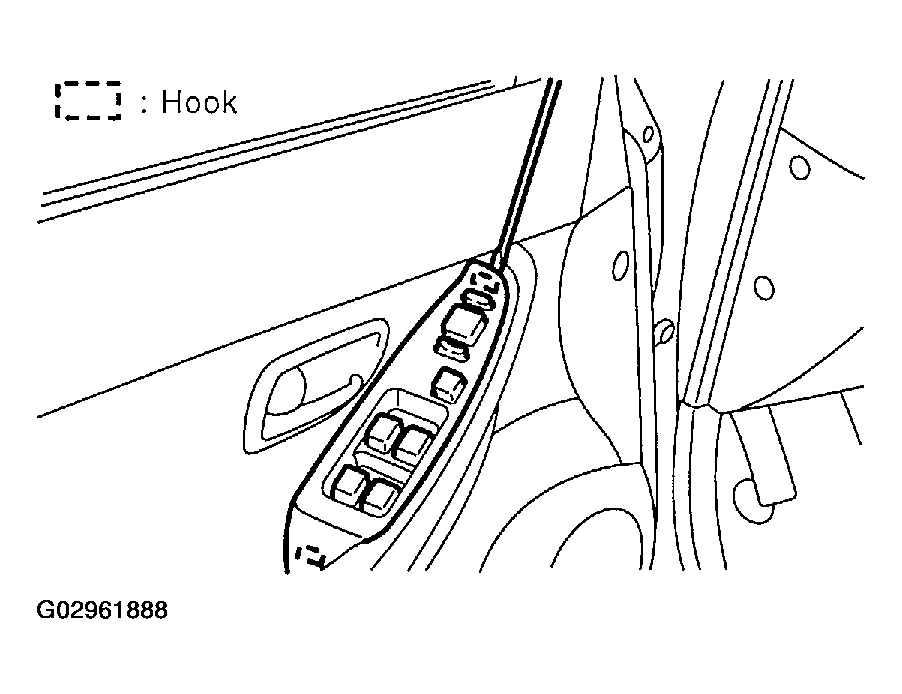

    Fig 1: Removing Two Hooks Of Switch Panel To Removing Power Window Main Switch
    G02961888Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect electrical connectors from power window main switch and mirror switch.
Fig 2: Disconnecting Electrical Connectors From Power Window Main Switch & Mirror Switch
G02961889Courtesy of SUBARU OF AMERICA, INC.
