Turbo Model

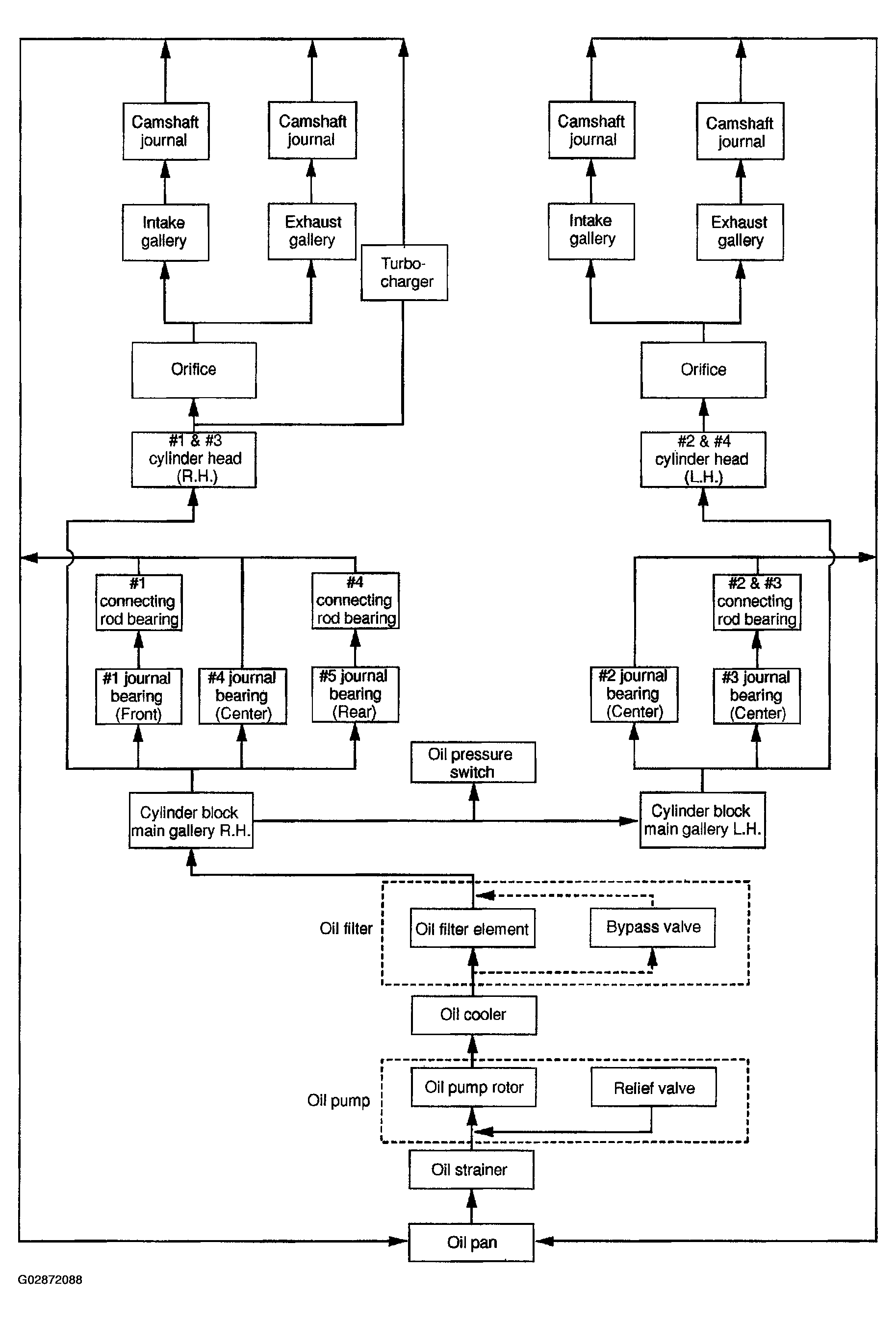

Fig 1: Identifying Engine Oil Flow Chart (Turbo)

G02872088

Courtesy of SUBARU OF AMERICA, INC.
