Home >> Subaru >> 2002 >> Impreza RS, Automatic >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> A/T Control Systems >> AT Shift Lock Solenoid and "P" Position Switch >> Inspection

AT Shift Lock Solenoid and "P" Position Switch: Inspection

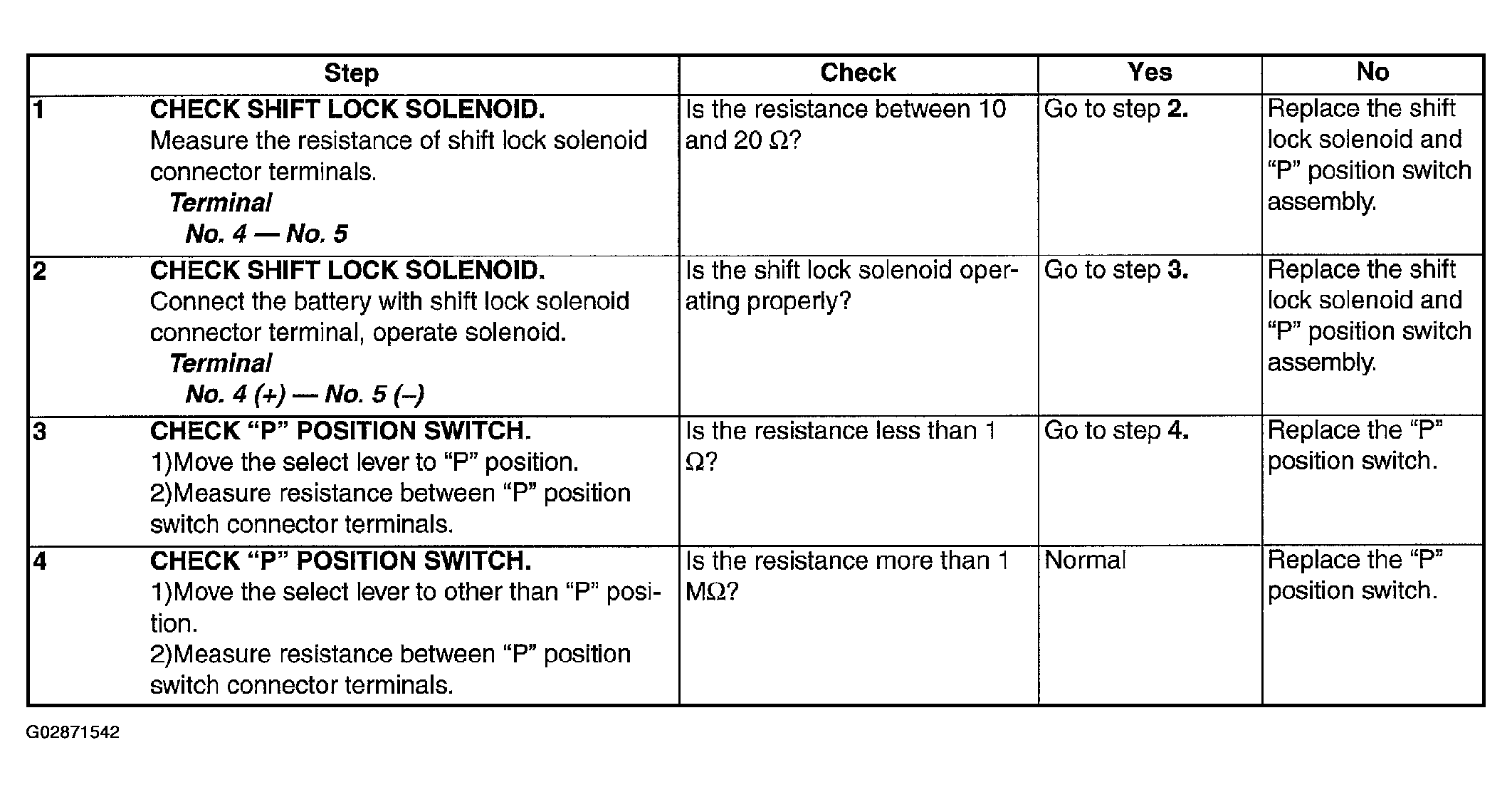

Fig 1: Inspection Table - AT Shift Lock Solenoid And Position Switch

G02871542

Courtesy of SUBARU OF AMERICA, INC.
