Shift Solenoids 1 And 2

These solenoids are located in the transmission hydraulic control valve. They are turned ON or OFF according to signals from the TCM. The gear positions are changed according to the ON and OFF condition of these solenoids.

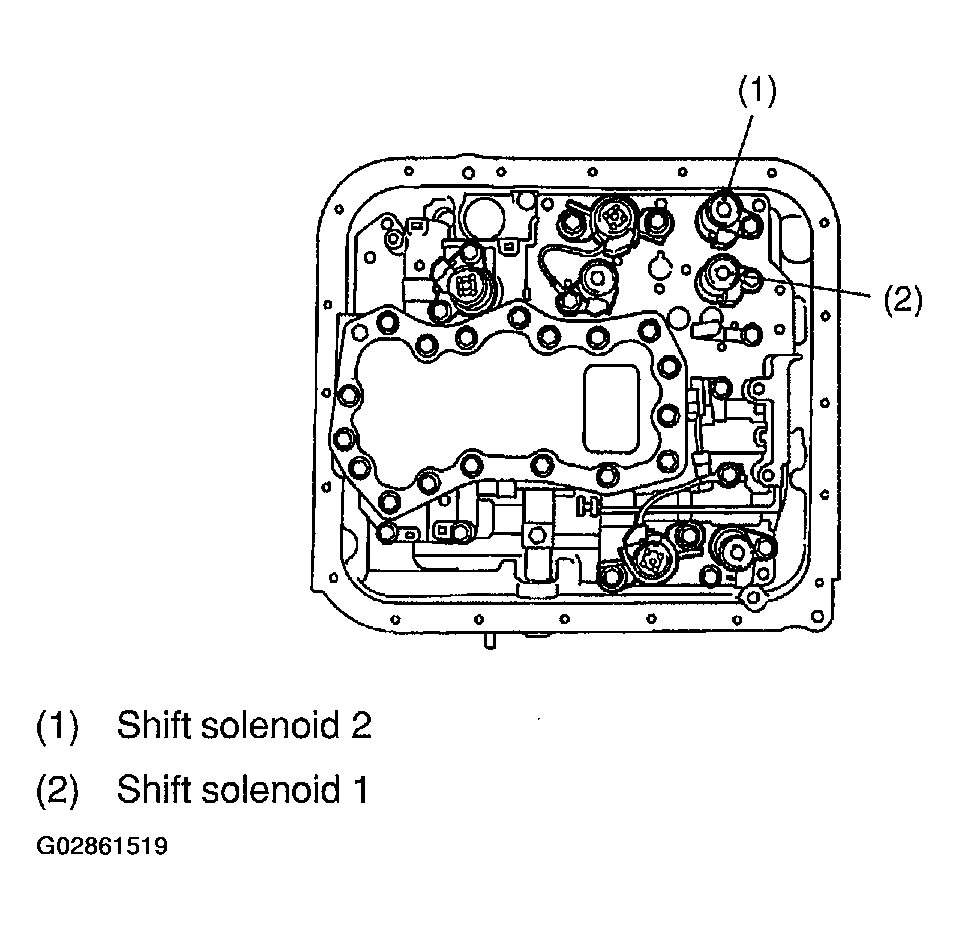

Fig 1: Identifying Shift Solenoids 1 & 2
G02861519Courtesy of SUBARU OF AMERICA, INC.
