Measurement Of Steering Effort
Measurement Of Steering Effort

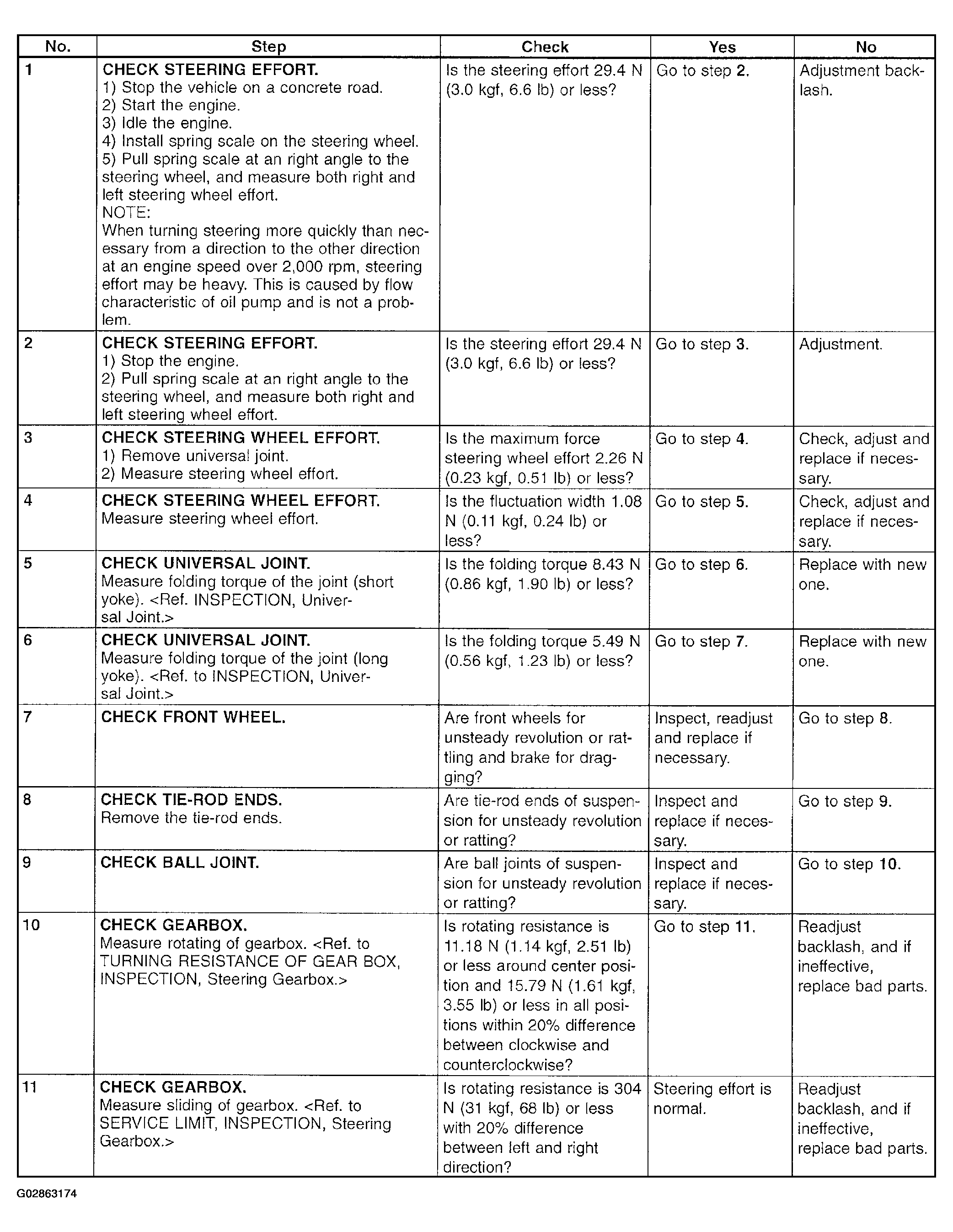

Fig 1: Measurement Of Steering Effort Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
