Special Tools

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

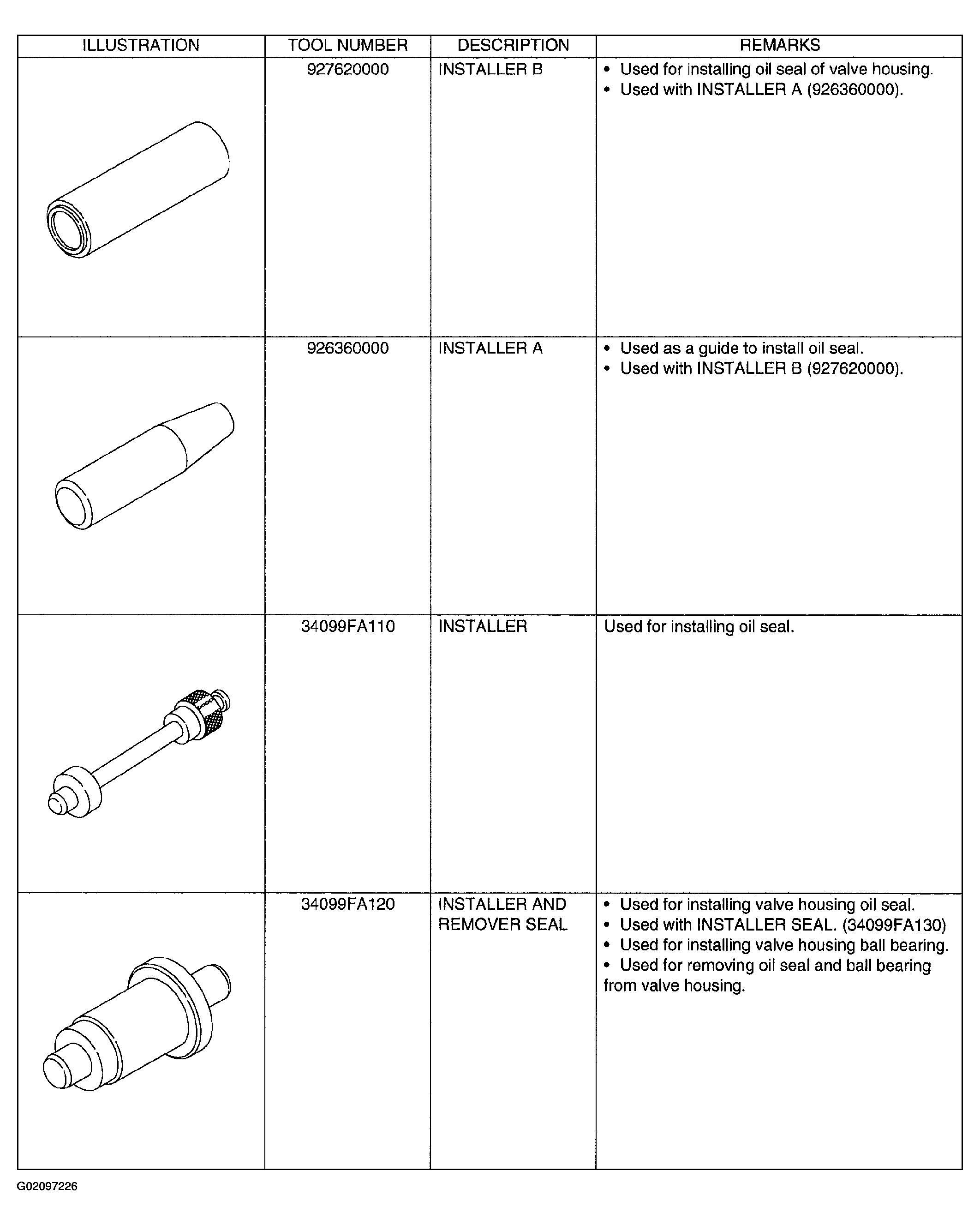

Fig 1: Identifying Special Tools (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

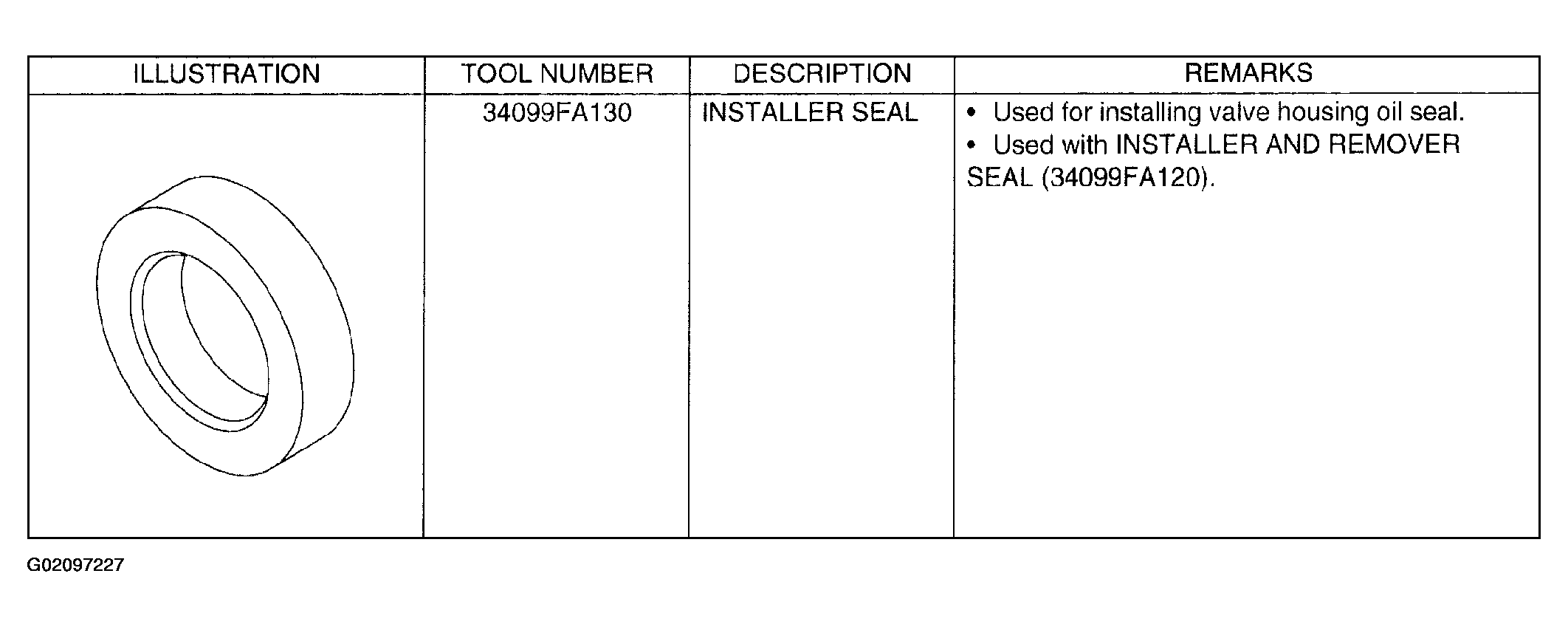

Fig 2: Identifying Special Tools (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

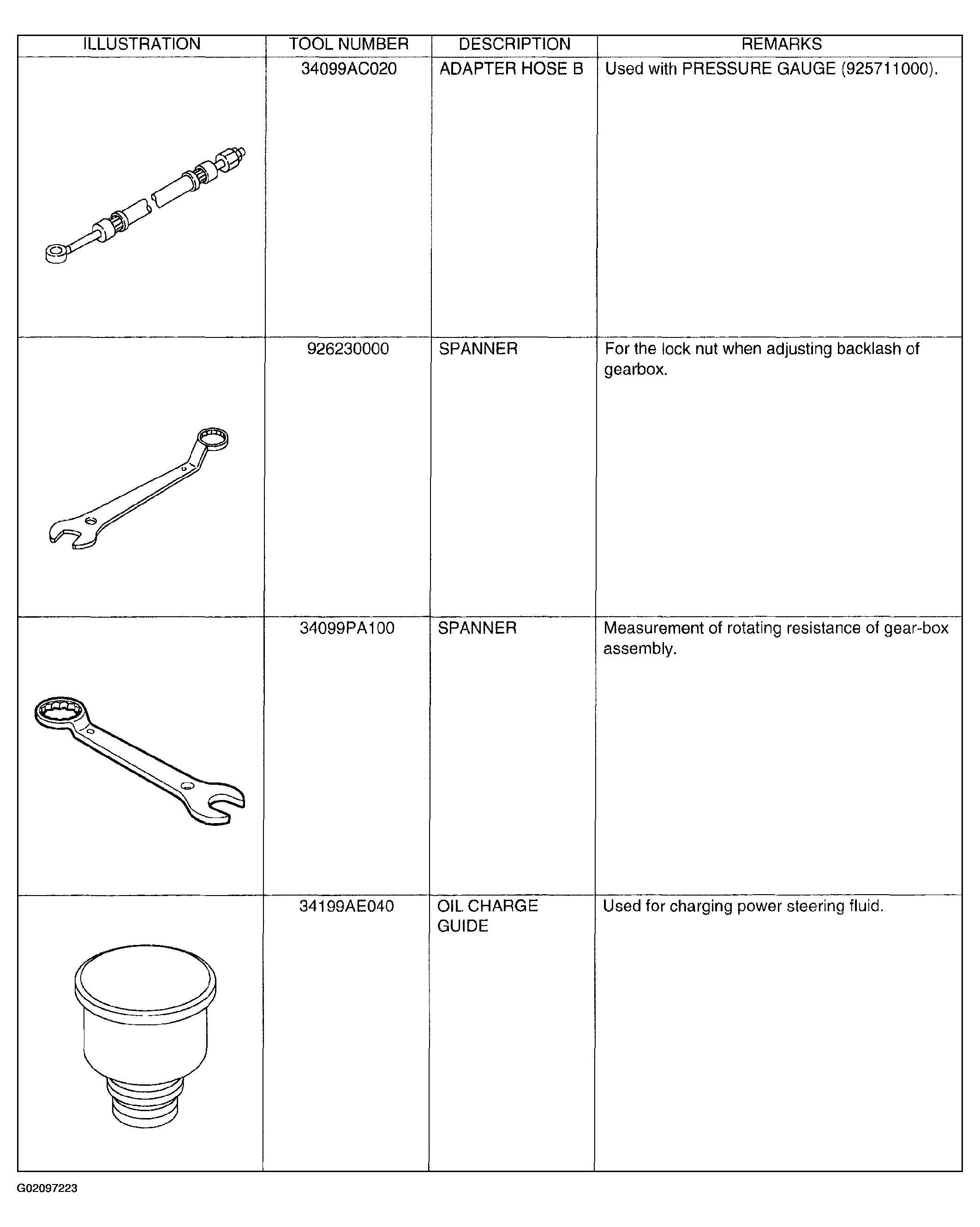

Fig 3: Identifying Special Tools (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

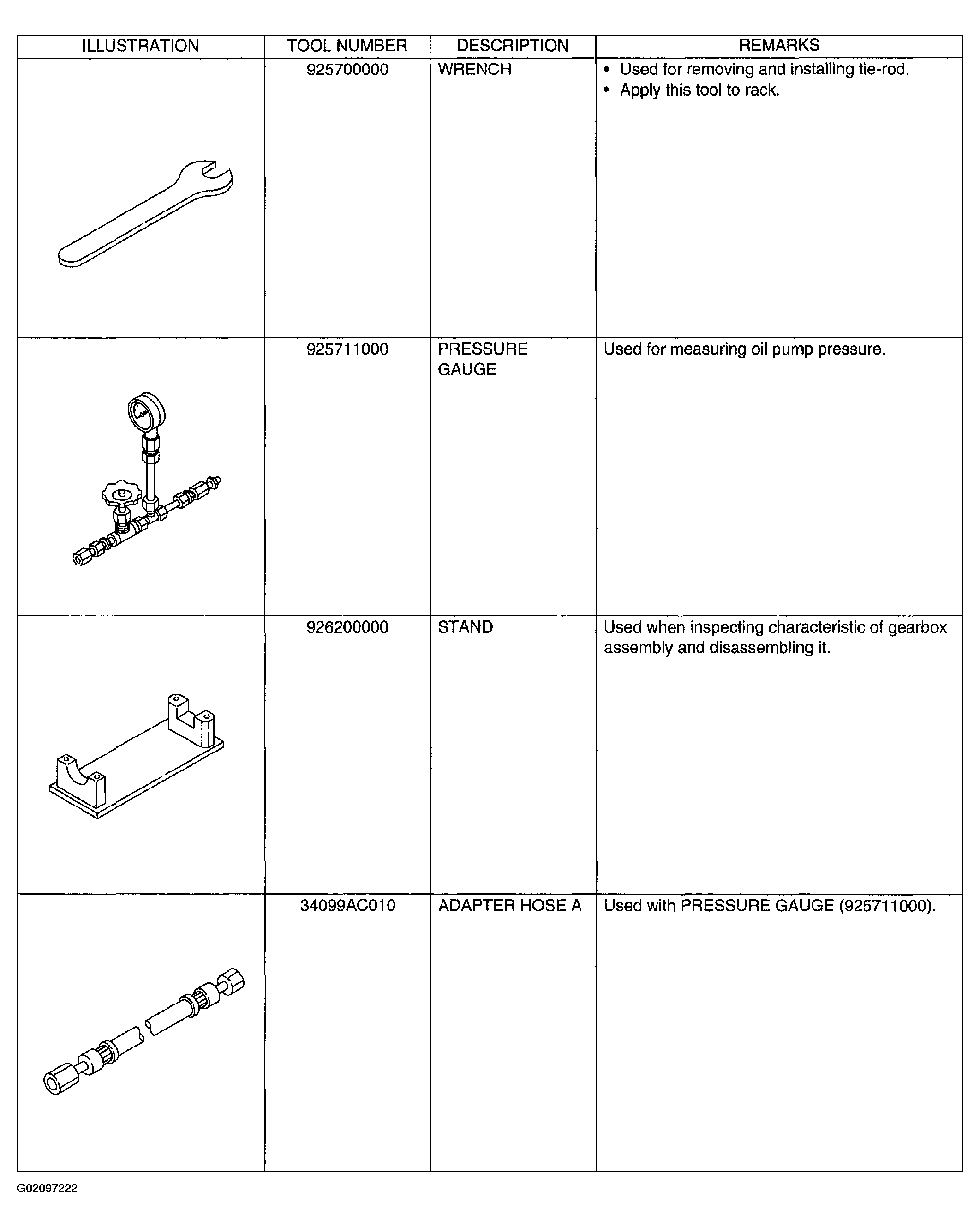

Fig 4: Identifying Special Tools (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

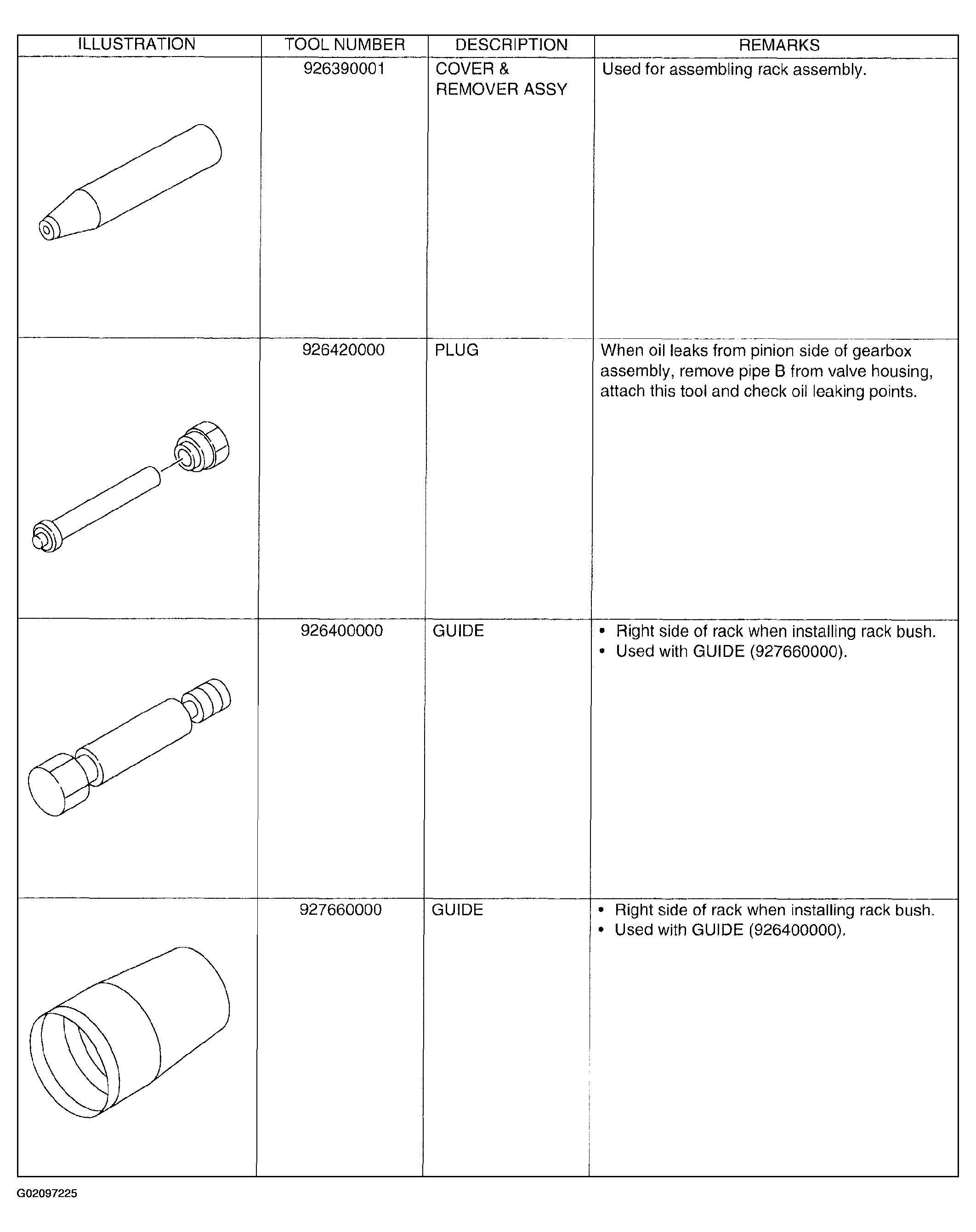

Fig 5: Identifying Special Tools (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

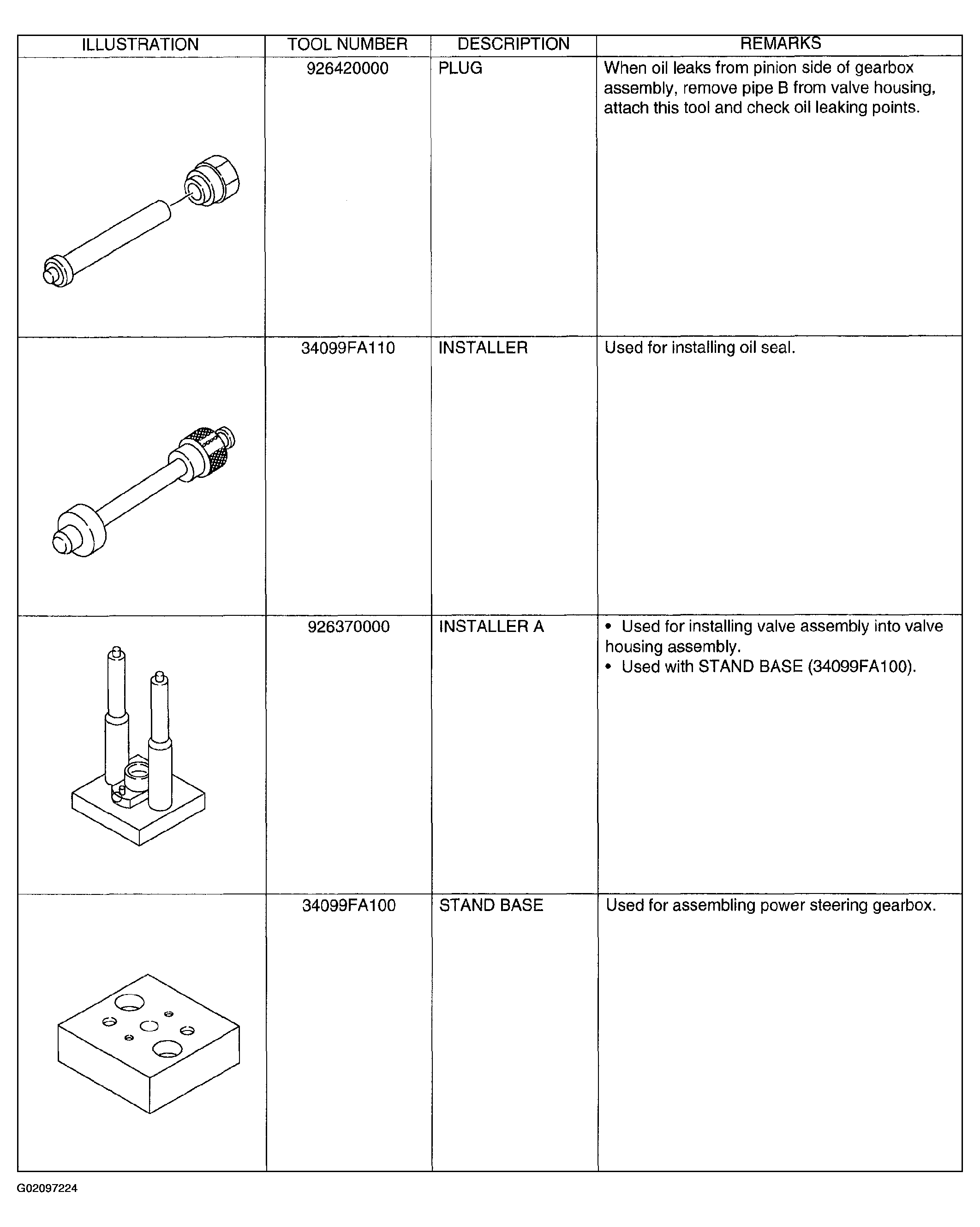

Fig 6: Identifying Special Tools (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
