Functions Of Sensors And Actuators

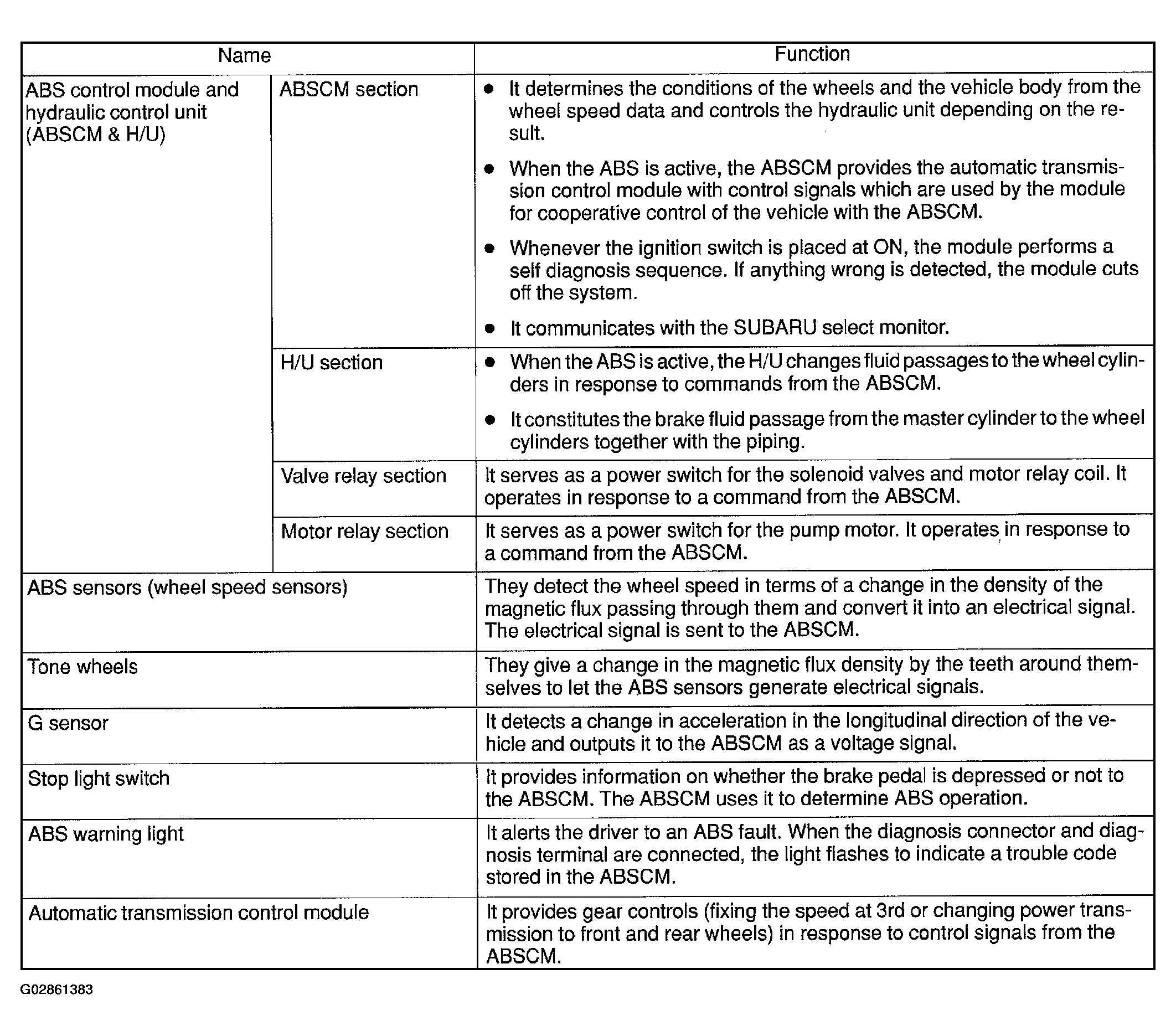

Fig 1: Functions Of Sensors & Actuators Chart
G02861383Courtesy of SUBARU OF AMERICA, INC.

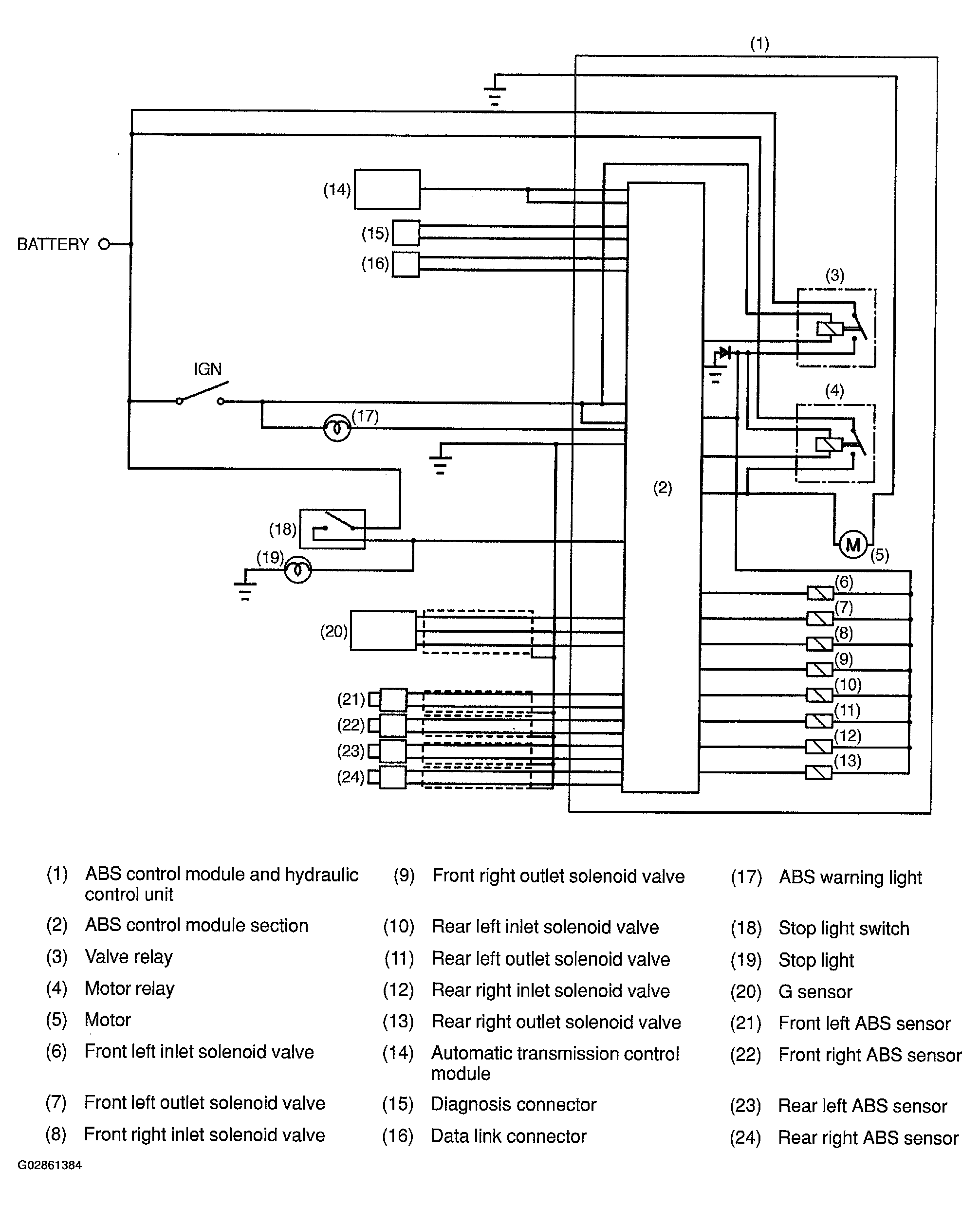

Fig 2: ABS Control Module & Hydraulic Unit (ABSCM & H/U) Circuits
G02861384Courtesy of SUBARU OF AMERICA, INC.
