Diagnostic Procedures:

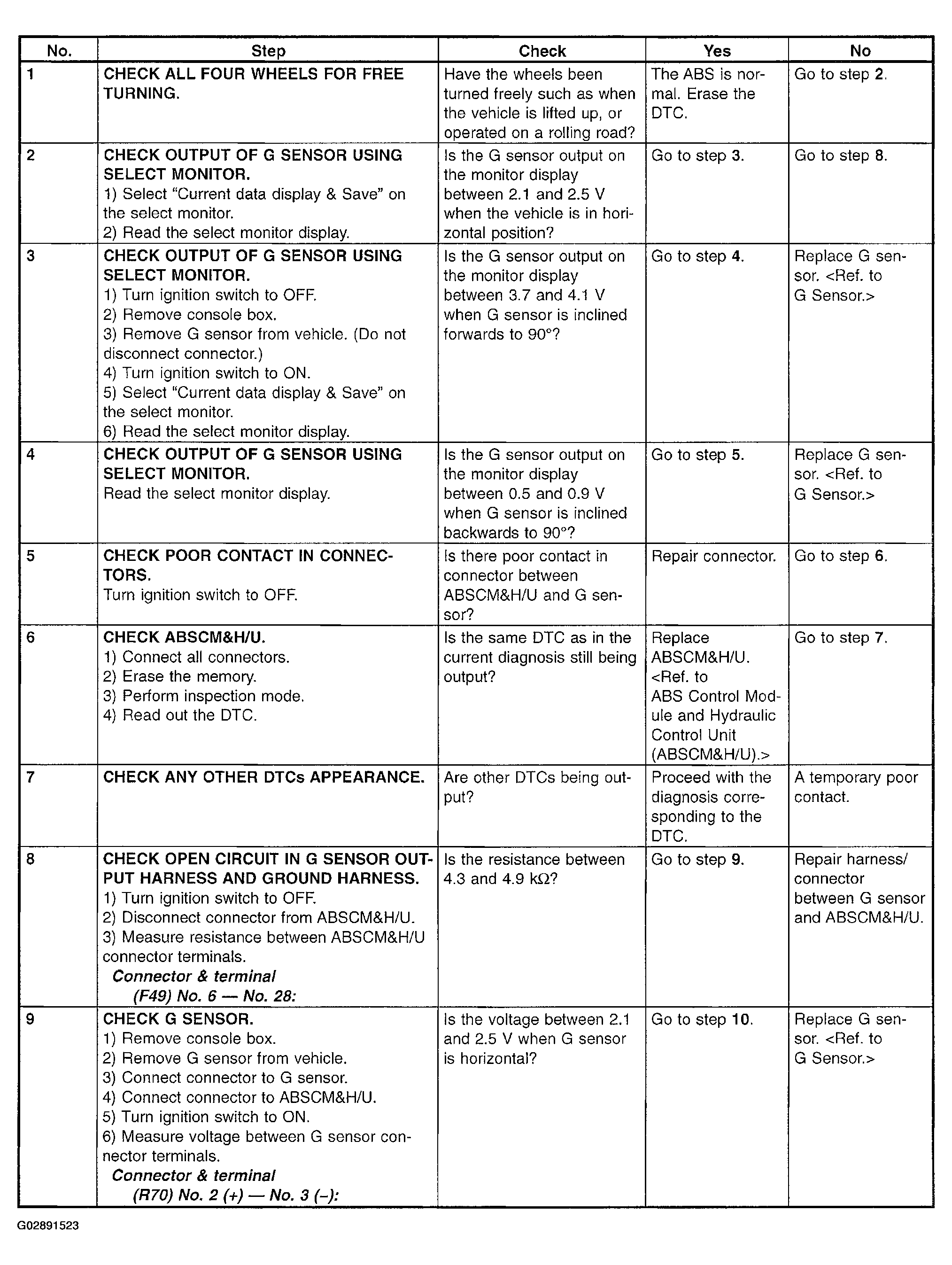

Fig 1: Detection Of G Sensor Stick Diagnostic Procedure Chart (1 Of 2)
G02891523Courtesy of SUBARU OF AMERICA, INC.

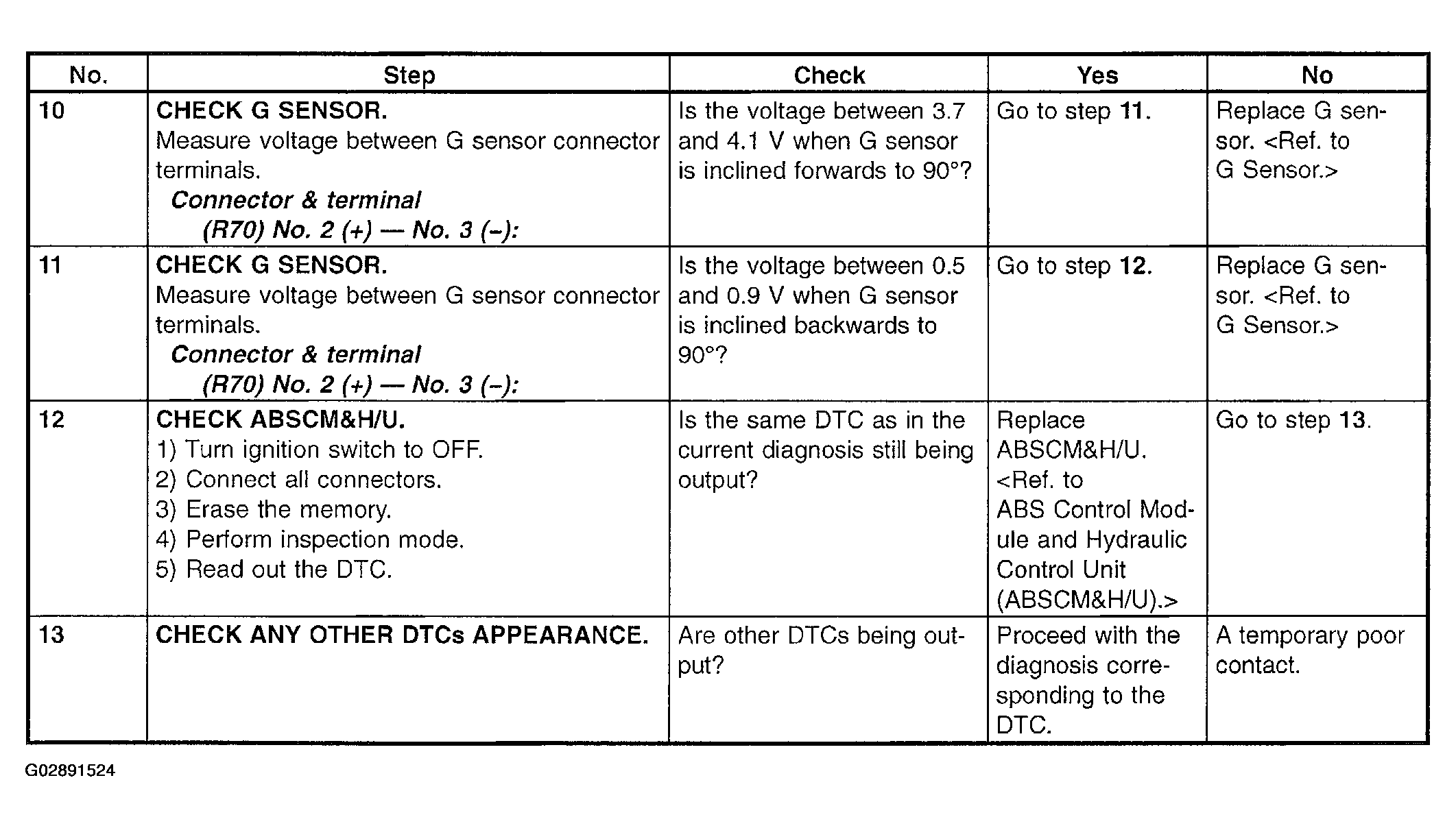

Fig 2: Detection Of G Sensor Stick Diagnostic Procedure Chart (2 Of 2)
G02891524Courtesy of SUBARU OF AMERICA, INC.
