Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs Diagnostics >> Diagnostics Procedure with Subaru Select Monitor >> DTC 56: Abnormal G Sensor High Output >> Diagnostic Procedures:

Diagnostic Procedures:

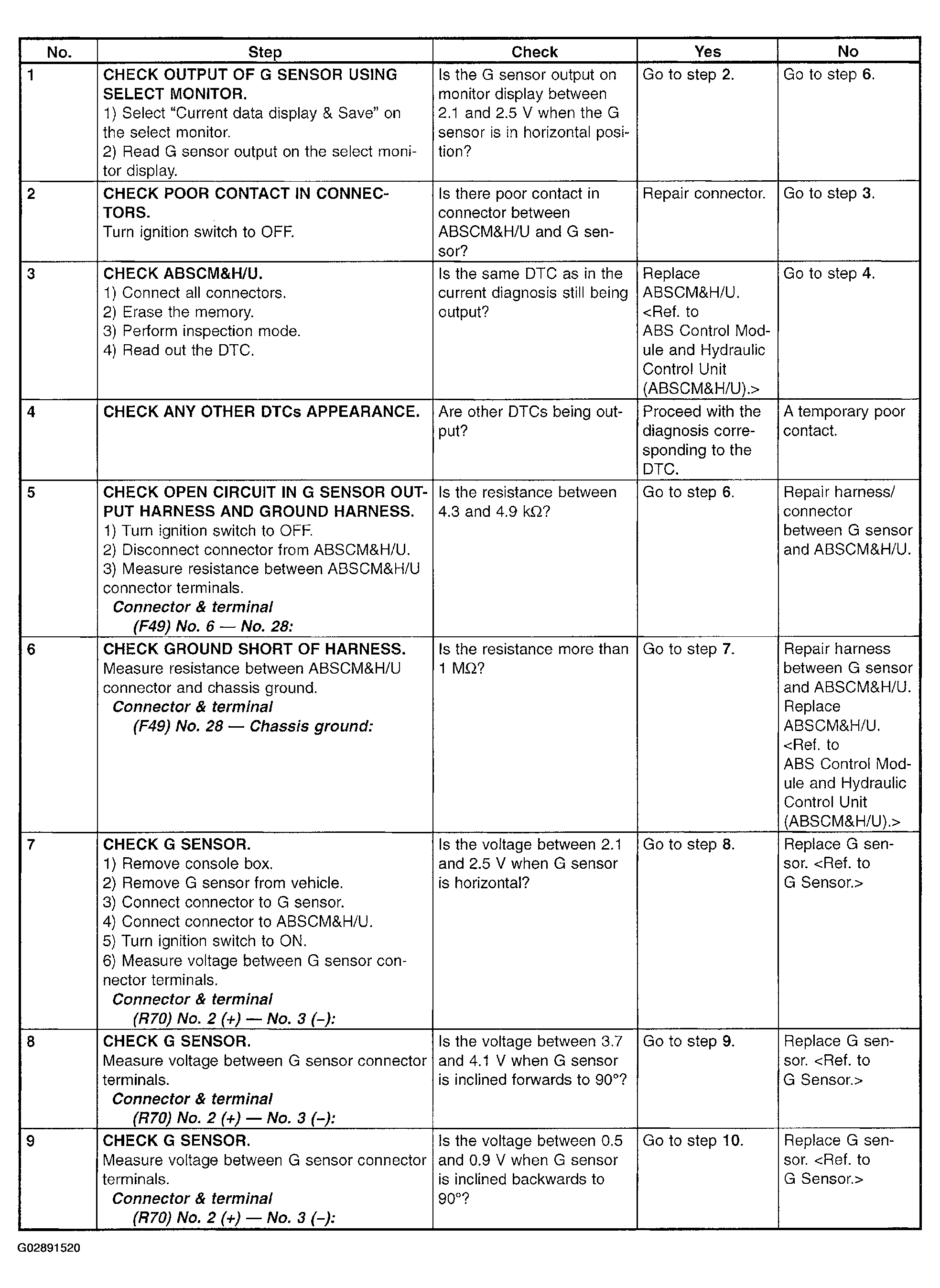

Fig 1: Abnormal G Sensor High Output Diagnostic Procedure Chart (1 Of 2)
G02891520Courtesy of SUBARU OF AMERICA, INC.

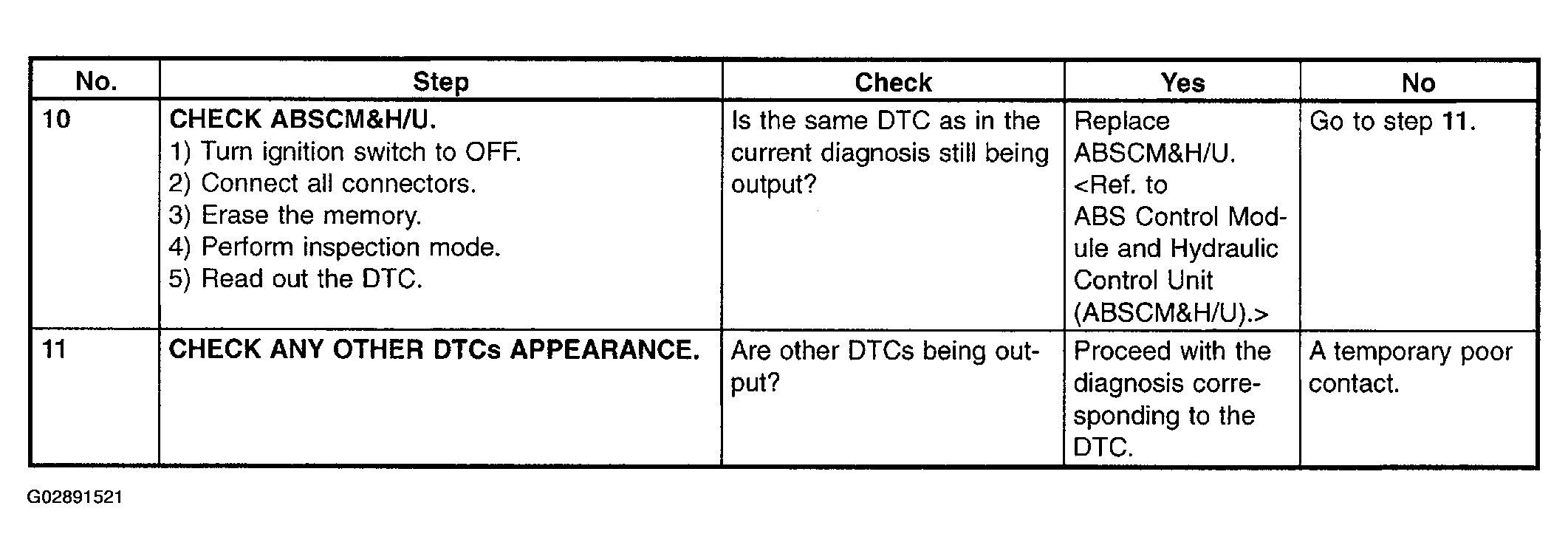

Fig 2: Abnormal G Sensor High Output Diagnostic Procedure Chart (2 Of 2)
G02891521Courtesy of SUBARU OF AMERICA, INC.
