Check Horn Operation

CHECK HORN OPERATION

No. Step Check Yes No
1  CHECK HORN OPERATION.  Make sure the horn sounds when switch is pushed. Does the horn sound? Go to step 2. Check the horn circuit

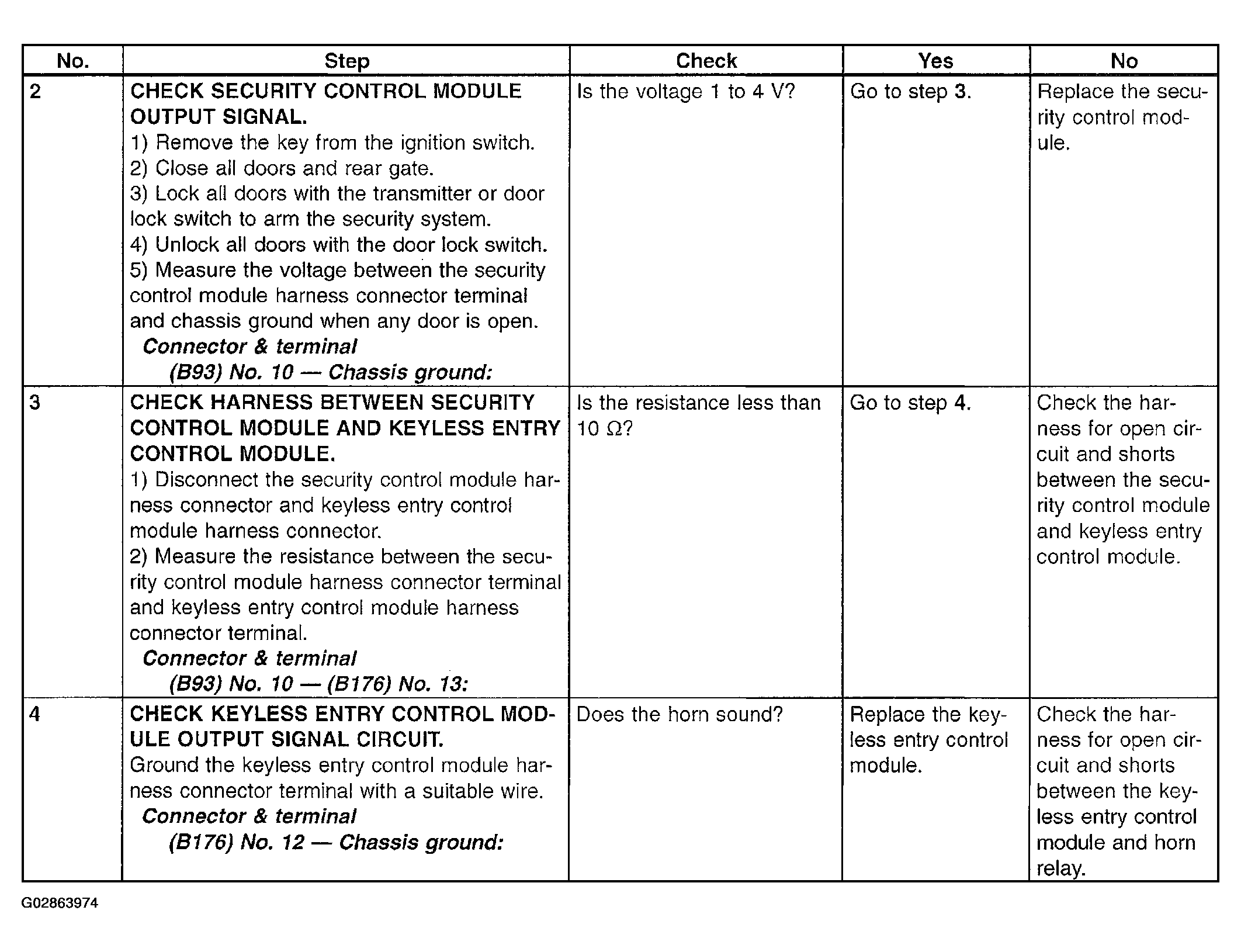

Fig 1: Checking Horn Operation Chart
G02863974Courtesy of SUBARU OF AMERICA, INC.
