Symptom Chart (Power Door Lock)

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

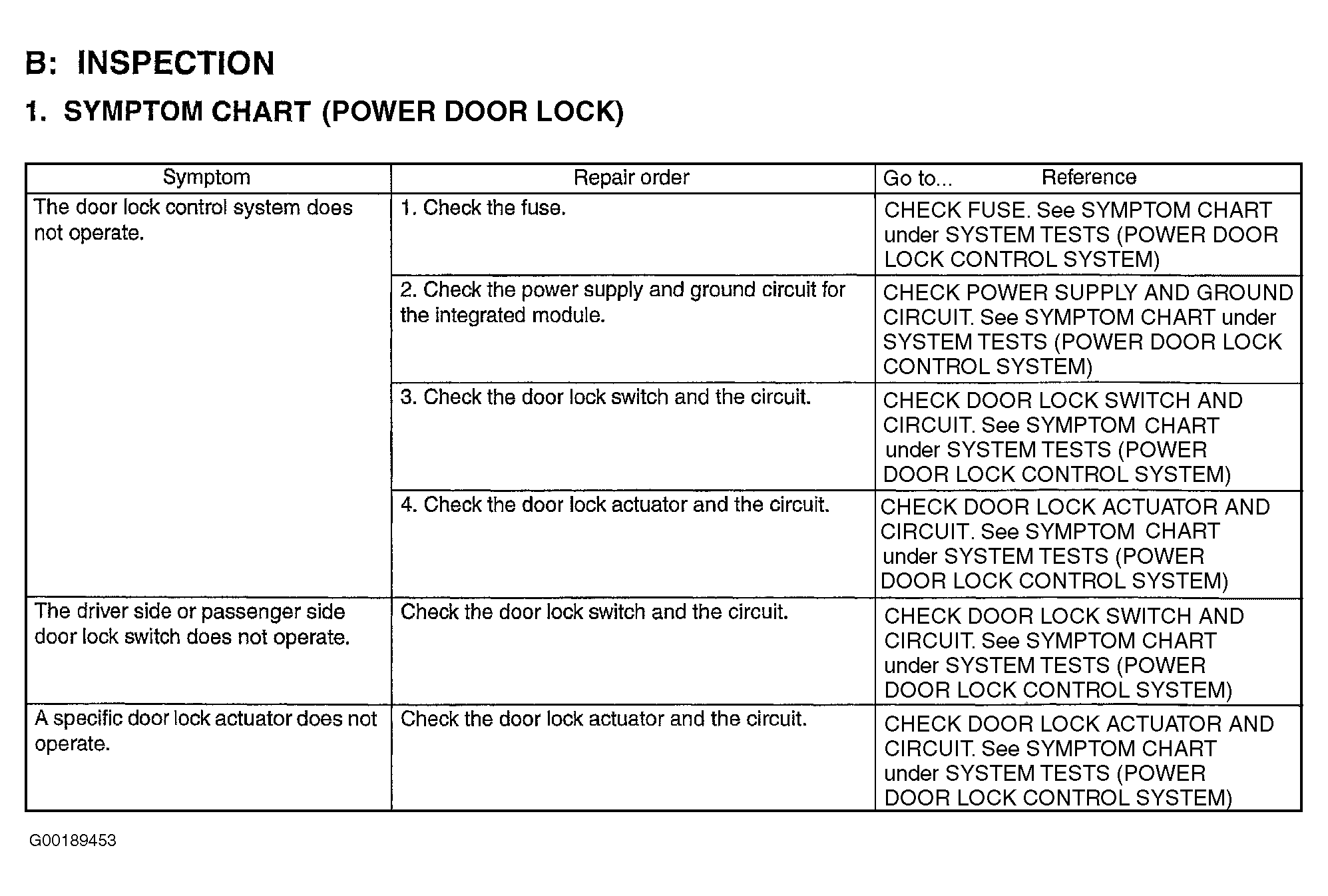

Fig 1: Power Door Lock Symptom Chart
G00189453Courtesy of SUBARU OF AMERICA, INC.
