Check Power Supply & Ground Circuit

WARNING: This page is about a different car, the 2002 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

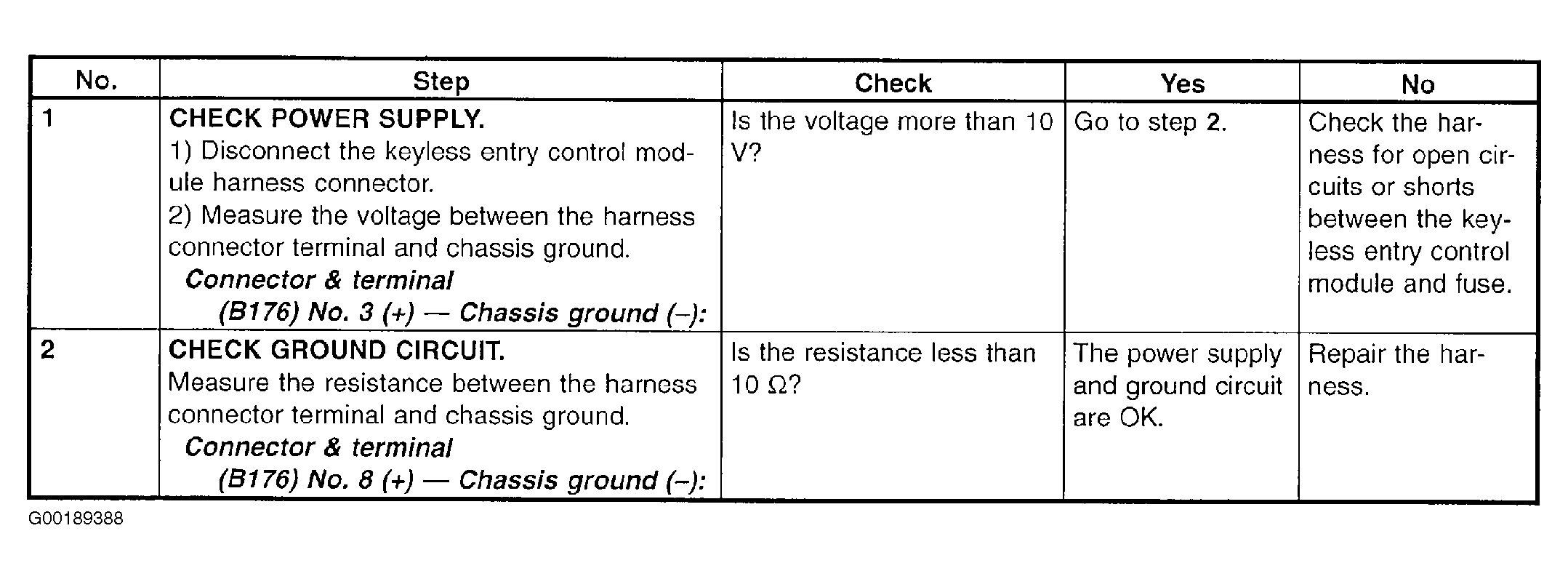

Fig 1: Check Power Supply & Ground Circuit (Testing Procedure)
G00189388Courtesy of SUBARU OF AMERICA, INC.
