Fuel Pump: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal. Do the following:

NOTE: Replace the gaskets with new ones.
  1. Ensure the sealing portion is free from fuel or foreign particles before installation.
  2. Tighten the nuts in alphabetical sequence shown in figure to specified torque.
    1. Tightening torque:  4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

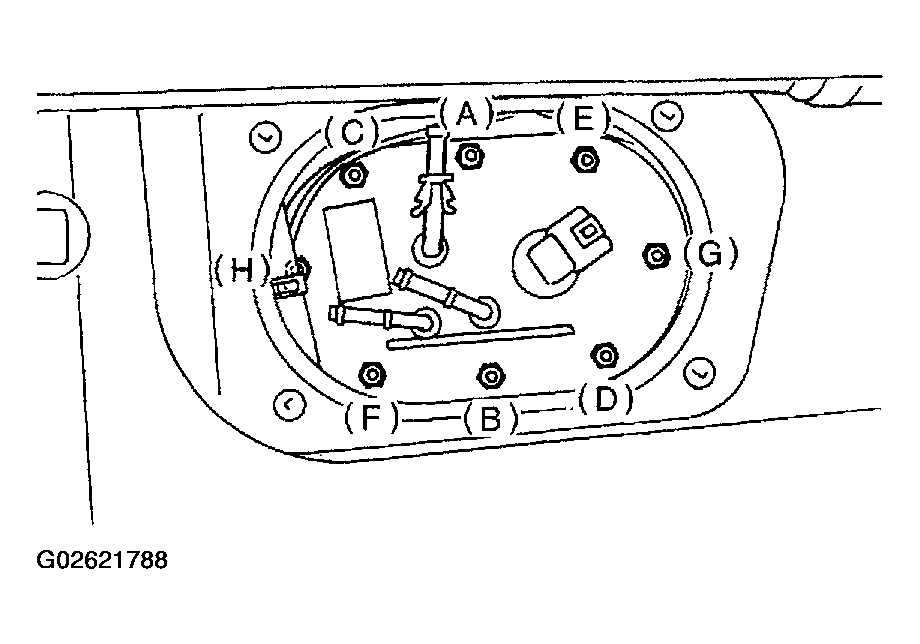

    Fig 1: Tightening Nuts In Alphabetical Sequence
    G02621788Courtesy of SUBARU OF AMERICA, INC.
