Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (Diagnostics) >> Diagnostics Chart With Select Monitor >> Trouble Code 48 Erroneous Communication From EGI To VDC >> Diagnostic Chart

Diagnostic Chart

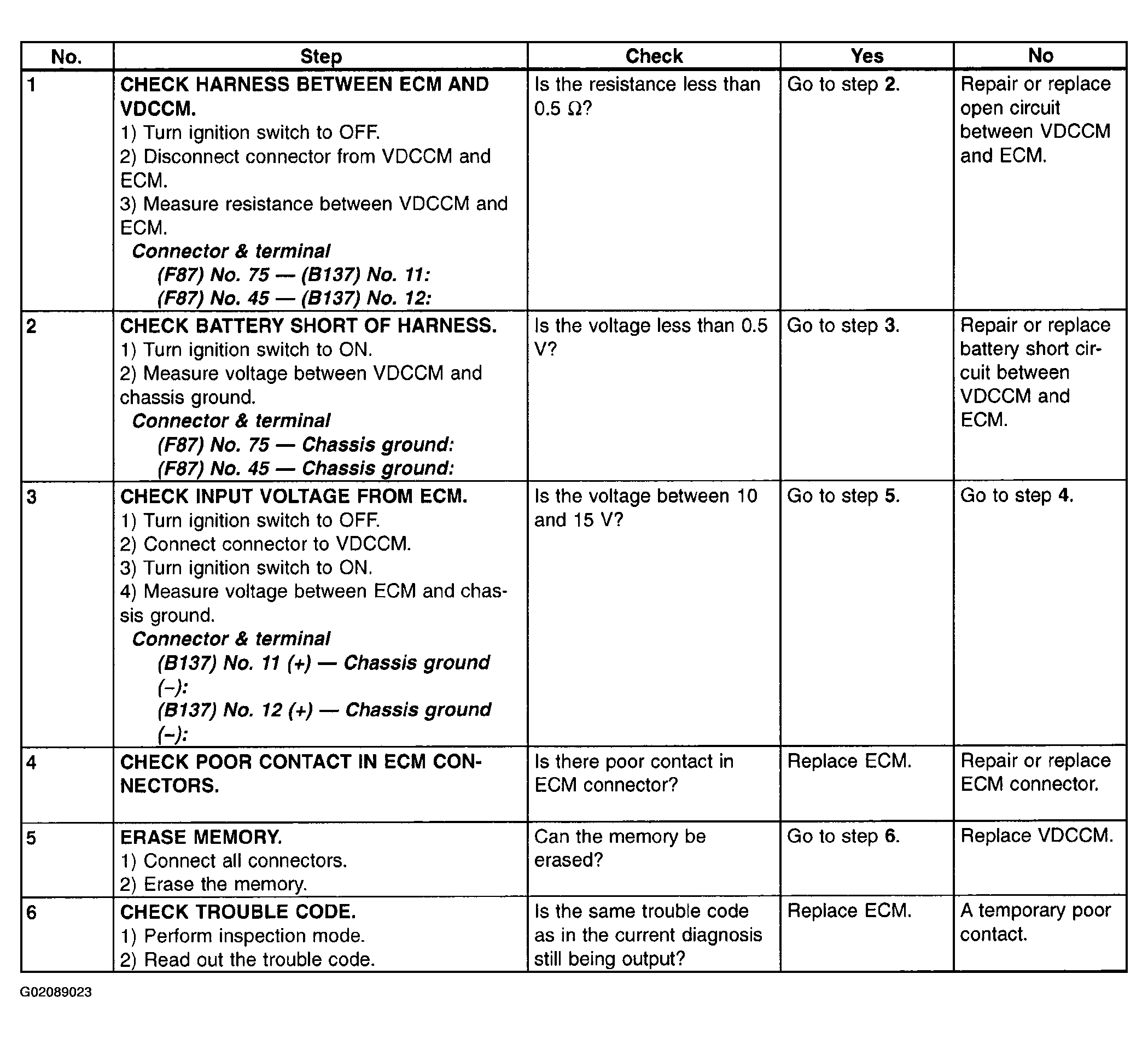

Fig 1: Diagnostic Chart - Trouble Code 48 - With Select Monitor (Erroneous Communication From EGI To VDC)

G02089023
