Trouble Code Does Not Appear: Wiring Diagram

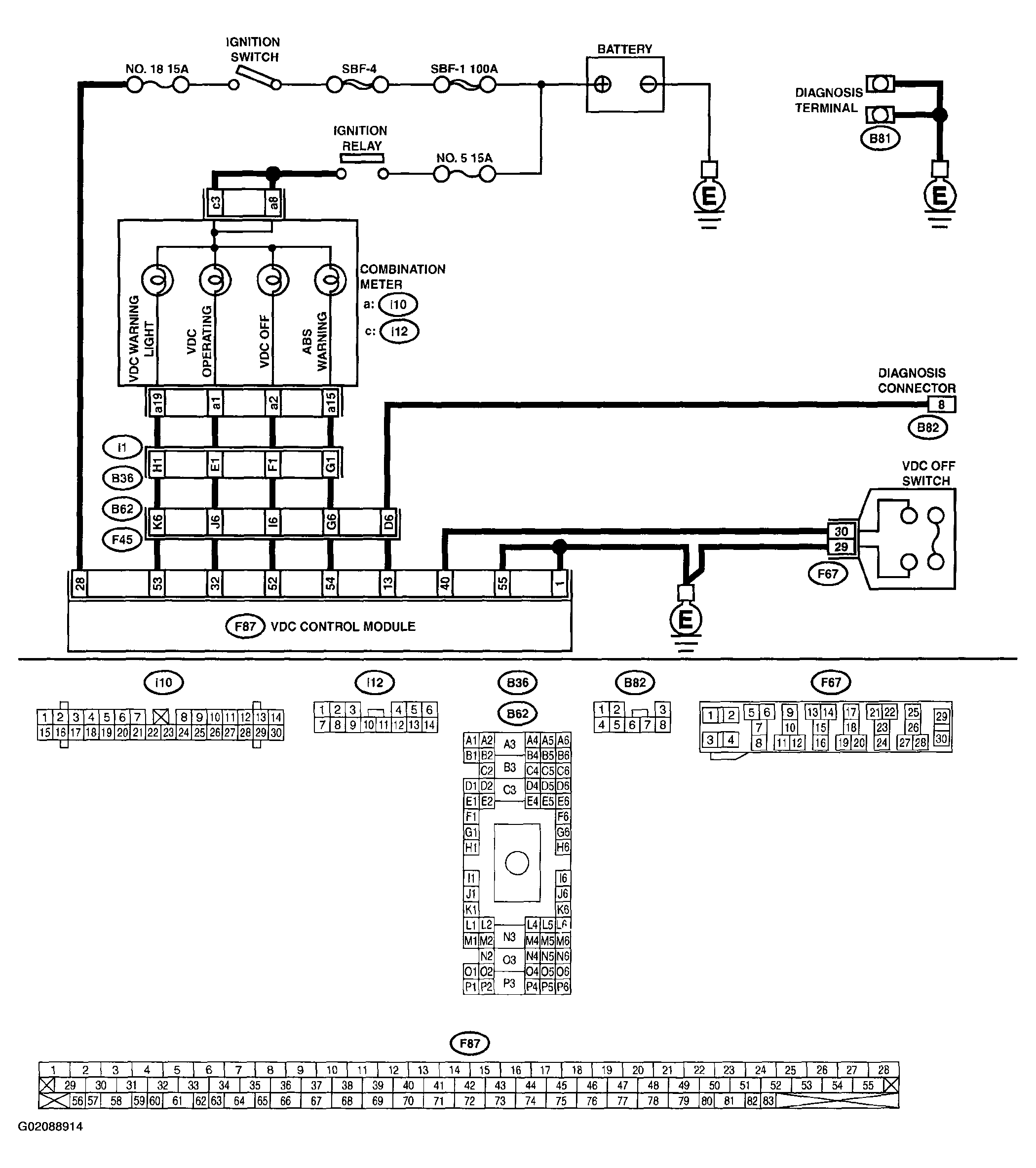

Fig 1: Wiring Diagram - Trouble Code Does Not Appear - With Diagnostic Connector

G02088914
