Code 74: Abnormal Pressure Sensor: Wiring Diagram

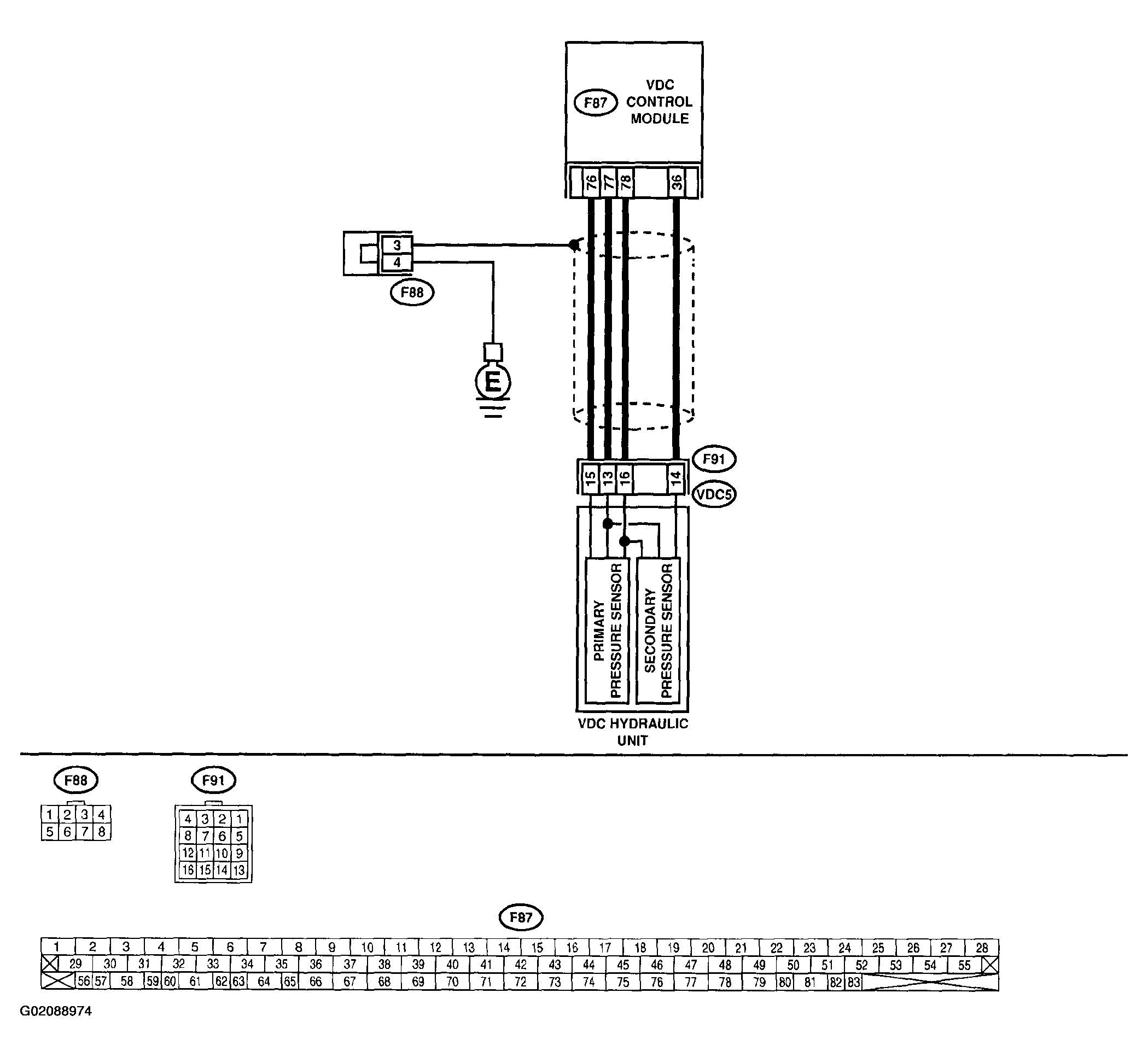

Fig 1: Wiring Diagram - Trouble Code 74 - With Diagnostic Connector

G02088974
