Code 73: Abnormal Lateral G Sensor: Wiring Diagram

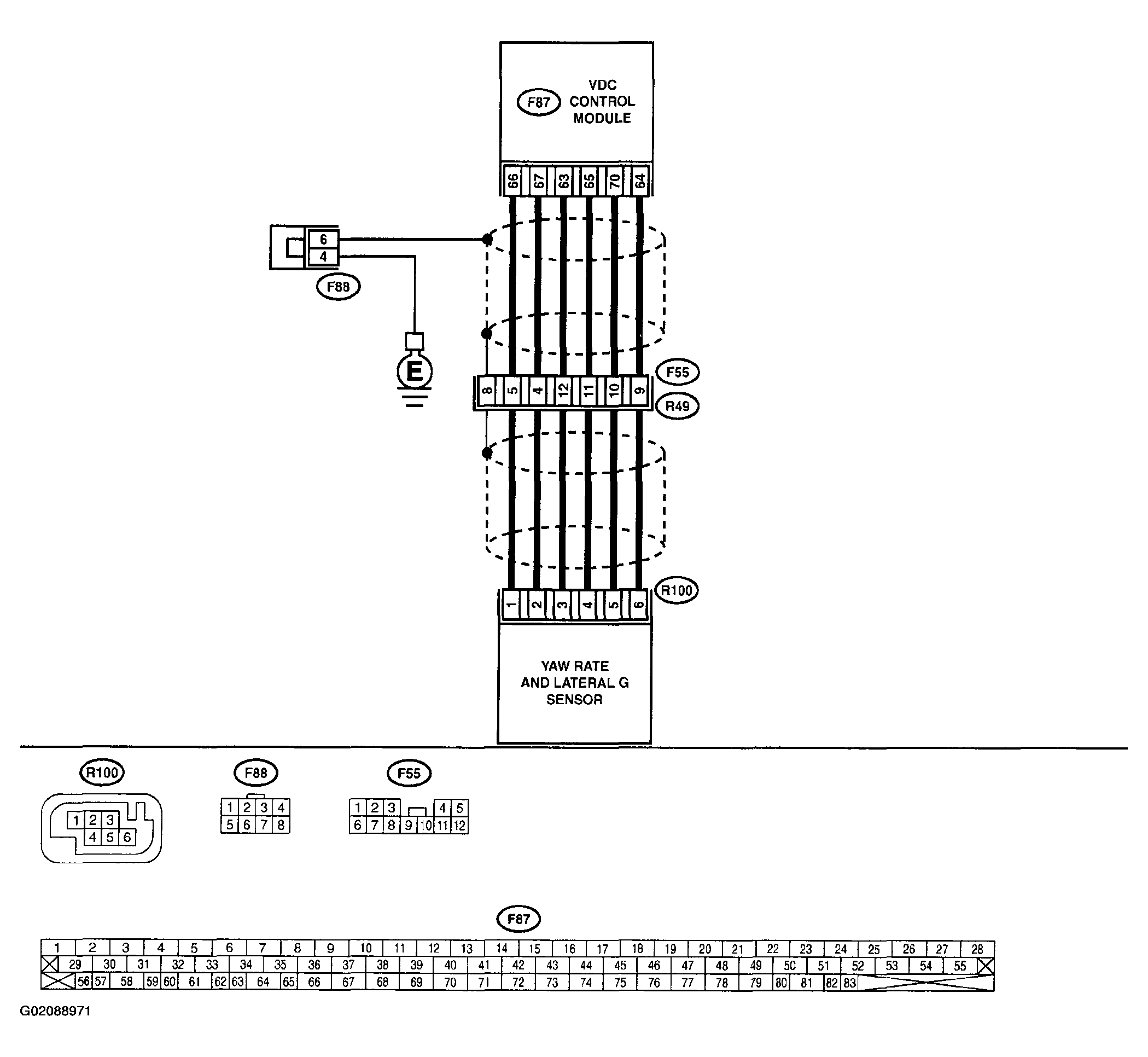

Fig 1: Wiring Diagram - Trouble Code 73 - With Diagnostic Connector

G02088971
