Diagnostic Chart

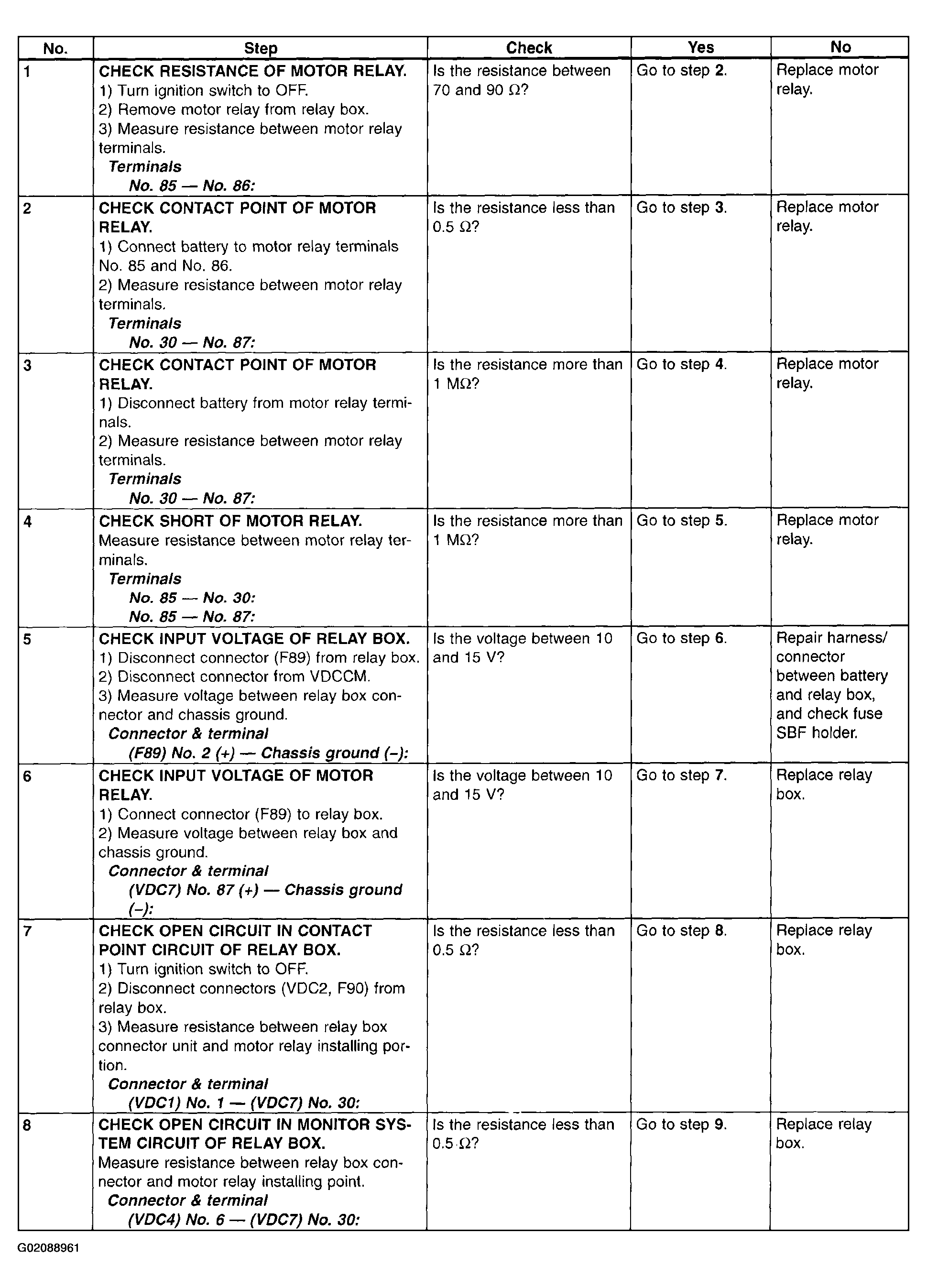

Fig 1: Diagnostic Chart - Trouble Code 52 - With Diagnostic Connector (1 Of 3)
G02088961

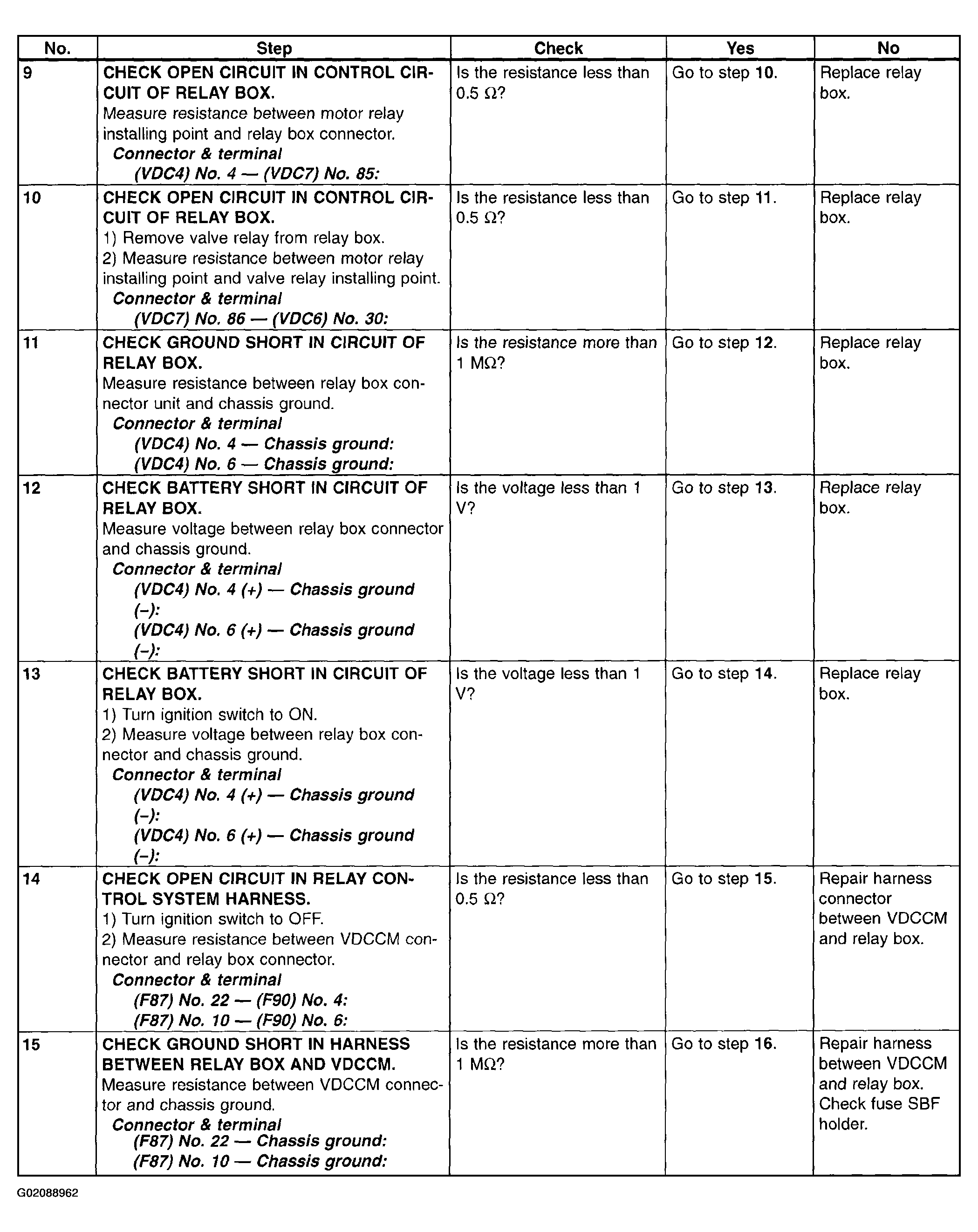

Fig 2: Diagnostic Chart - Trouble Code 52 - With Diagnostic Connector (2 Of 3)
G02088962

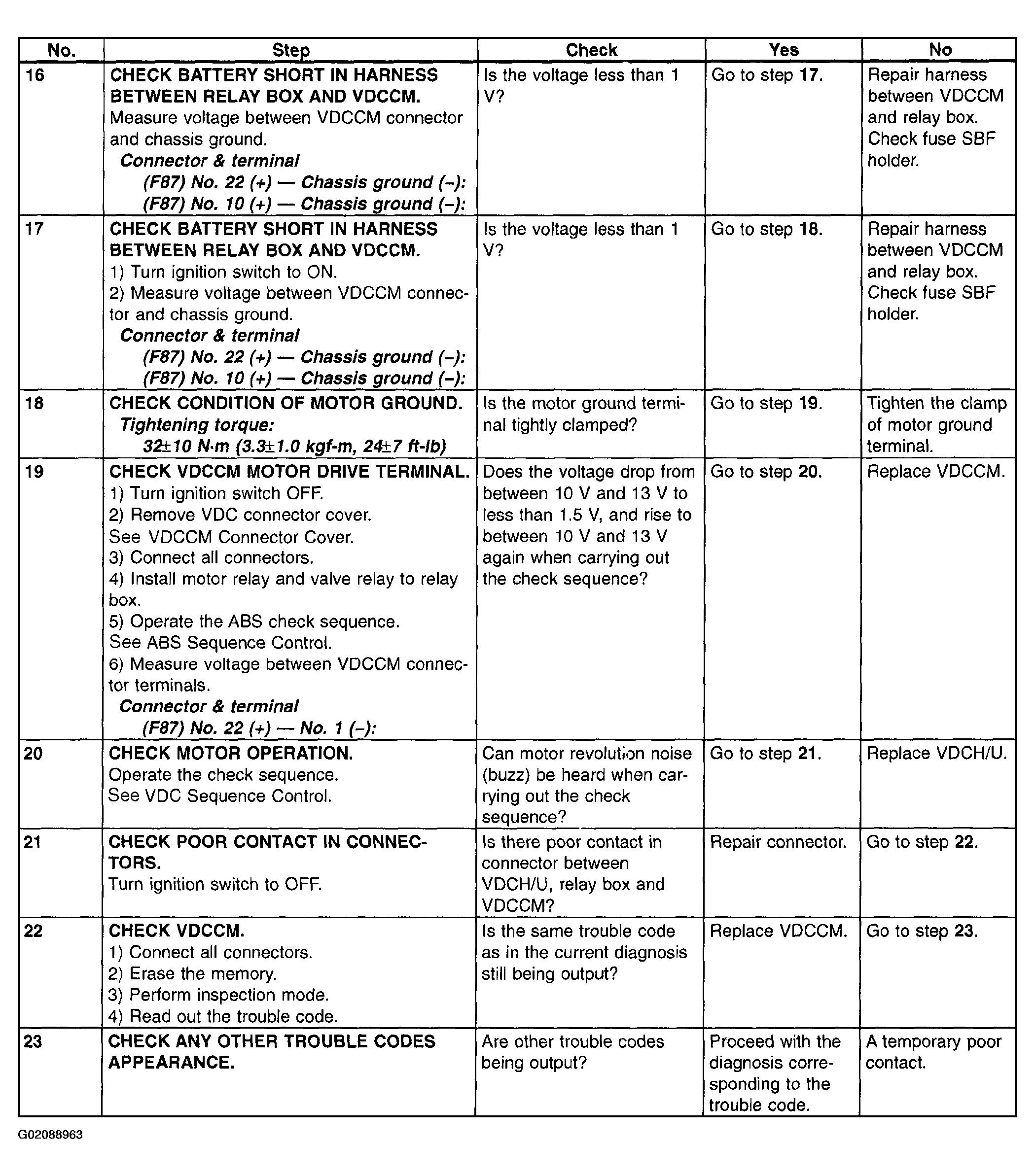

Fig 3: Diagnostic Chart - Trouble Code 52 - With Diagnostic Connector (3 Of 3)
G02088963
