Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Braking System (Diagnostics) >> List of Diagnostics Trouble Code >> With SUBARU Select Monitor

With SUBARU Select Monitor

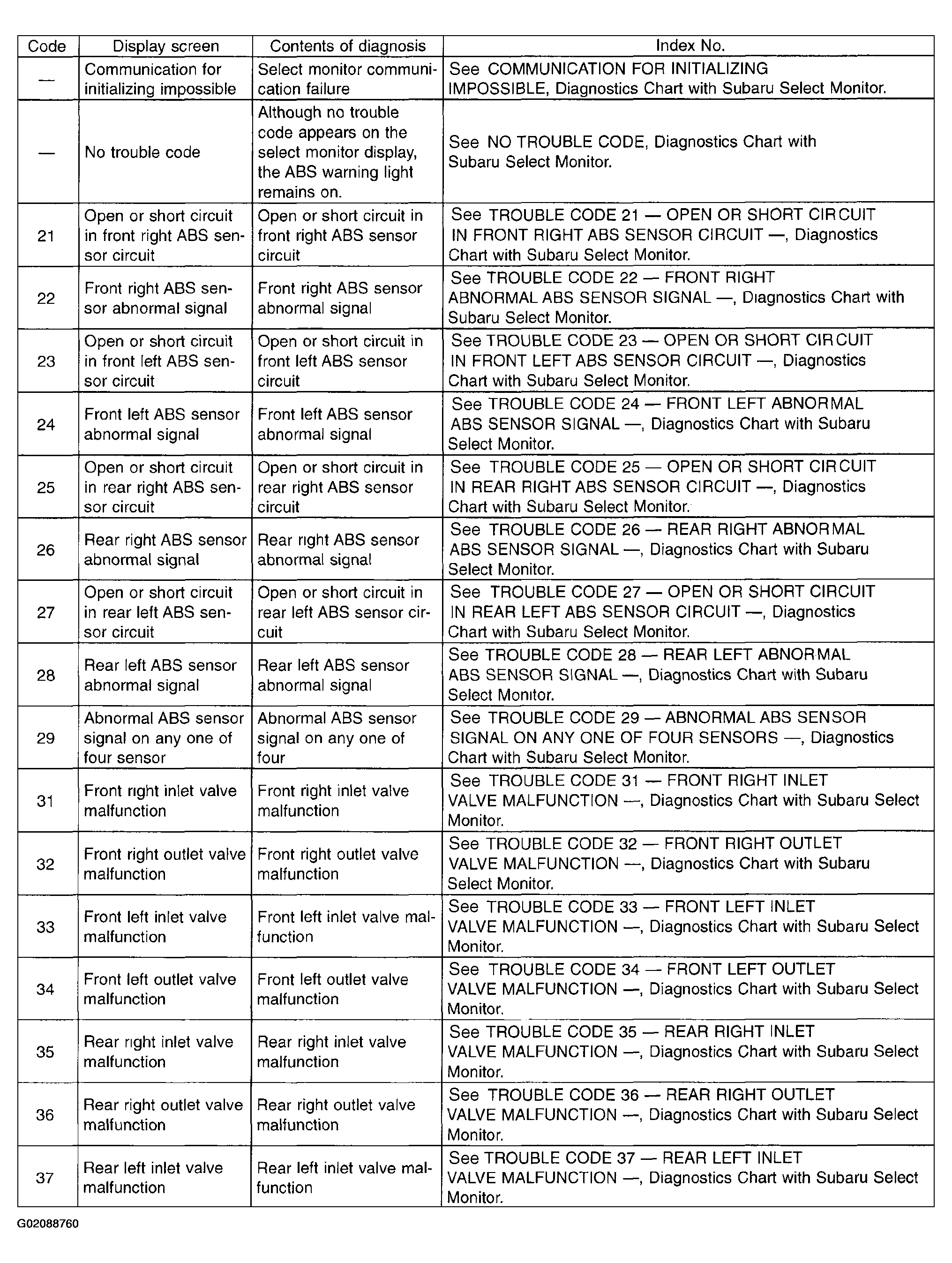

Fig 1: Diagnostics Trouble Code Chart (With Subaru Select Monitor - 1 Of 2)

G02088760

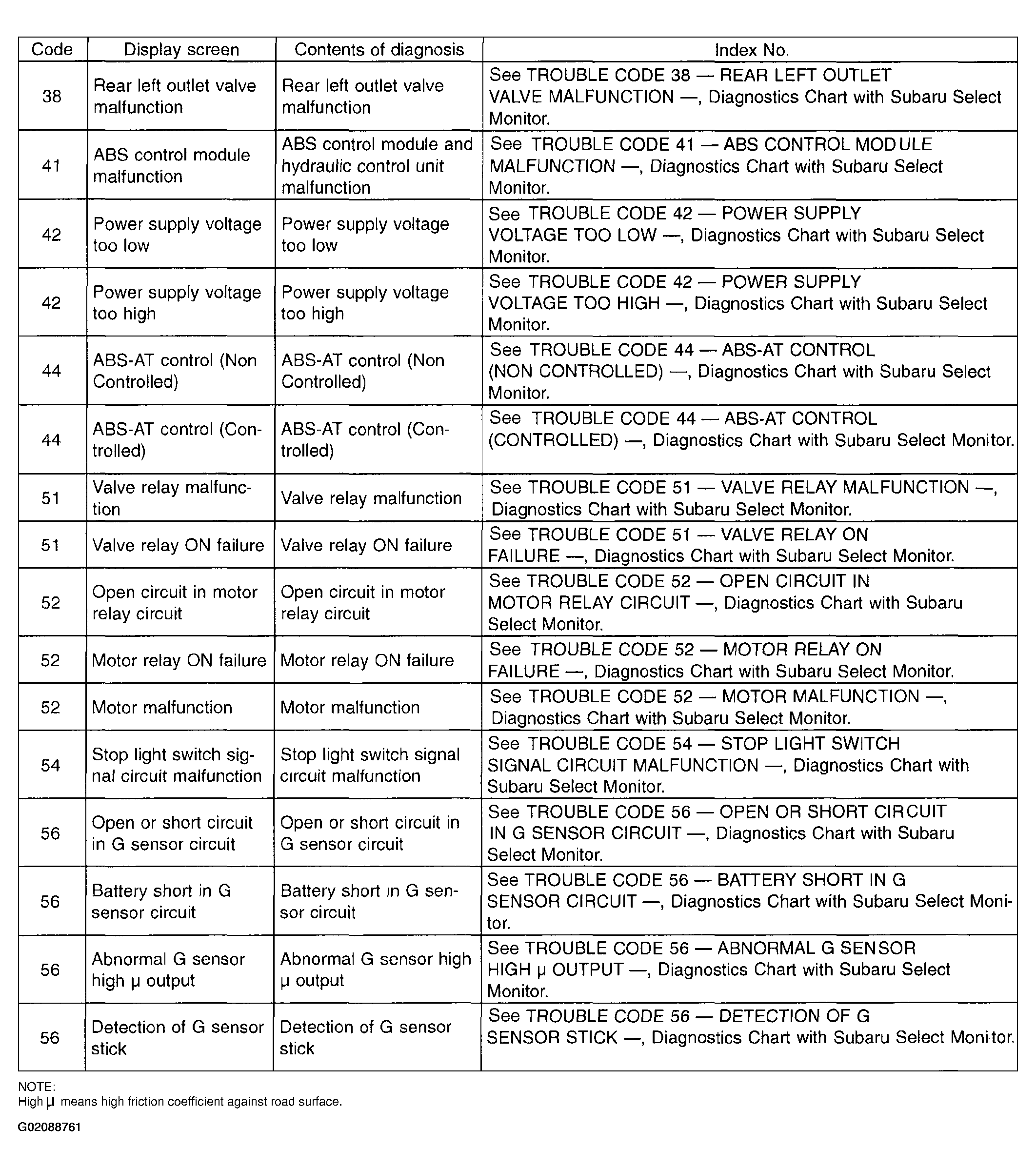

Fig 2: Diagnostics Trouble Code Chart (With Subaru Select Monitor - 2 Of 2)

G02088761
