Diagnostic Chart

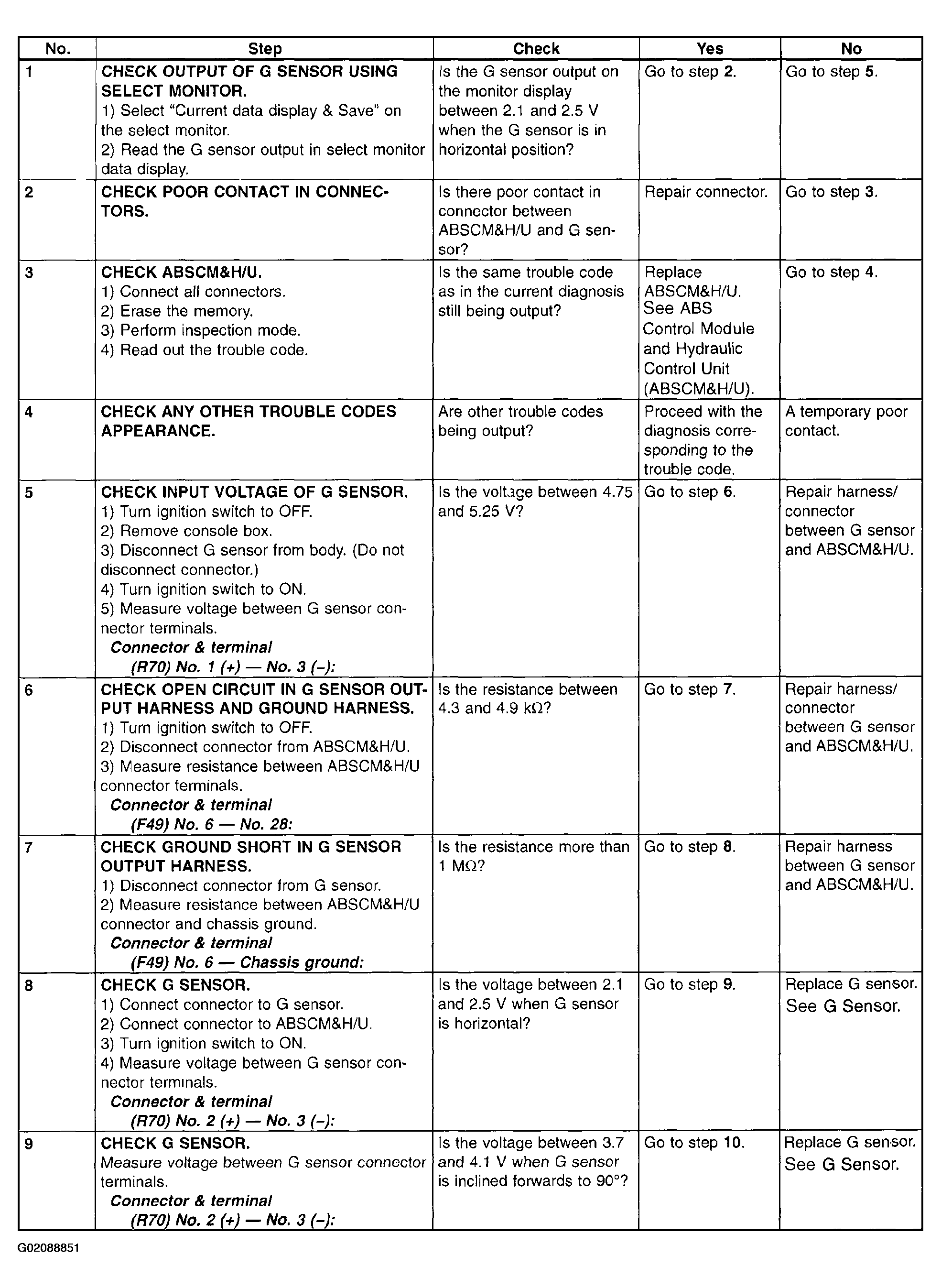

Fig 1: Trouble Code 56 - Open Or Short Circuit In G Sensor Circuit - Diagnostic Chart (1 Of 2)
G02088851

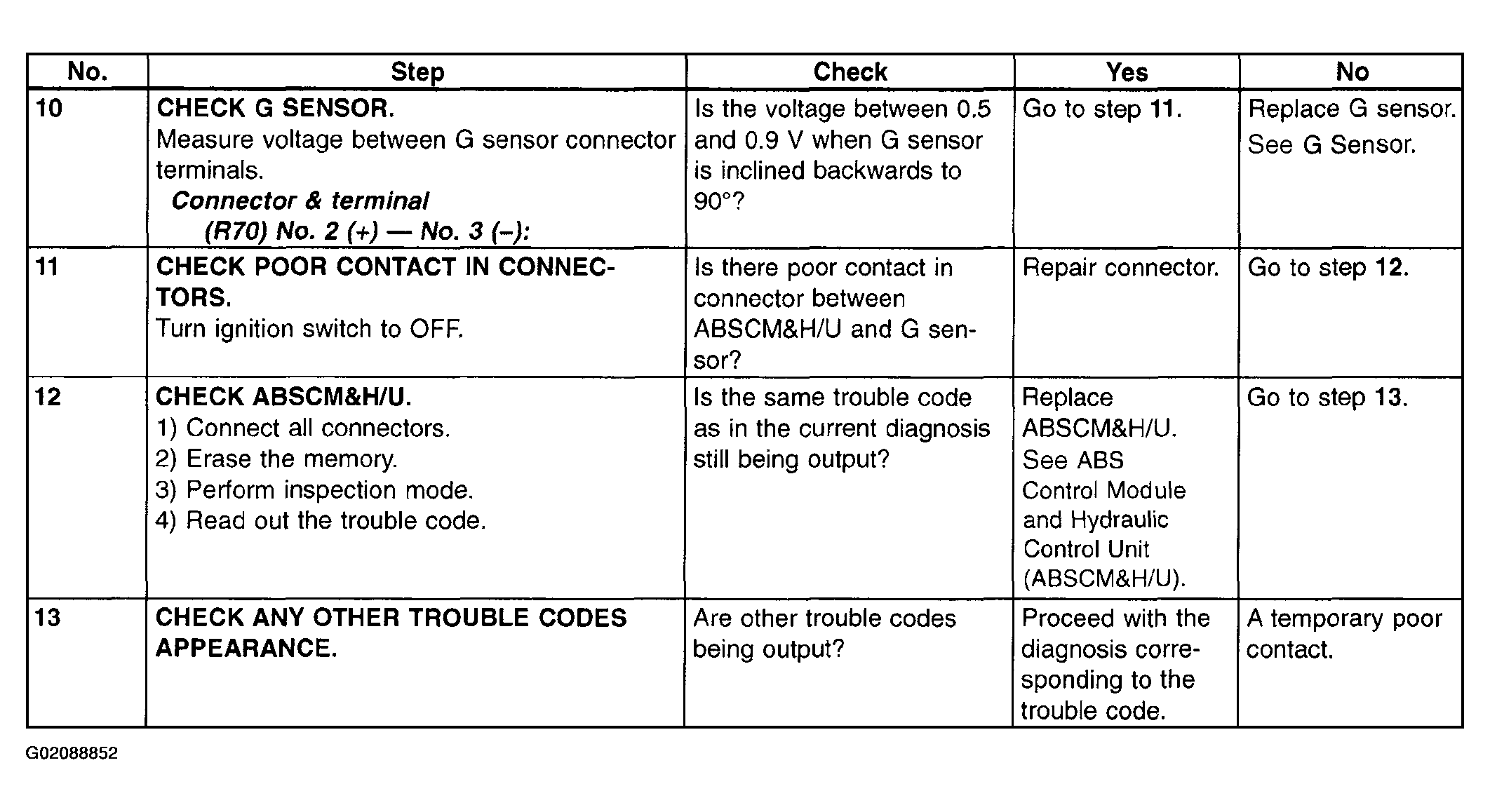

Fig 2: Trouble Code 56 - Open Or Short Circuit In G Sensor Circuit - Diagnostic Chart (2 Of 2)
G02088852
