Trouble Code 56 - Detection Of G Sensor Stick: Wiring Diagram

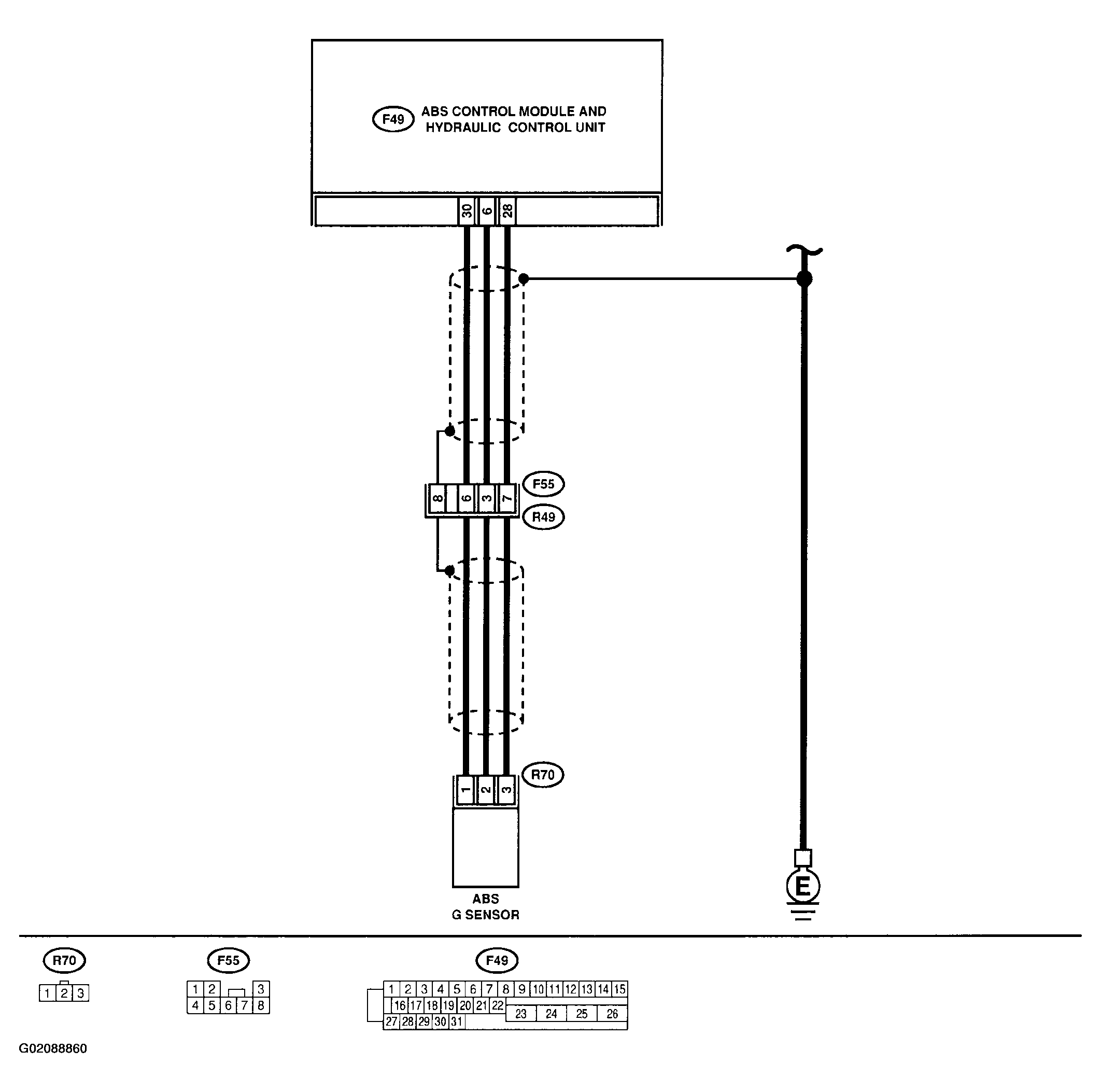

Fig 1: Trouble Code 56 - Detection Of G Sensor Stick - Wiring Diagram
