Trouble Code 56 - Detection Of G Sensor Stick
>>
DIANOSTIC Chart
DIANOSTIC Chart

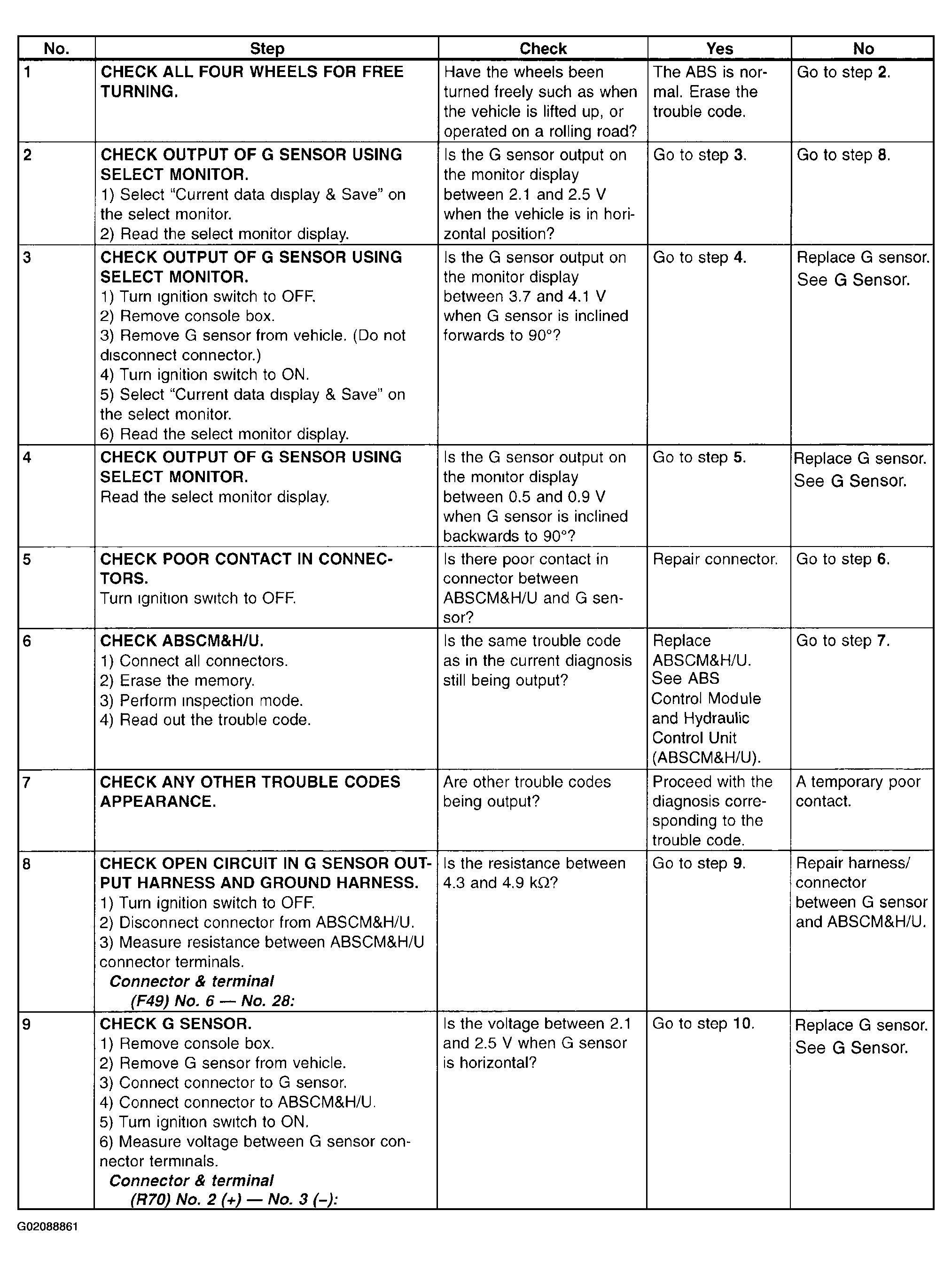

Fig 1: Trouble Code 56 - Detection Of G Sensor Stick - Diagnostic Chart (1 Of 2)

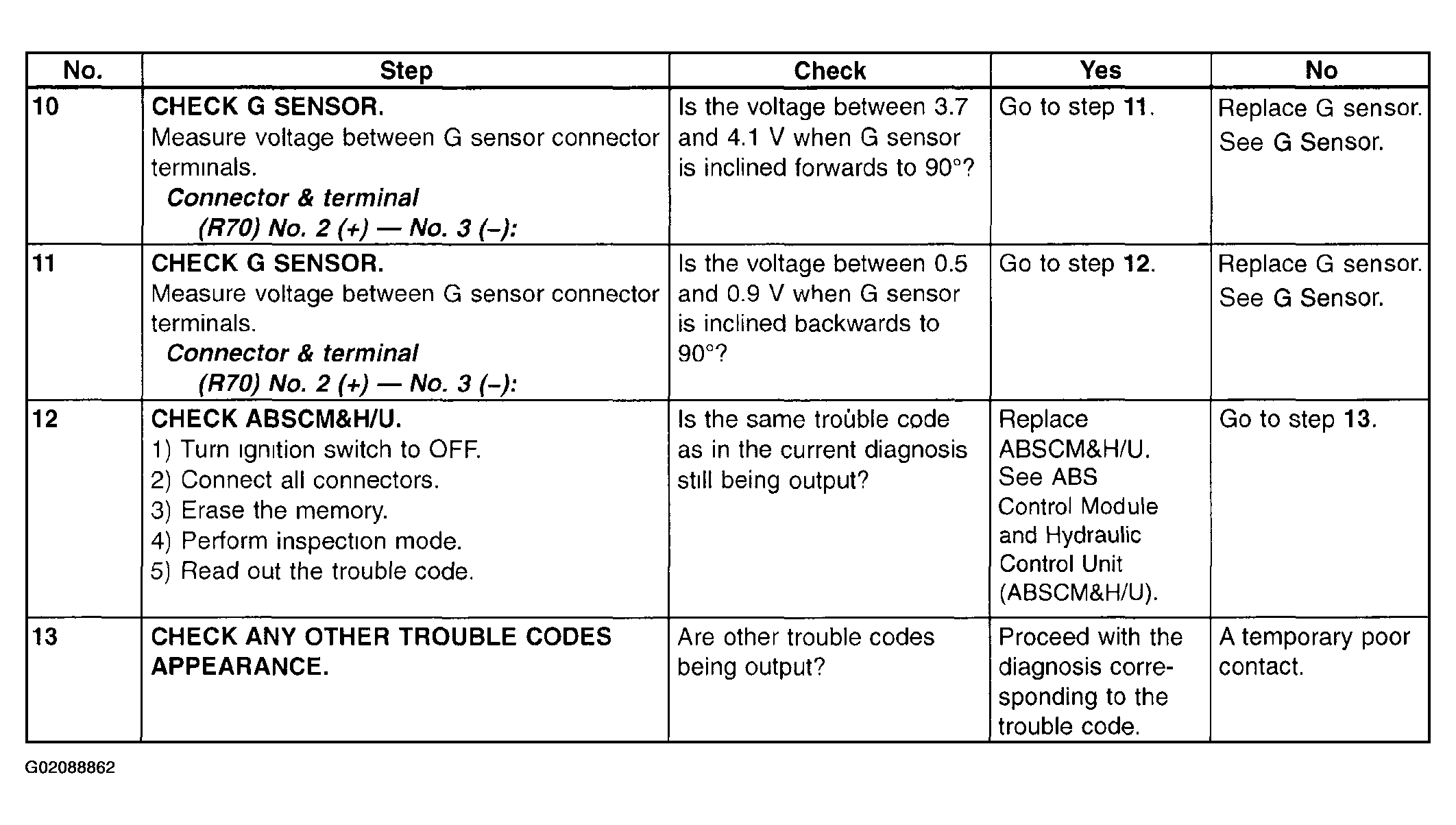

Fig 2: Trouble Code 56 - Detection Of G Sensor Stick - Diagnostic Chart (2 Of 2)
