Diagnostic Chart

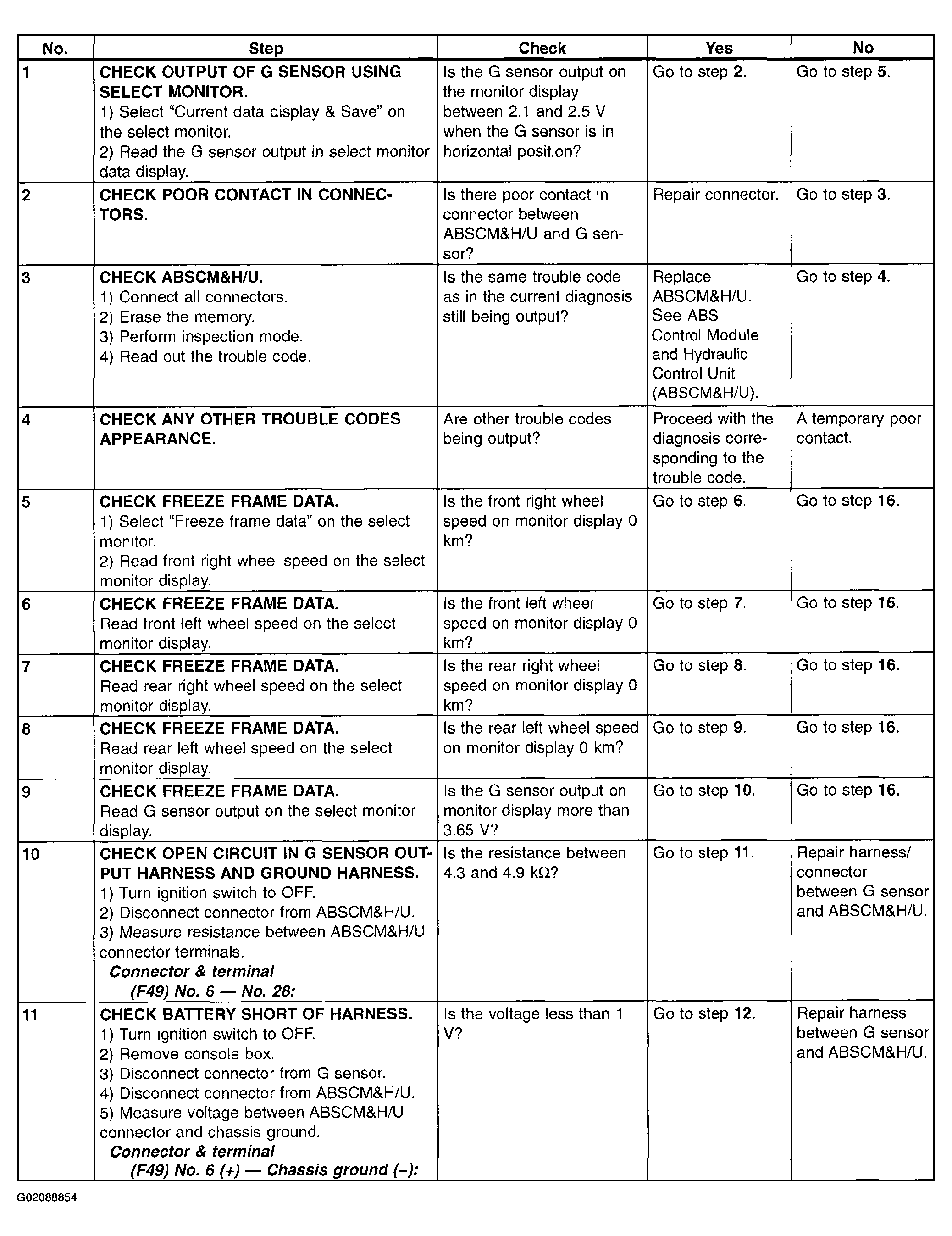

Fig 1: Trouble Code 56 - Battery Short In G Sensor Circuit - Diagnostic Chart (1 Of 3)
G02088854

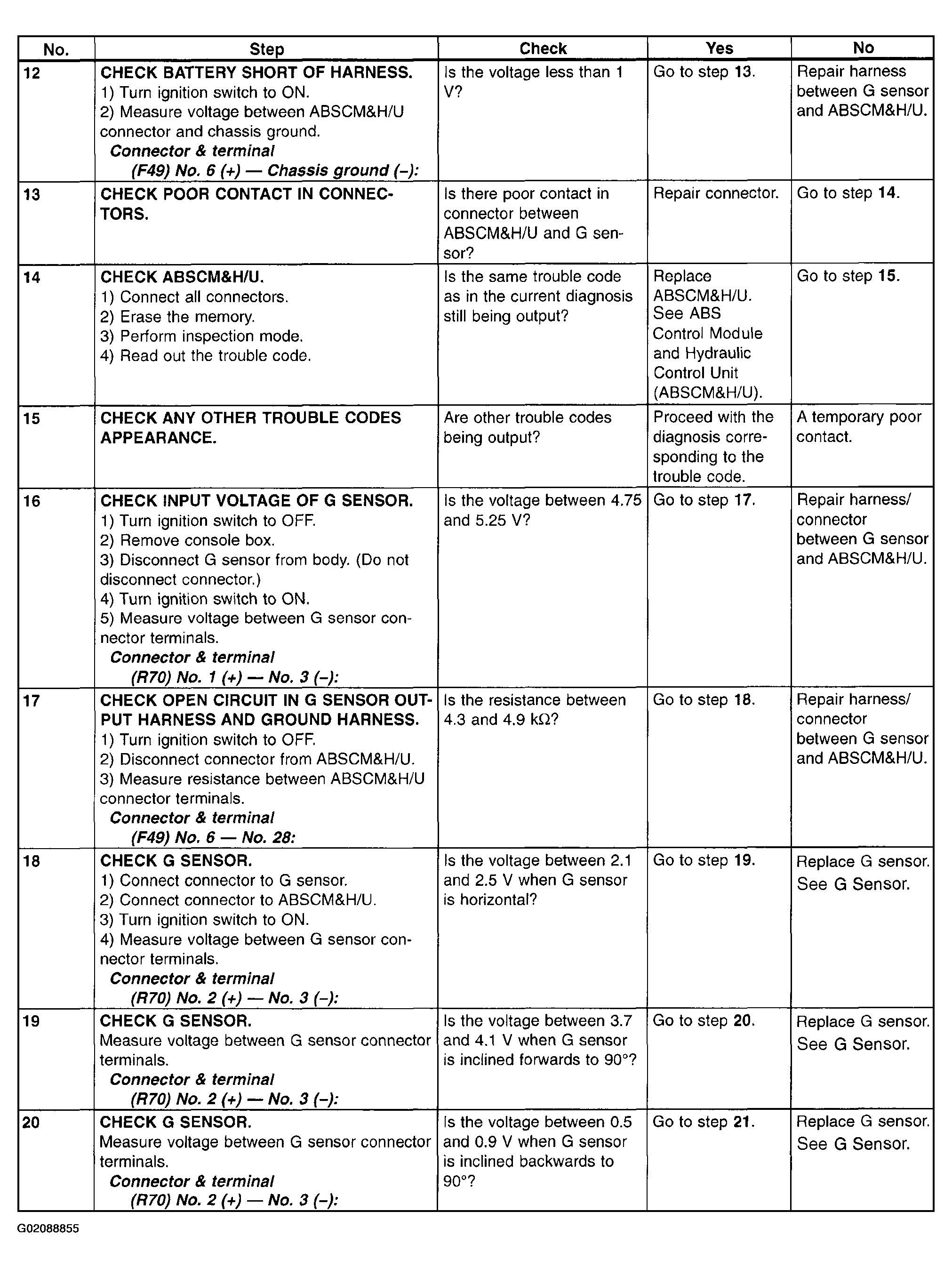

Fig 2: Trouble Code 56 - Battery Short In G Sensor Circuit - Diagnostic Chart (2 Of 3)
G02088855

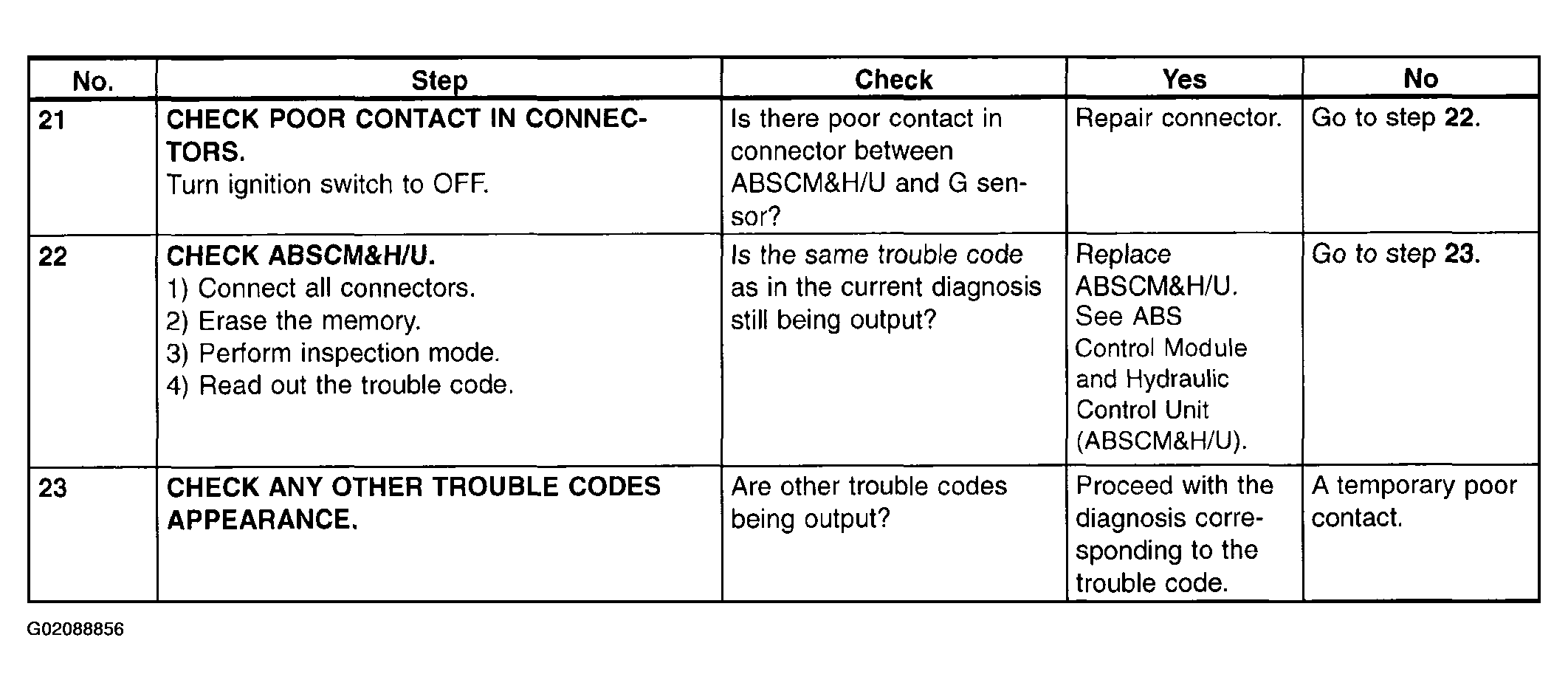

Fig 3: Trouble Code 56 - Battery Short In G Sensor Circuit - Diagnostic Chart (3 Of 3)
G02088856
