Home >> Subaru >> 2001 >> Outback Base, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Braking System (Diagnostics) >> Diagnostics Chart with Subaru Select Monitor >> Trouble Code 29 - Abnormal Abs Sensor Signal On Any One Of Four Sensor >> Diagnostic Chart

Diagnostic Chart

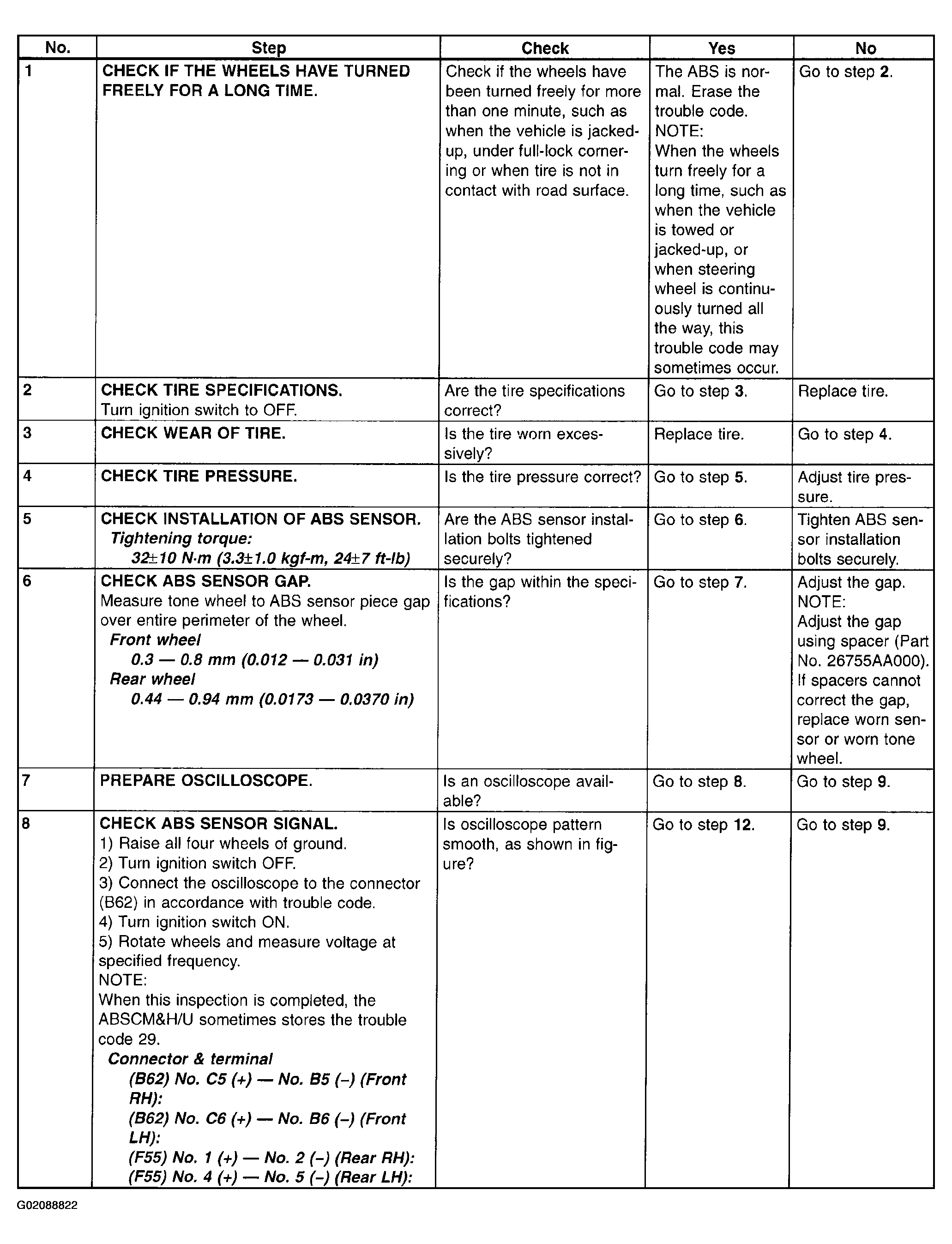

Fig 1: Trouble Code 29 - Abnormal ABS Sensor Signal On Any One Of Four Sensor - Diagnostic Chart (1 Of 2)
G02088822

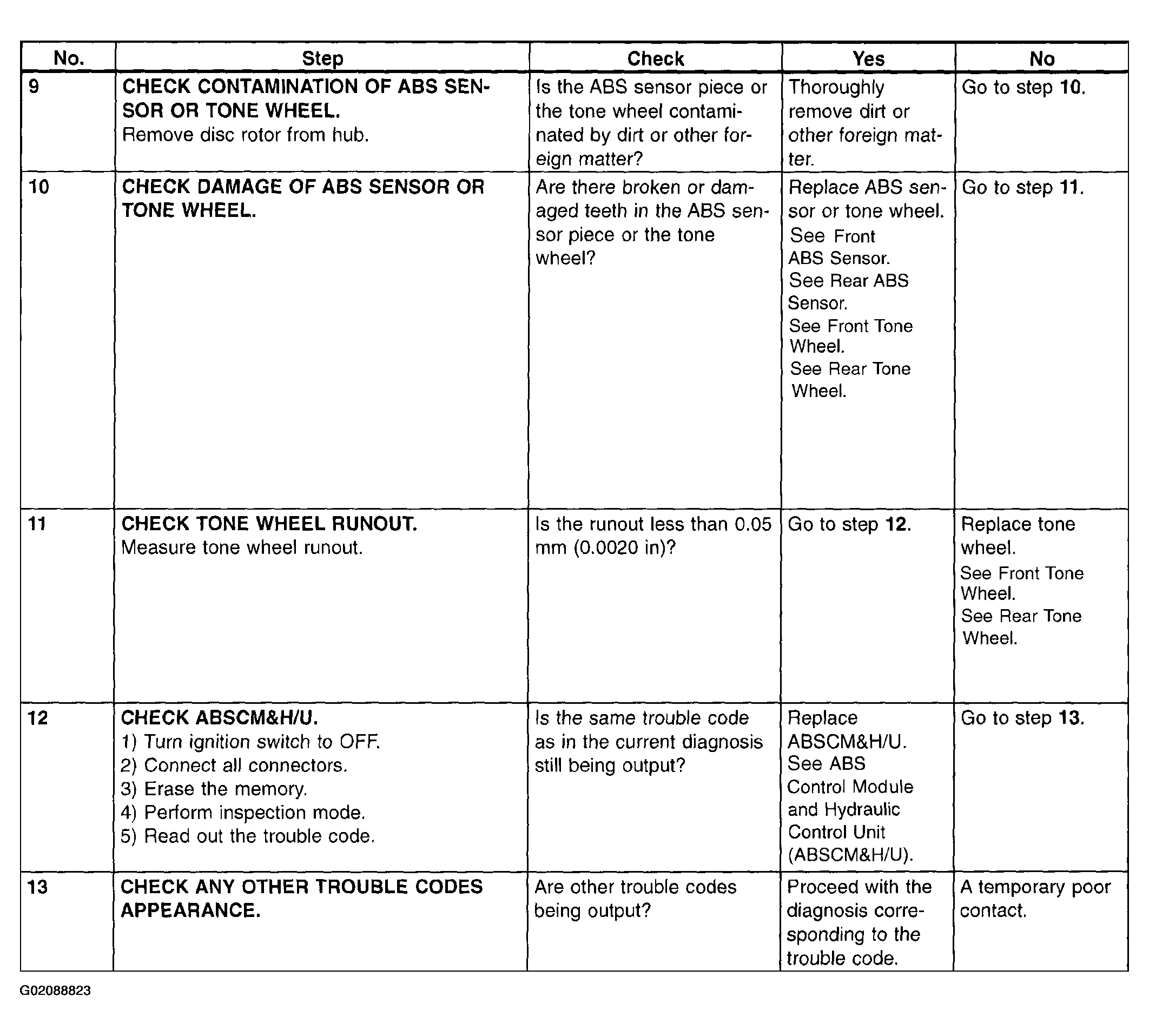

Fig 2: Trouble Code 29 - Abnormal ABS Sensor Signal On Any One Of Four Sensor - Diagnostic Chart (2 Of 2)
G02088823
