Diagnostic Chart

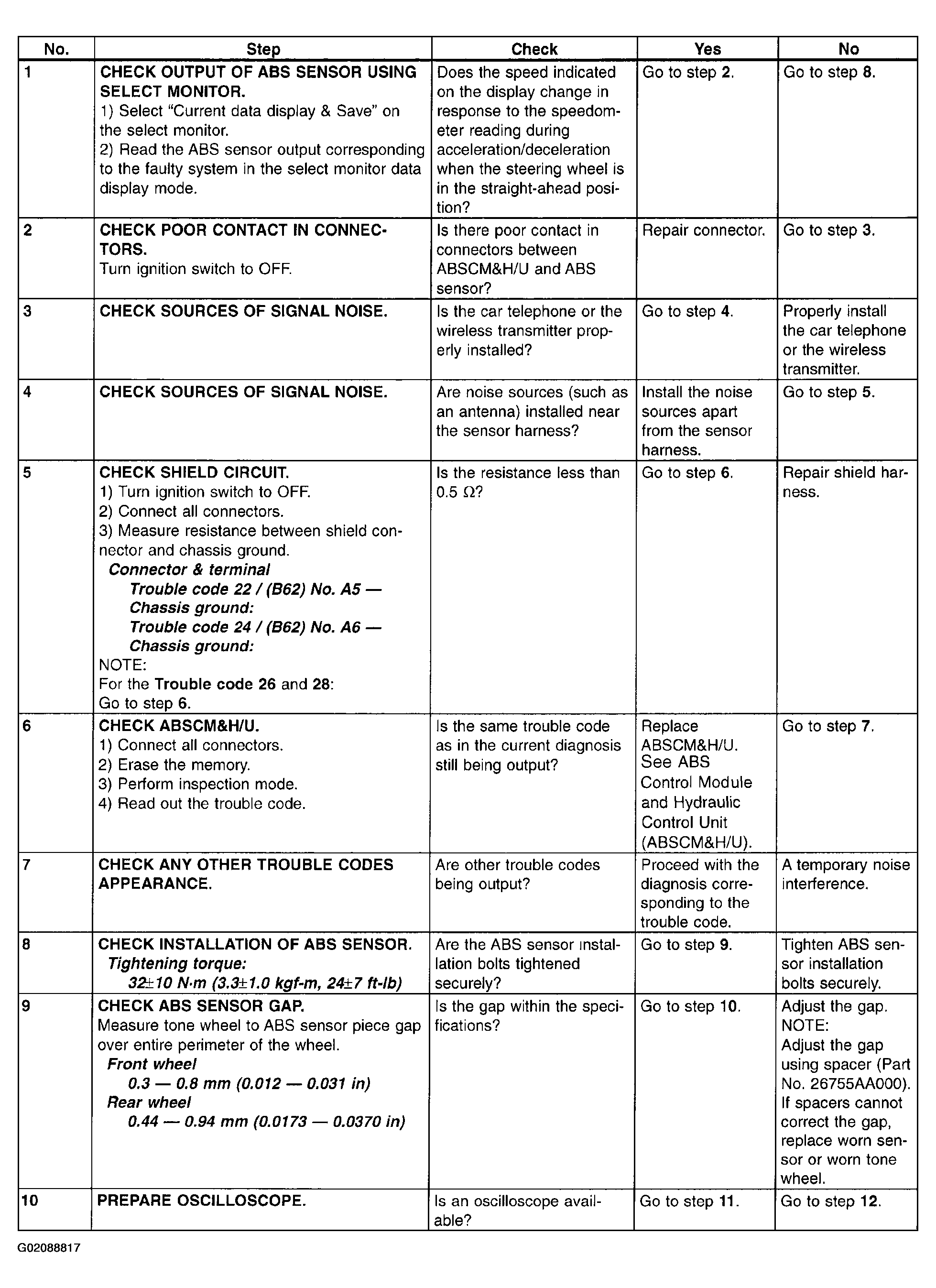

Fig 1: Trouble Code 28 - Rear Left Abnormal ABS Sensor Signal - Diagnostic Chart (1 Of 4)
G02088817

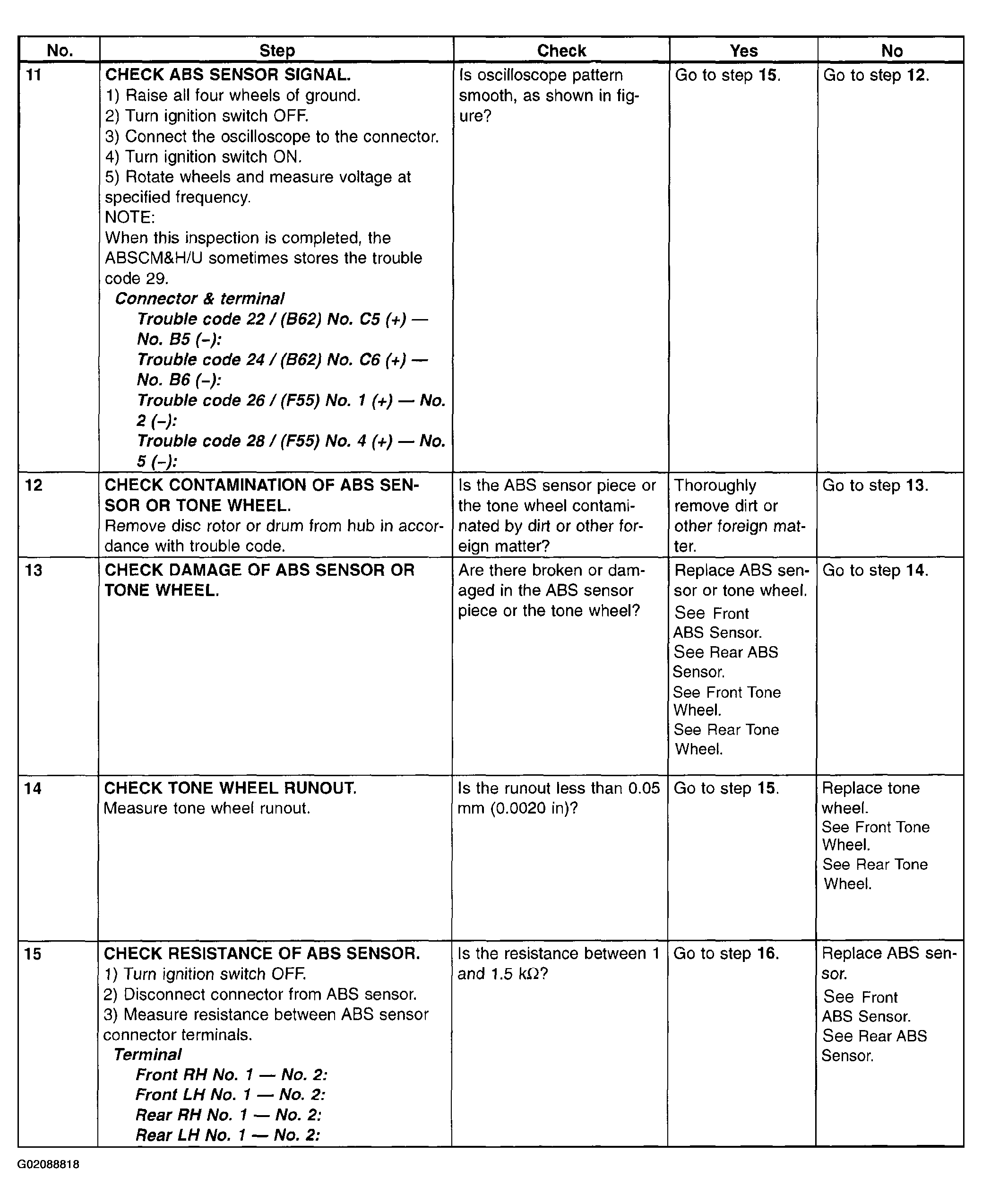

Fig 2: Trouble Code 28 - Rear Left Abnormal ABS Sensor Signal - Diagnostic Chart (2 Of 4)
G02088818

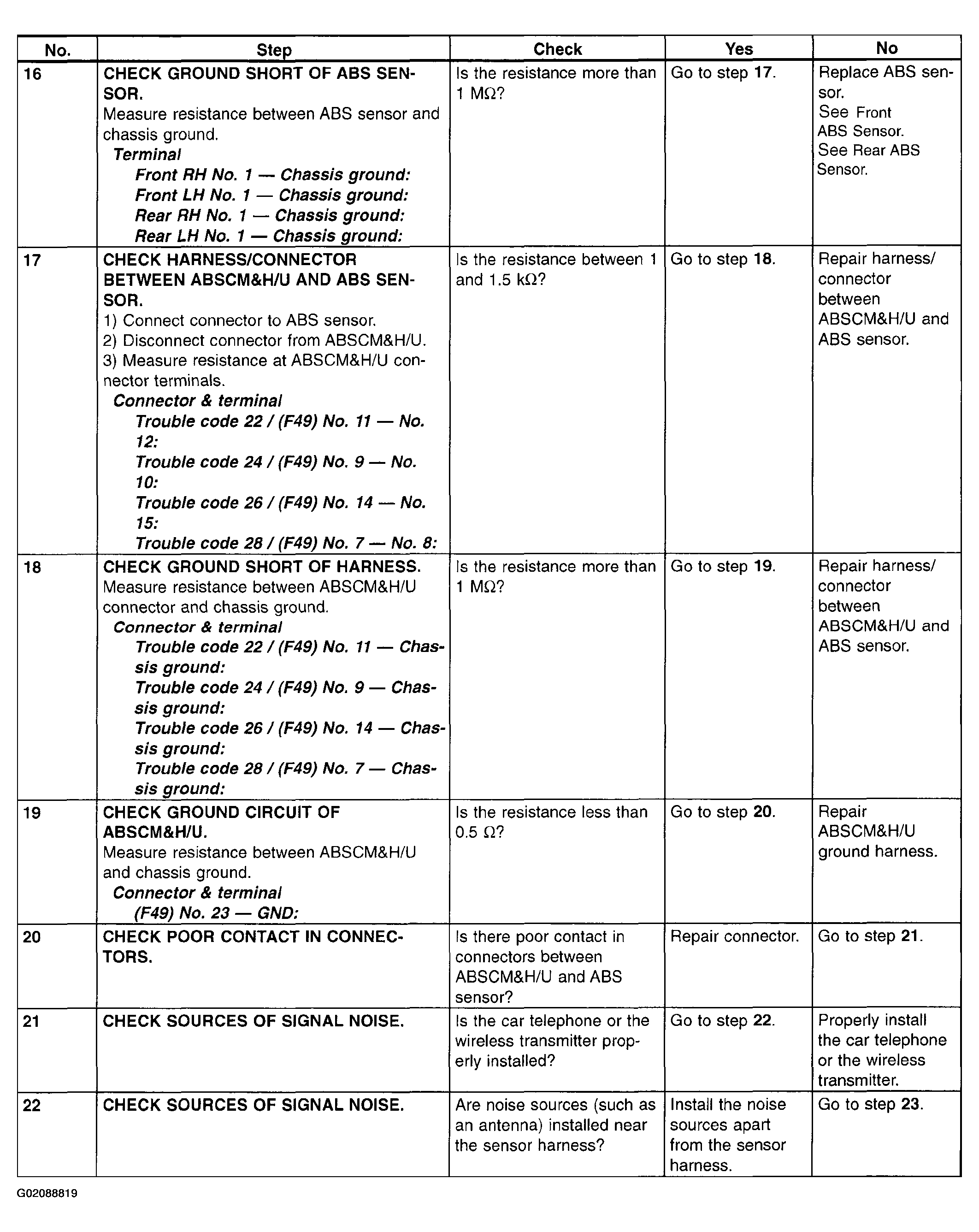

Fig 3: Trouble Code 28 - Rear Left Abnormal ABS Sensor Signal - Diagnostic Chart (3 Of 4)
G02088819

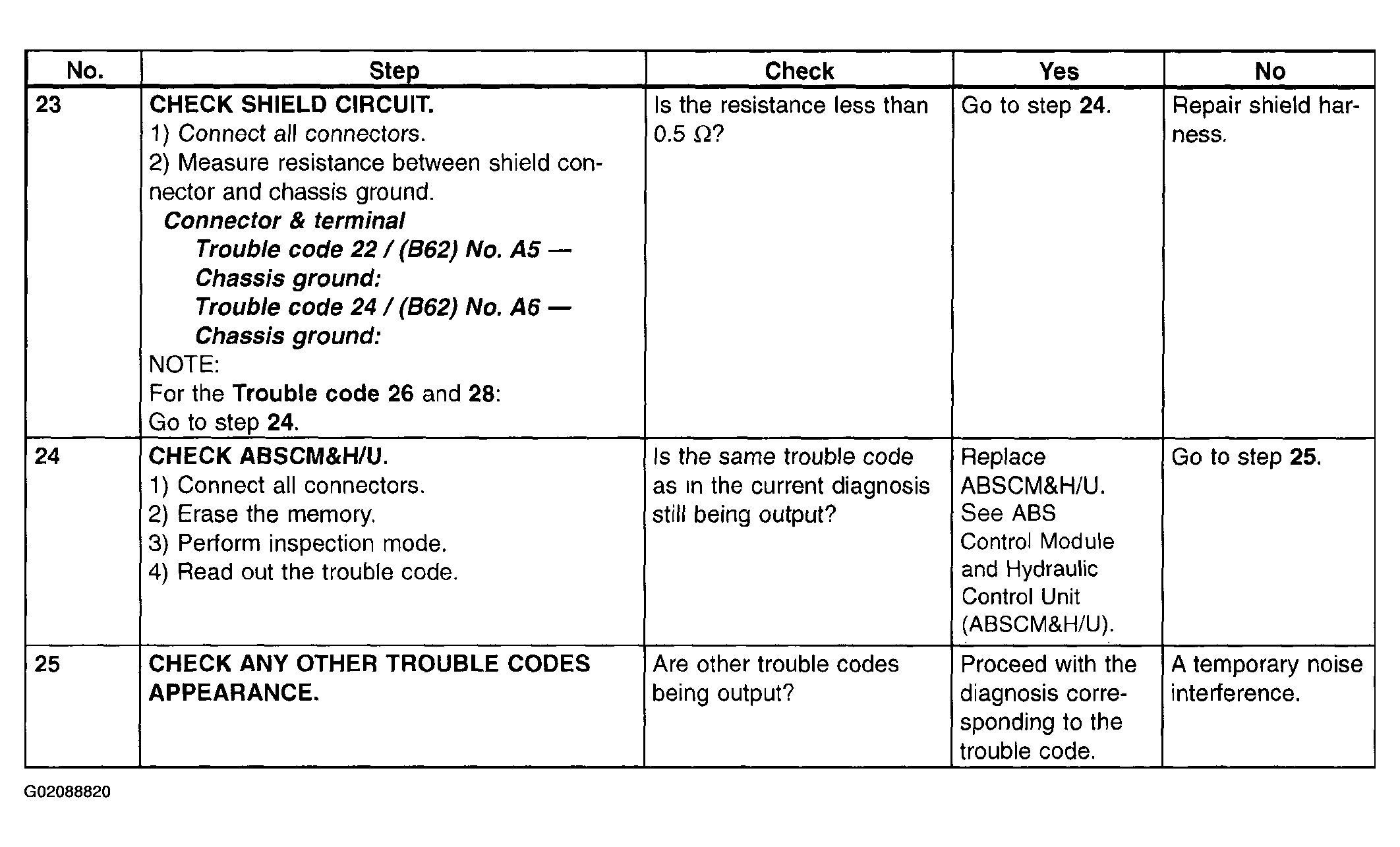

Fig 4: Trouble Code 28 - Rear Left Abnormal ABS Sensor Signal - Diagnostic Chart (4 Of 4)
G02088820
