Communication For Initializing Impossible: Wiring Diagram

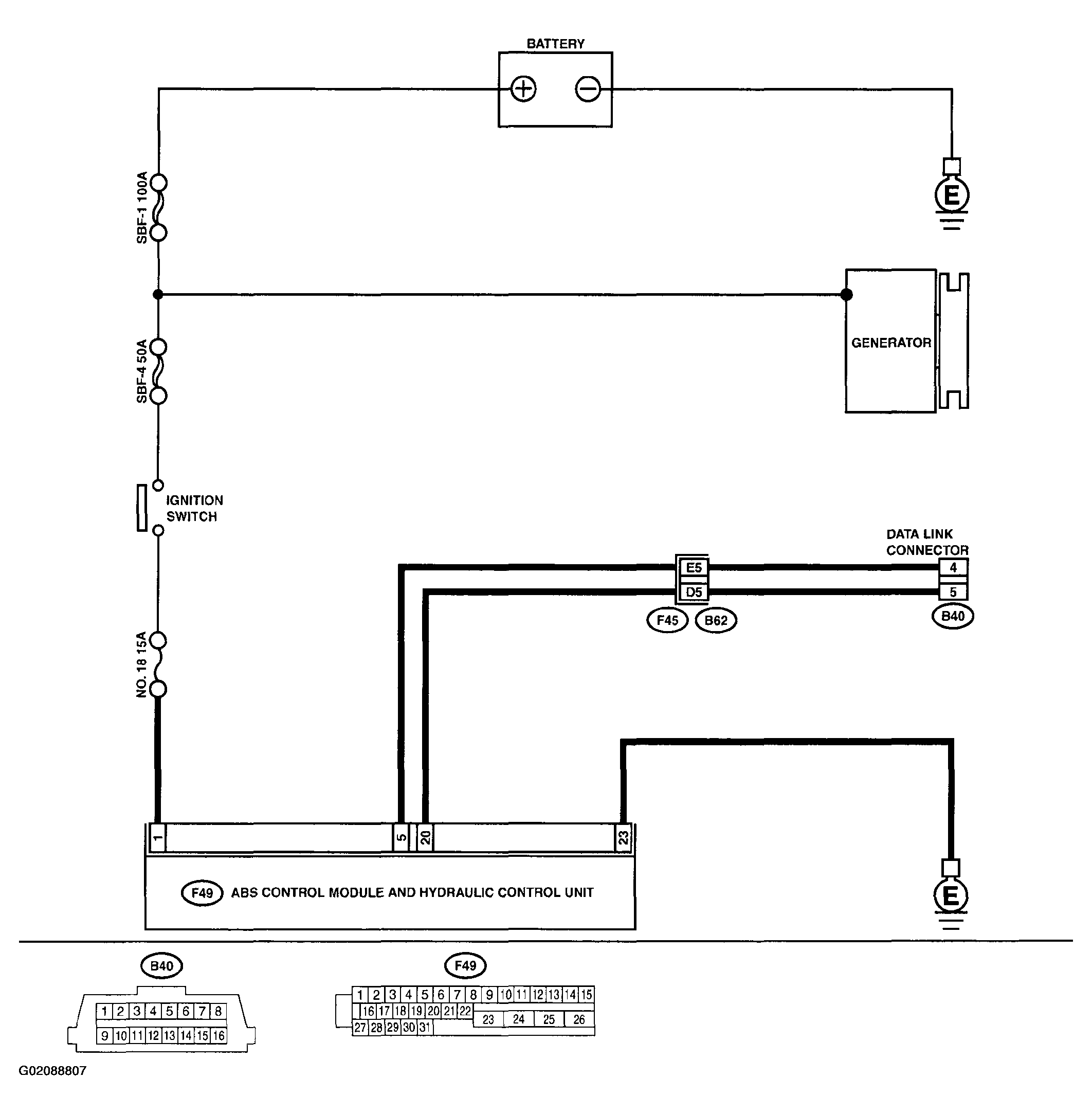

Fig 1: Communication For Initializing Impossible - Wiring Diagram

G02088807
