Code 71: Shift Solenoid 1: Trouble Symptom

Does not shift.

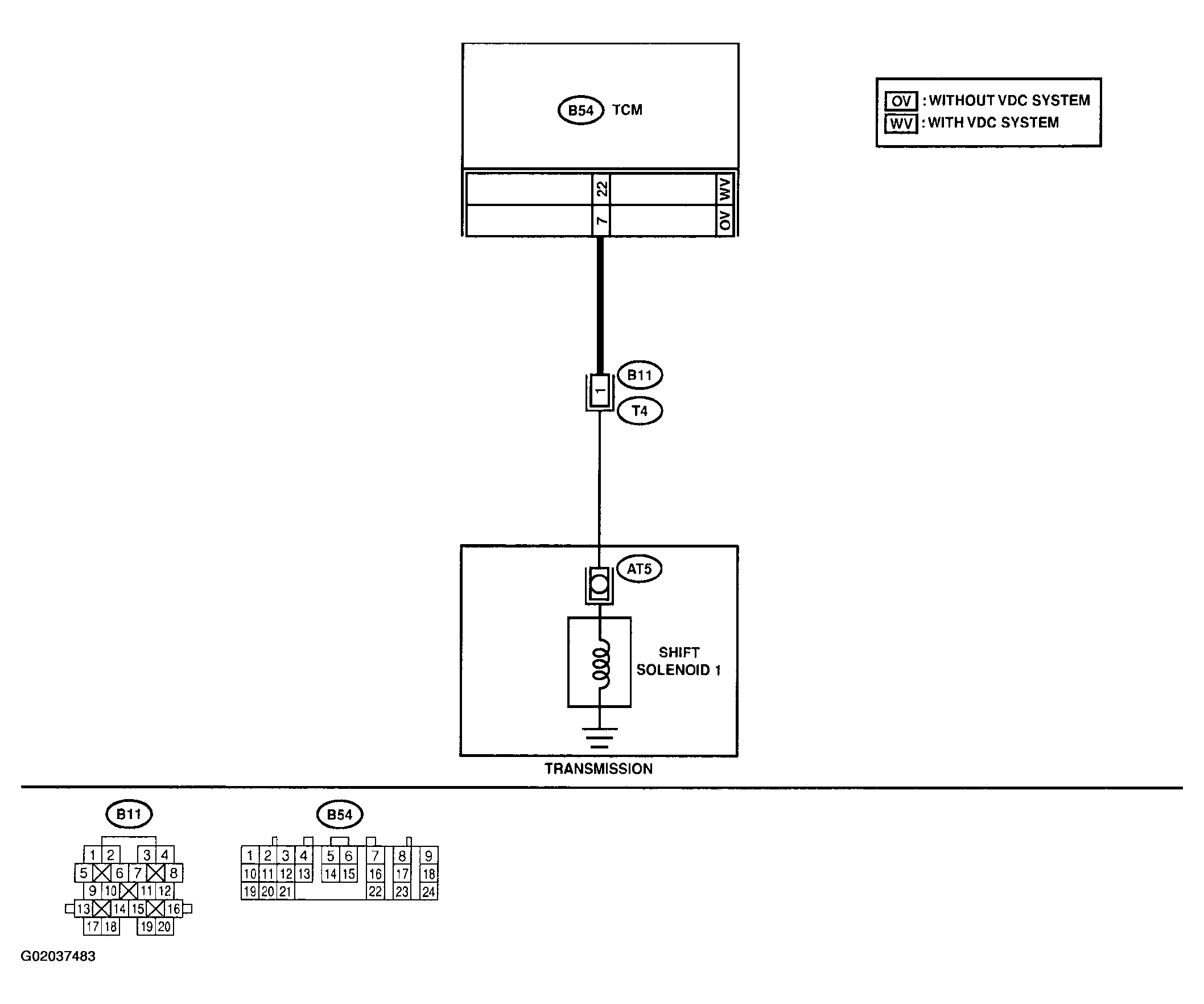

Fig 1: Trouble Code 71 - Shift Solenoid 1 Wiring Diagram

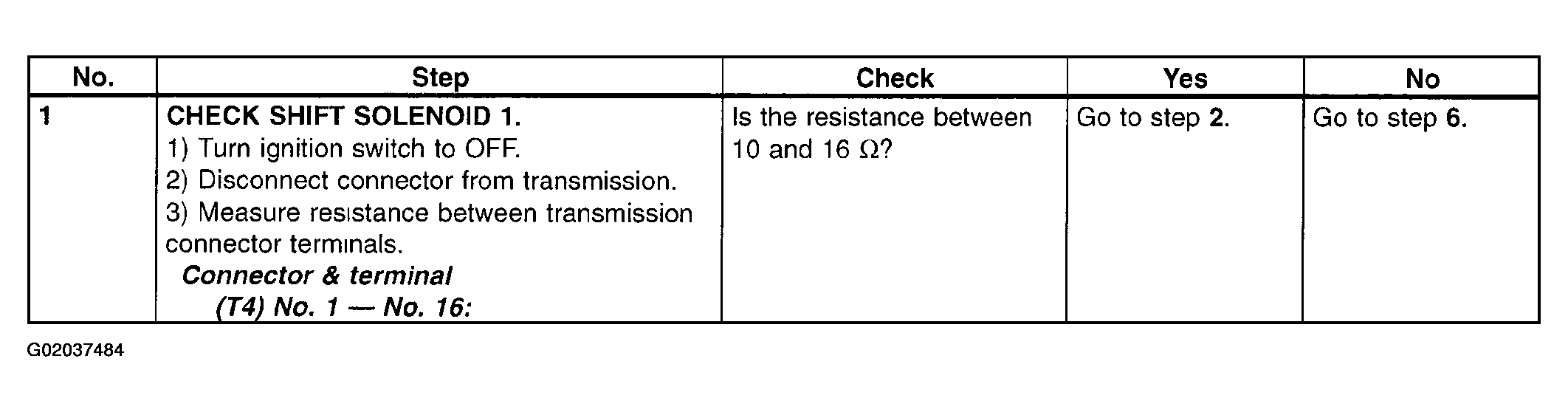

Fig 2: Trouble Code 71 - Diagnostic Chart (1 Of 3)

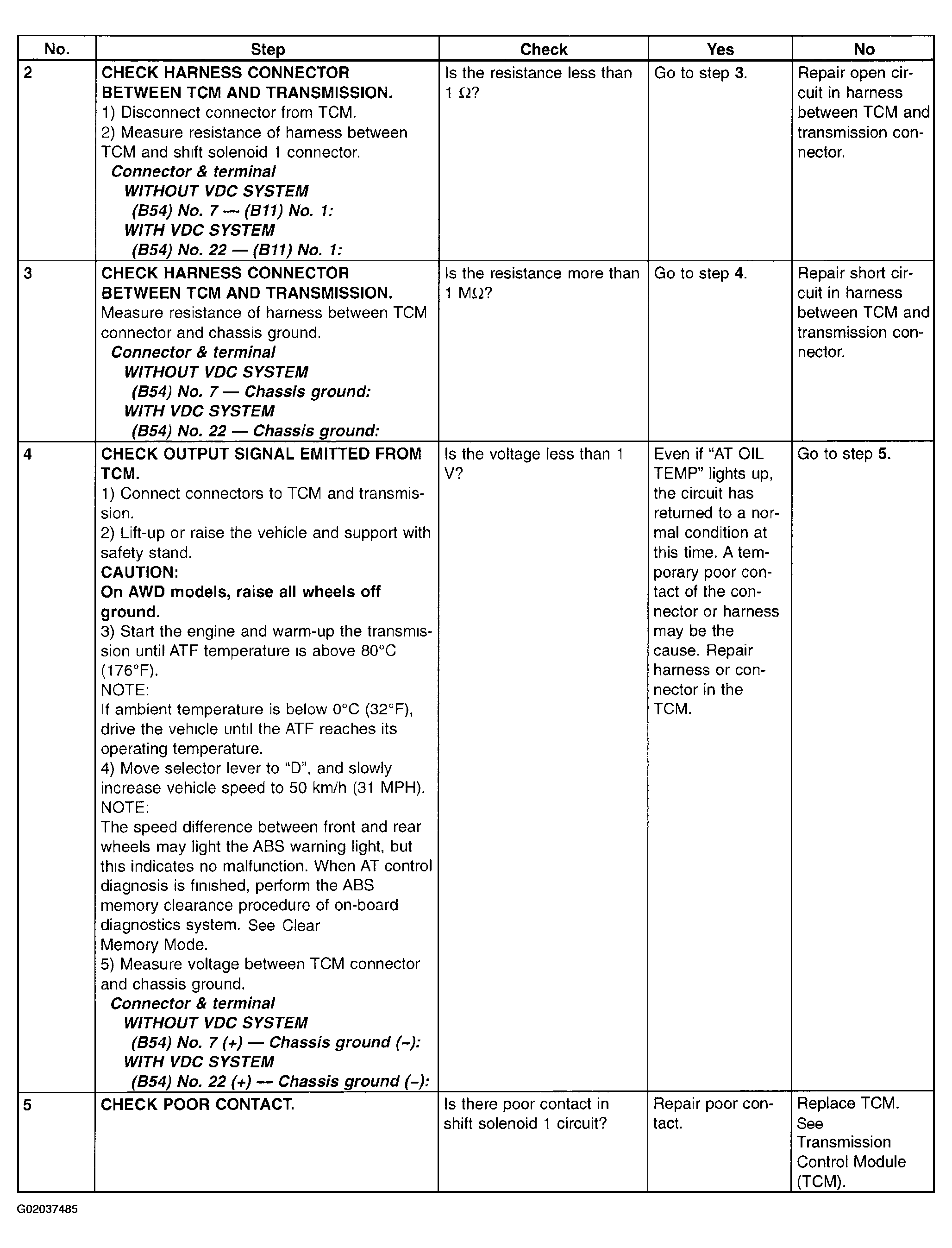

Fig 3: Trouble Code 71 - Diagnostic Chart (2 Of 3)

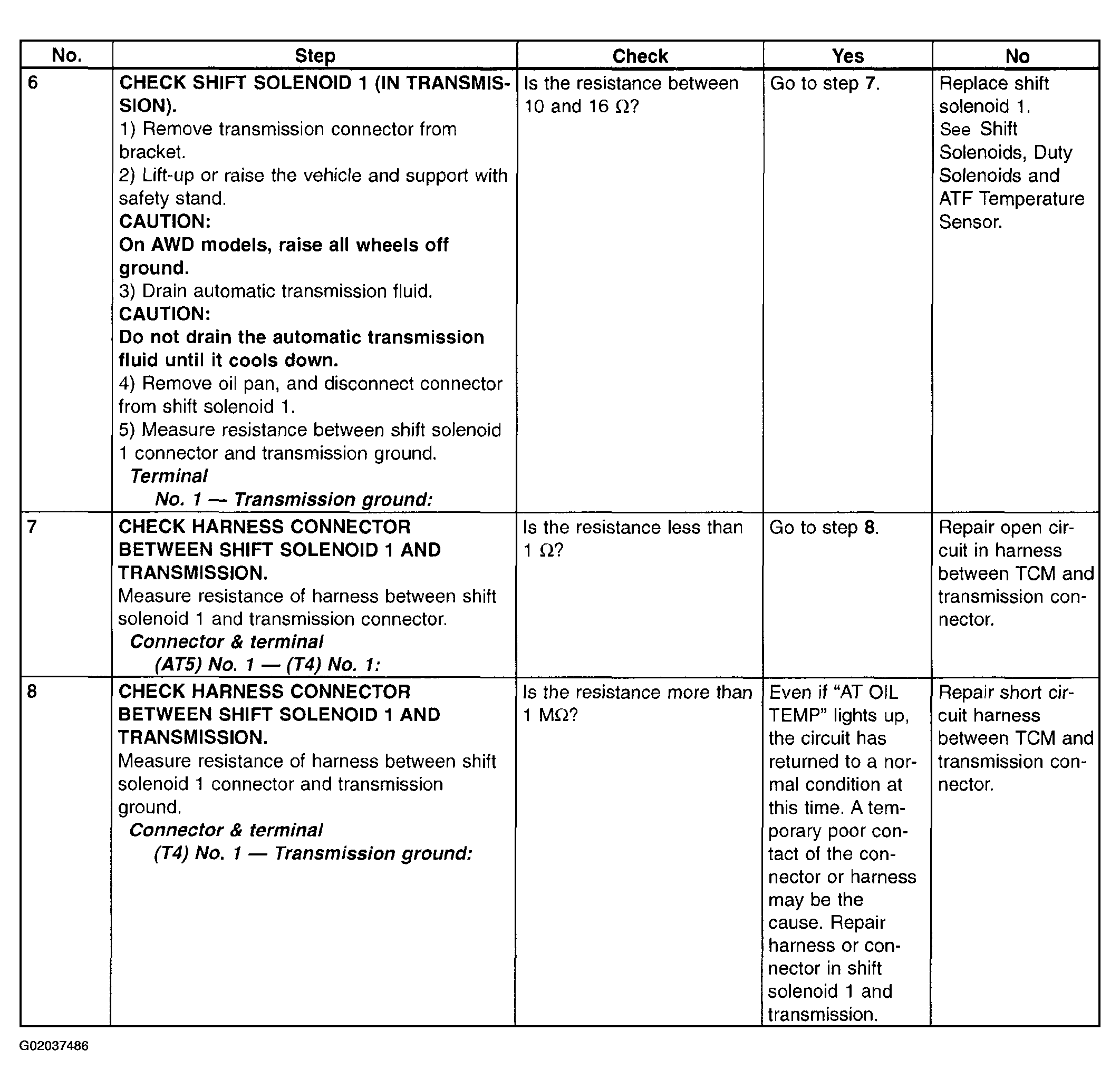

Fig 4: Trouble Code 71 - Diagnostic Chart (3 Of 3)
