Home
>>
Subaru
>>
2001
>>
Outback Base, Automatic
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Vehicle Dynamics Control (Diagnostics)
>>
Diagnostics Chart With Select Monitor
>>
Trouble Code 72 Change Range Of Yaw Rate Sensor Signal Is Too Big
>>
Wiring Diagram
Trouble Code 72 Change Range Of Yaw Rate Sensor Signal Is Too Big: Wiring Diagram

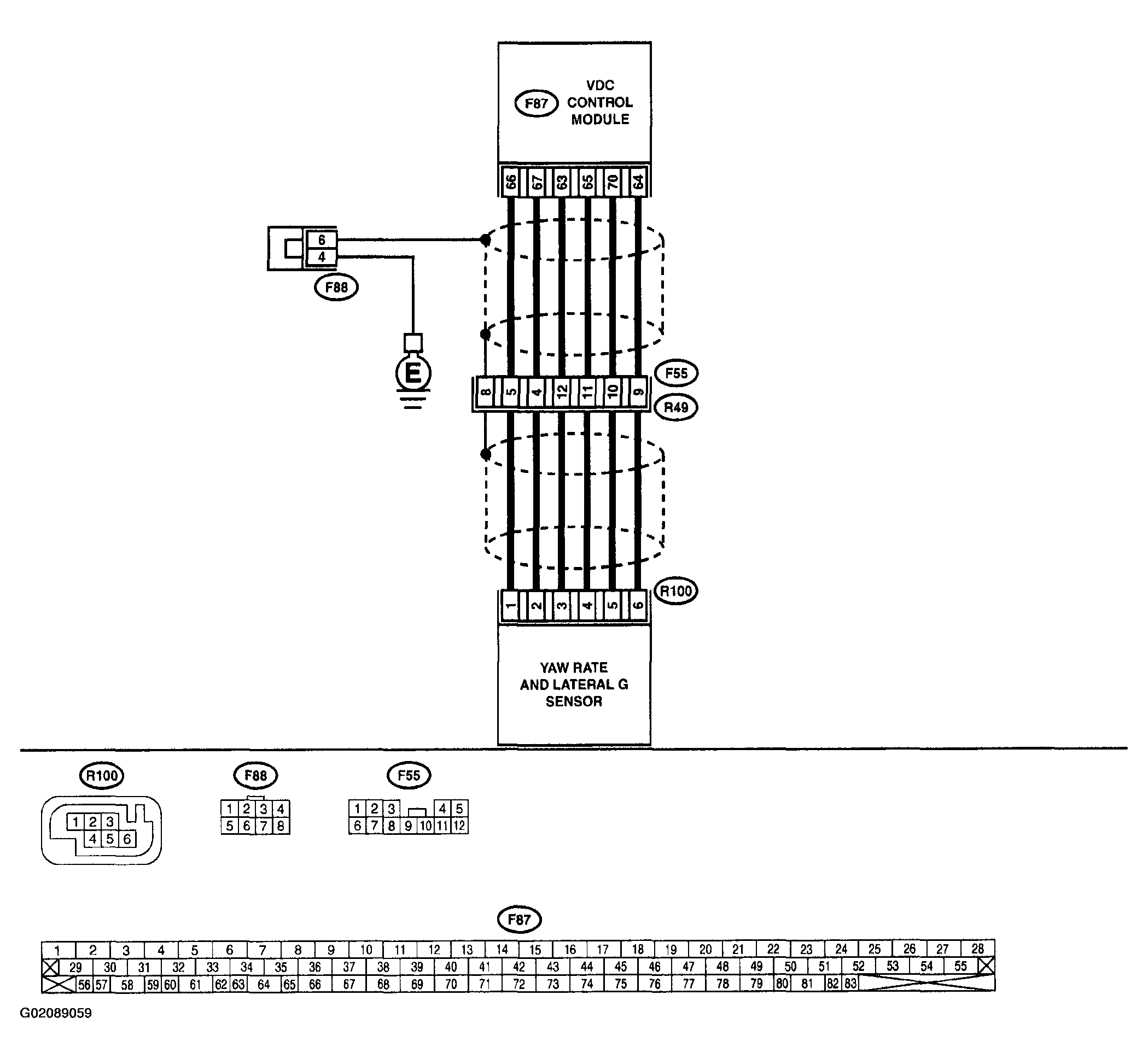

Fig 1: Wiring Diagram - Trouble Code 72 - With Select Monitor (Change Range Of Yaw Rate Sensor Signal Is Too Big)
