Shift Solenoid 1 & 2

These solenoids are mounted to the control valve. They are turned ON or OFF according to signals sent from the TCM. The gear positions are changed according to the ON and OFF condition of these solenoids.

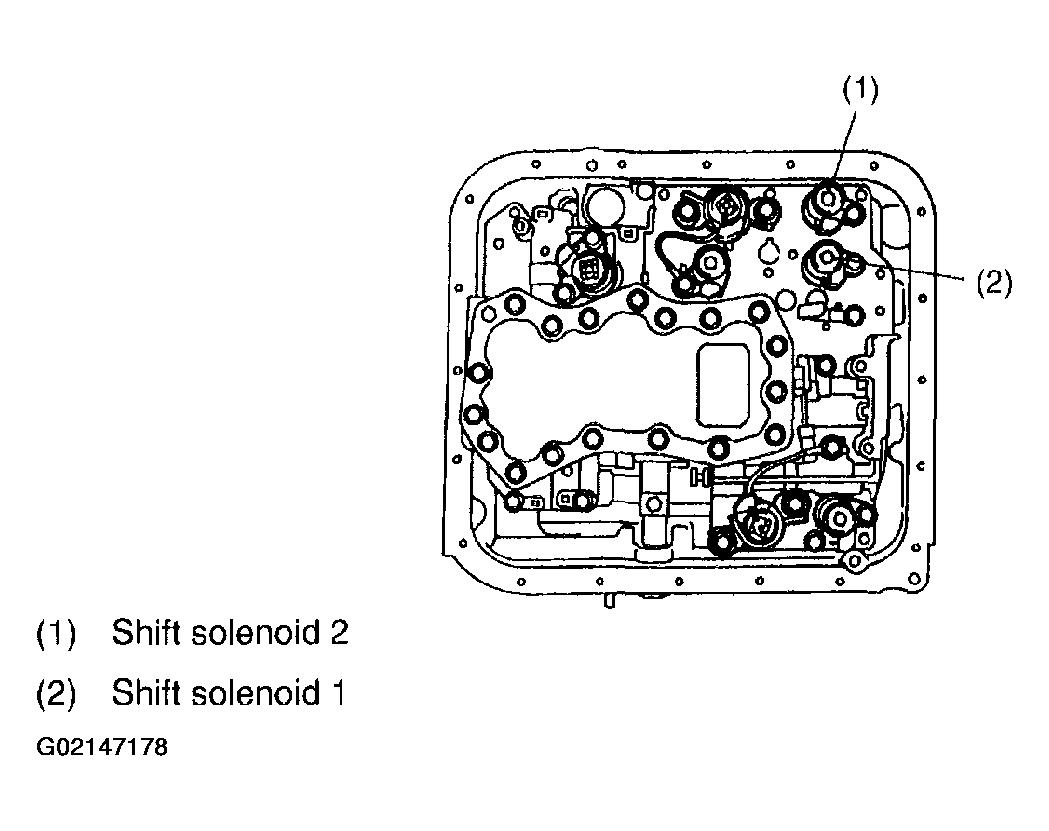

Fig 1: Identifying Shift Solenoid 1 & 2
G02147178
