Lock-Up Duty Solenoid

This solenoid is mounted to the control valve, and its duty ratio is controlled by the signal sent from TCM. It then controls the lock-up control valve to provide smooth engagement and disengagement of the lock-up clutch.

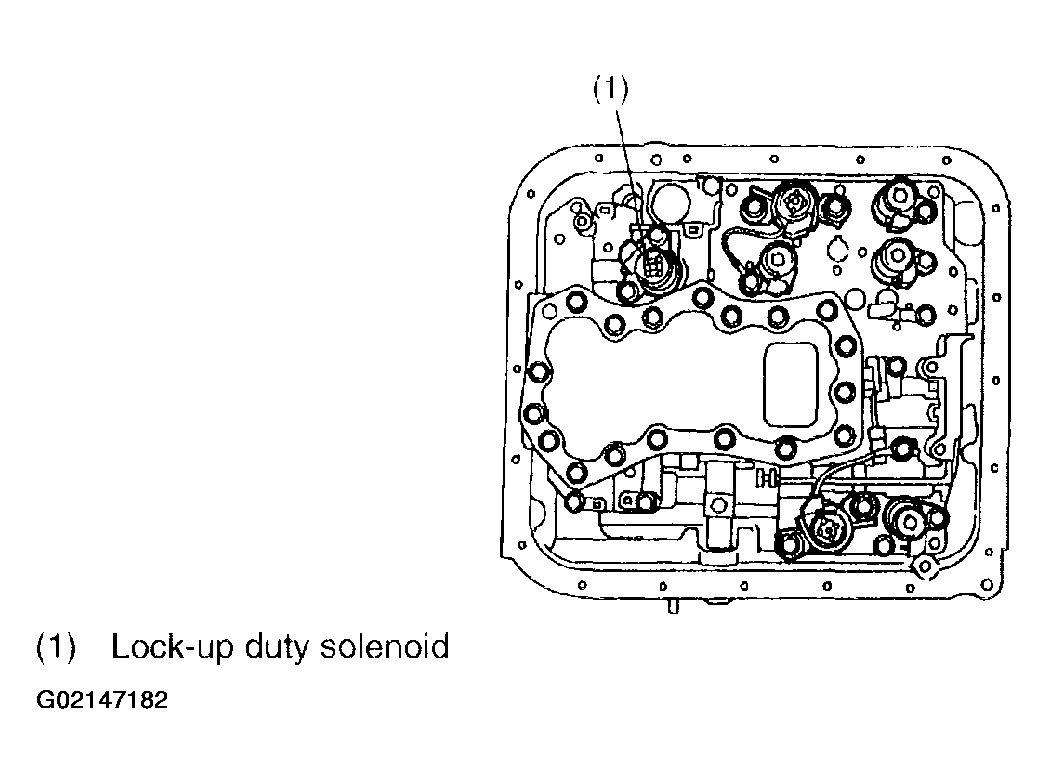

Fig 1: Identifying Lock-Up Duty Solenoid
G02147182
