Abs Control Module And Hydraulic Control Unit (ABSCM & H/U): Inspection

  1. Check connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM & H/U.

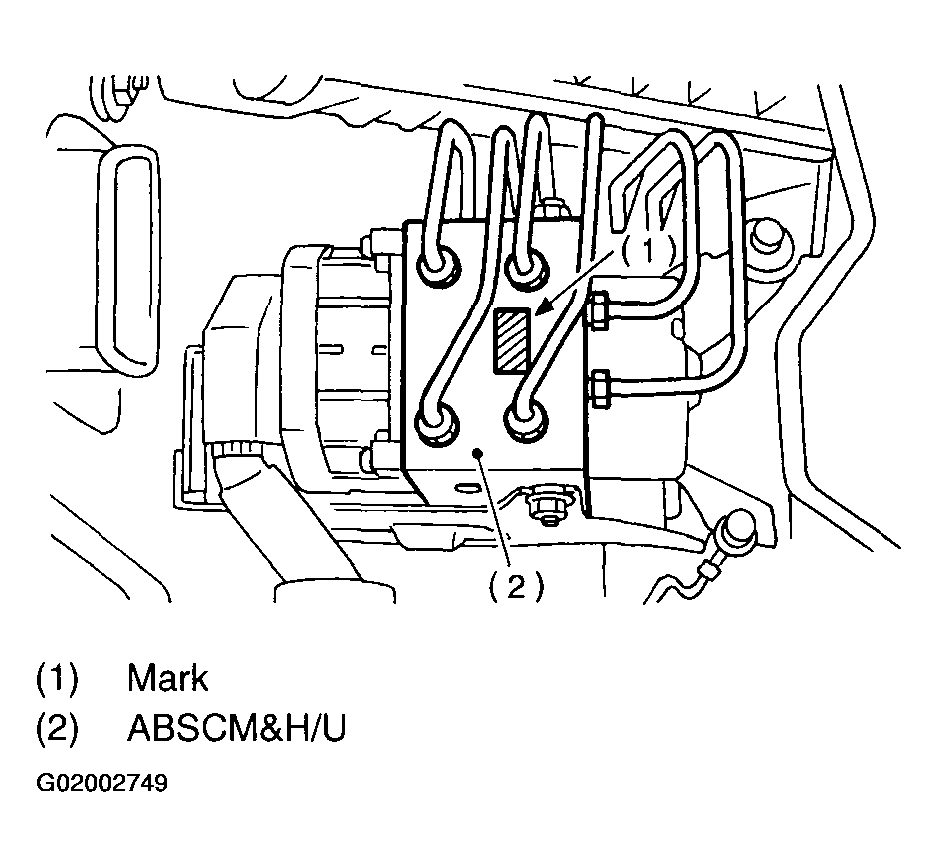

    Fig 1: Identifying Mark On ABSCM & H/U
    G02002748
    Fig 2: Specifications On mark On ABSCM & H/U
    G02002749
