Calling Up A Trouble Code

  1. Take out diagnostic connector from side of driver's seat heater unit.

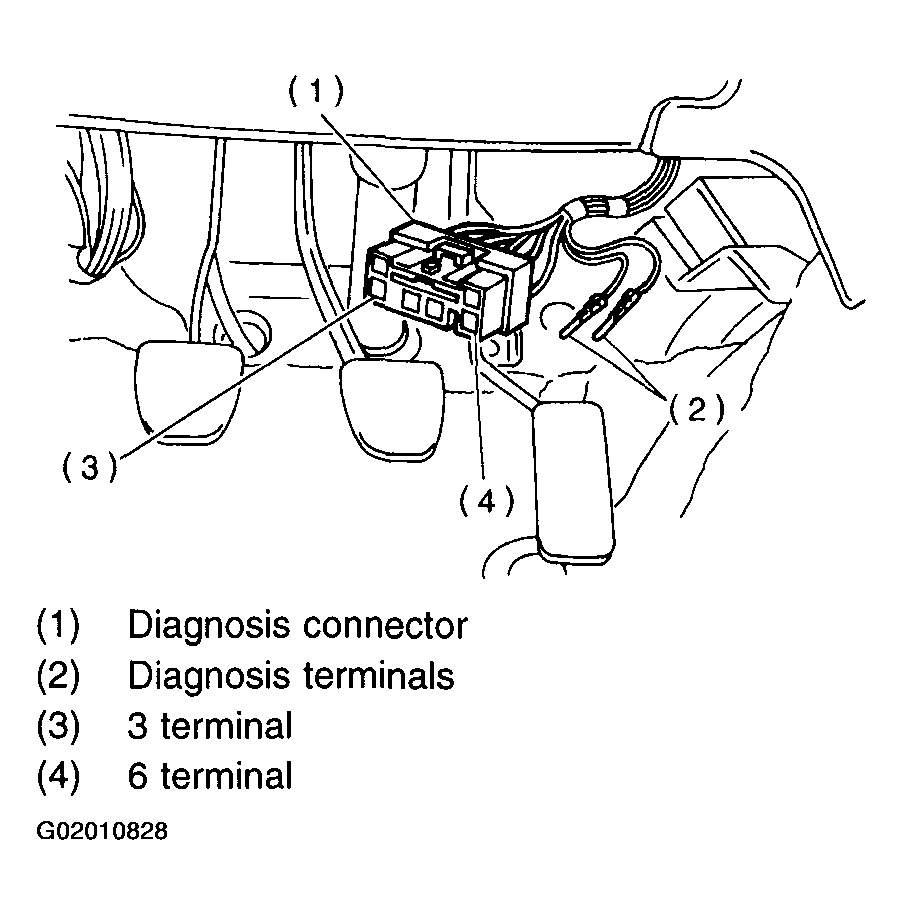

    Fig 1: Identifying Diagnostic Connector
    G02010828
  2. Turn ignition switch OFF.
  3. Connect diagnosis connector terminal 6 to diagnosis terminal.
  4. Turn ignition switch ON.
  5. ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
  6. After the start code (11) is shown, the trouble codes will be shown in order of the last information first.

    These repeat for a maximum of 3 minutes.

    NOTE: When there are no trouble codes in memory, only the start code (11) is shown.

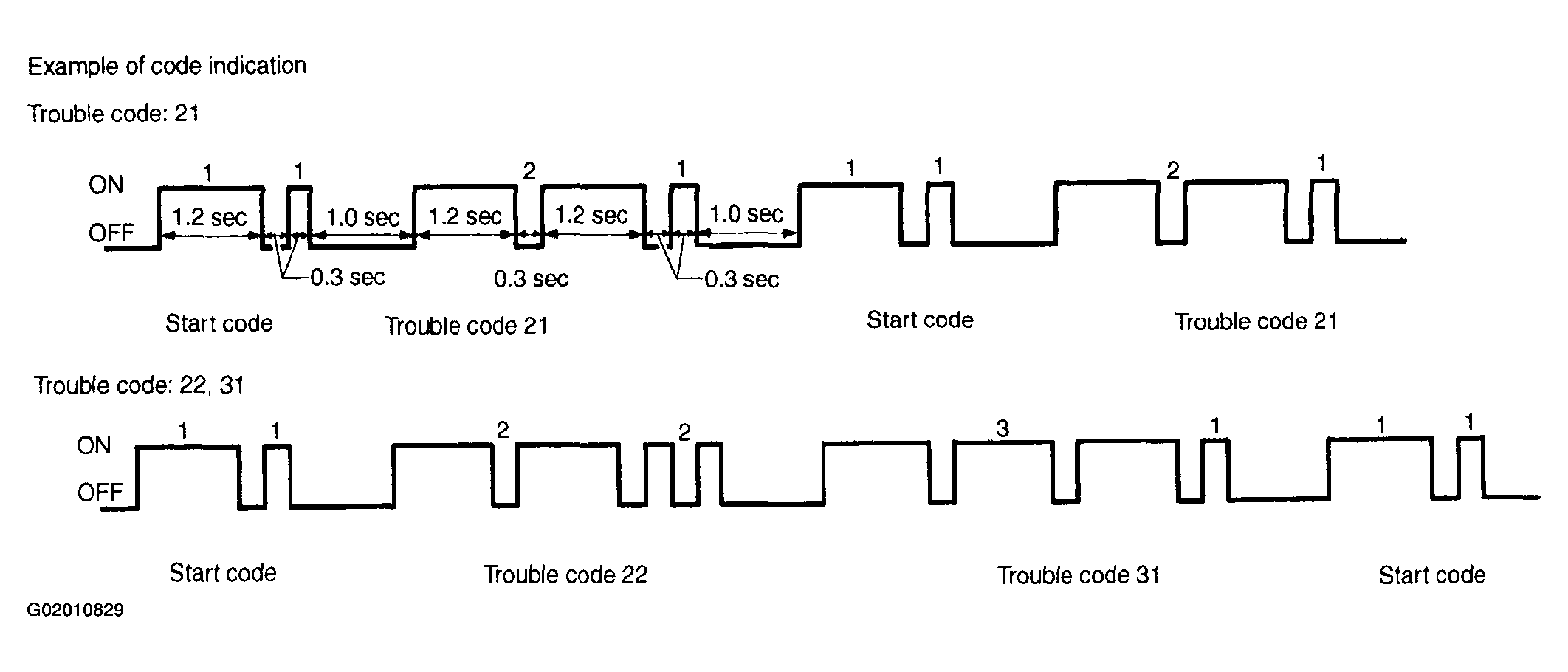

    Fig 2: Example Displayed Code (Shown: Code 21)
    G02010829
