Transfer Case And Extension Case Assembly: Removal

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual transmission assembly from vehicle. See MANUAL TRANSMISSION ASSEMBLY  .
  2. Remove back-up light switch and neutral position switch.
  3. Remove transfer case and extension case assembly.

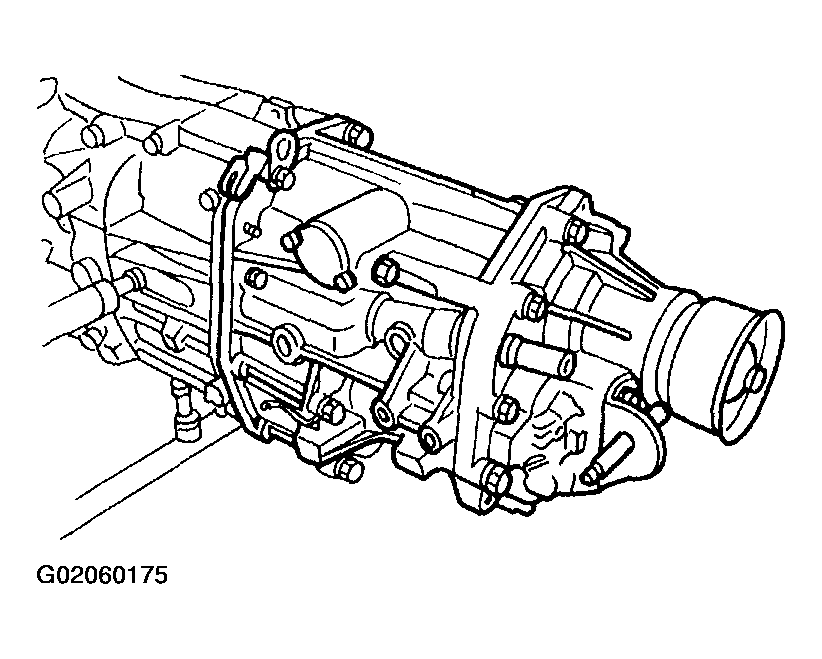

    Fig 1: Identifying Transfer Case And Extension Case Assembly
    G02060175
  4. Remove shifter arm.
  5. Remove extension case assembly.

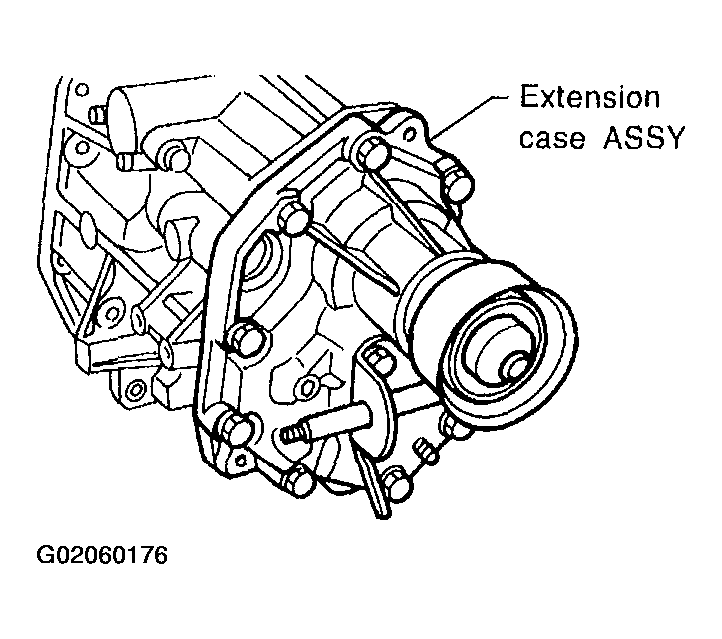

    Fig 2: Identifying Extension Case
    G02060176
