Extension Case

WARNING: This page is about a different car, the 2001 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transfer drive gear assembly. See TRANSFER DRIVE GEAR  .
  2. Remove shift bracket.

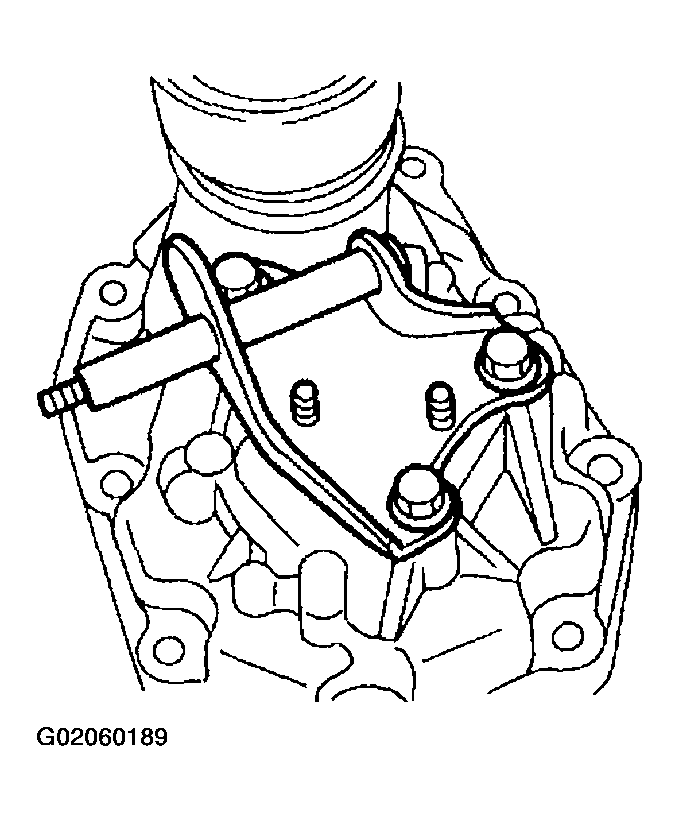

    Fig 1: Removing Shift Bracket
    G02060189
  3. Remove oil seal from extension case.
