Operational Guidelines Of The ABS Sequence Control With Diagnosis Connector

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect diagnosis terminals to terminals No. 3 and No. 6 of the diagnosis connector beside driver's seat heater unit.

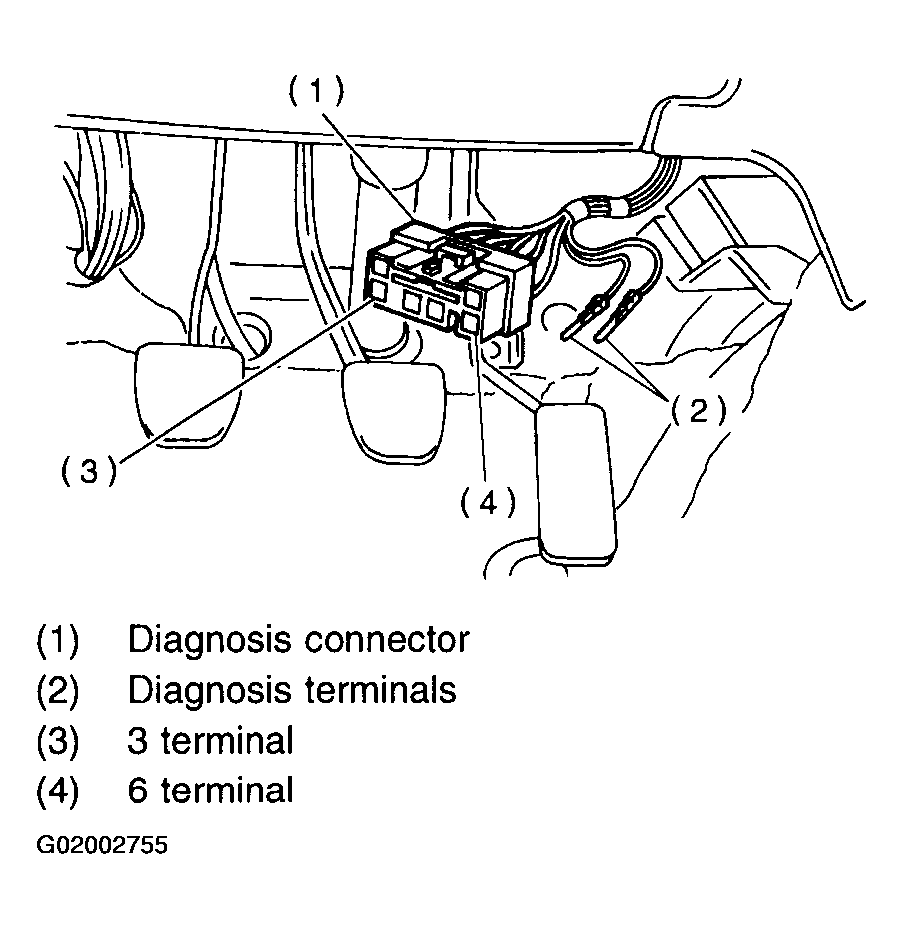

    Fig 1: Identifying Diagnosis Terminals To Terminals No. 3 & 6
    G02002755
  2. Set the speed of all wheels at 4 km/h (2 MPH) or less.
  3. Turn ignition switch to OFF.
  4. Within 0.5 seconds after the ABS warning light goes out, depress the brake pedal and hold it immediately after ignition switch is turned to ON.
    CAUTION: Do not depress the clutch pedal.
    NOTE:
    • When the ignition switch is set to on, the brake pedal must not be depressed.
    • Engine must not operate.
  5. After completion of ABS sequence control, turn ignition switch to OFF.
