Trouble Code 56 Open Or Short Circuit In G Sensor Circuit - Open Or Short Circuit In G Sensor Circuit

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

DIAGNOSIS:

TROUBLE SYMPTOM:

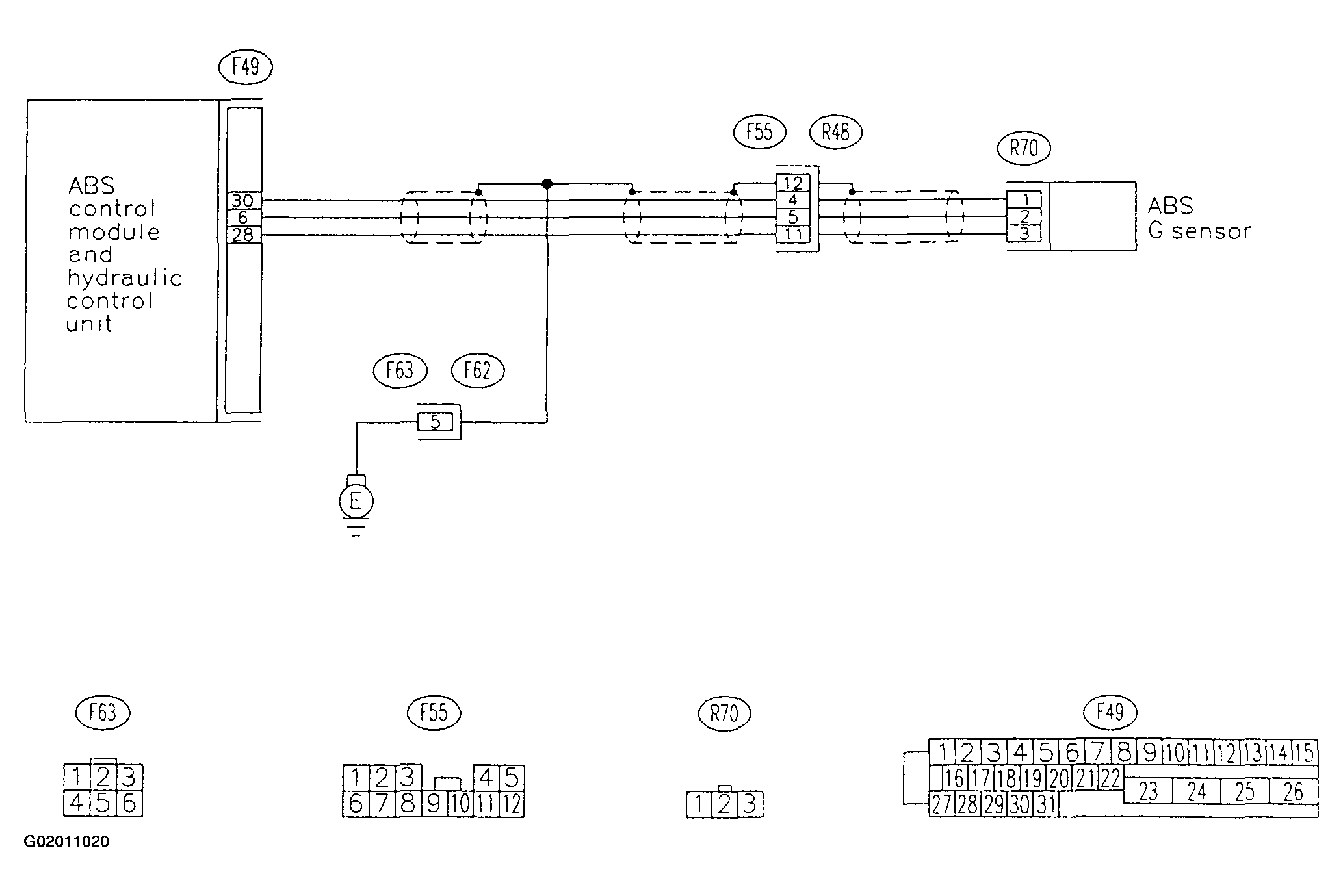

WIRING DIAGRAM:

Fig 1: Wiring Diagram
G02011020
  1. 10AG1: CHECK OUTPUT OF G SENSOR USING SELECT MONITOR.
    1. Select "Current data display & Save" on the select monitor.
    2. Read the G sensor output in select monitor data display.

    CHECK: Is the G sensor output on the monitor display between 2.1 and 2.5 V when the G sensor is in horizontal position?

    1. YES:  Go to step 10AG2.
    2. NO:  Go to step  10AG5: CHECK INPUT VOLTAGE OF G SENSOR. .
  2. 10AG2: CHECK POOR CONTACT IN CONNECTORS.

    CHECK: Is there poor contact in connector between ABSCM & H/U and G sensor?

    1. YES:  Repair connector.
    2. NO:  Go to step 10AG3.
  3. 10AG3: CHECK ABSCM & H/U.
    1. Connect all connectors.
    2. Erase the memory.
    3. Perform inspection mode.
    4. Read out the trouble code.

    CHECK: Is the same trouble code as in the current diagnosis still being output?

    1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
    2. NO:  Go to step 10AG4.
  4. 10AG4: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

    CHECK: Are other trouble codes being output?

    1. YES:  Proceed with the diagnosis corresponding to the trouble code.
    2. NO:  A temporary poor contact.
  5. 10AG5: CHECK INPUT VOLTAGE OF G SENSOR.
    1. Turn ignition switch to OFF.
    2. Remove console box.
    3. Disconnect G sensor from body. (Do not disconnect connector.)
    4. Turn ignition switch to ON.
    5. Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 1 (+) - No. 3 (-):
    Fig 2: Measuring Voltage Between "G" Sensor Connector Terminals
    G02011021

    CHECK: Is the voltage between 4.75 and 5.25 V?

    1. YES:  Go to step 10AG6.
    2. NO:  Repair harness/connector between G sensor and ABSCM & H/U.
  6. 10AG6: CHECK OPEN CIRCUIT IN G SENSOR OUTPUT HARNESS AND GROUND HARNESS.
    1. Turn ignition switch to OFF.
    2. Disconnect connector from ABSCM & H/U.
    3. Measure resistance between ABSCM & H/U connector terminals.

    Connector & terminal

    1. (F49) No. 6 - No. 28:
    Fig 3: Measuring Resistance Between ABSCM & H/U Connector Terminals
    G02011022

    CHECK: Is the resistance between 4.3 and 4.9 kohm?

    1. YES:  Go to step 10AG7.
    2. NO:  Repair harness/connector between G sensor and ABSCM & H/U.
  7. 10AG7: CHECK GROUND SHORT IN G SENSOR OUTPUT HARNESS.
    1. Disconnect connector from G sensor.
    2. Measure resistance between ABSCM & H/U connector and chassis ground.

    Connector & terminal

    1. (F49) No. 6 - Chassis ground:
    Fig 4: Measuring Resistance Between ABSCM & H/U Connector & Chassis Ground
    G02011023

    CHECK: Is the resistance more than 1 Mohm?

    1. YES:  Go to step 10AG8.
    2. NO:  Repair harness between G sensor and ABSCM & H/U.
  8. 10AG8: CHECK G SENSOR.
    1. Connect connector to G sensor.
    2. Connect connector to ABSCM & H/U.
    3. Turn ignition switch to ON.
    4. Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 2 (+) - No. 3 (-):
    Fig 5: Measuring Voltage Between "G" Sensor Connector Terminals
    G02011024
    Fig 6: Measuring "G" Sensor In This Position
    G02011025

    CHECK: Is the voltage between 2.1 and 2.5 V when G sensor is horizontal?

    1. YES:  Go to step 10AG9.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  9. 10AG9: CHECK G SENSOR.

    Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 2 (+) - No. 3 (-):
    Fig 7: Measuring "G" Sensor In This Position
    G02011026

    CHECK: Is the voltage between 3.7 and 4.1 V when G sensor is inclined forwards to 90°?

    1. YES:  Go to step 10AG10.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  10. 10AG10: CHECK G SENSOR.

    Measure voltage between G sensor connector terminals.

    Connector & terminal

    1. (R70) No. 2 (+) - No. 3 (-):
    Fig 8: Measuring "G" Sensor In This Position
    G02011027

    CHECK: Is the voltage between 0.5 and 0.9 V when G sensor is inclined backwards to 90°?

    1. YES:  Go to step 10AG11.
    2. NO:  Replace G sensor, see "G" SENSOR  .
  11. 10AG11: CHECK POOR CONTACT IN CONNECTORS.

    Turn ignition switch to OFF.

    CHECK: Is there poor contact in connector between ABSCM & H/U and G sensor?

    1. YES:  Repair connector.
    2. NO:  Go to step 10AG12.
  12. 10AG12: CHECK ABSCM & H/U.
    1. Connect all connectors.
    2. Erase the memory.
    3. Perform inspection mode.
    4. Read out the trouble code.

    CHECK: Is the same trouble code as in the current diagnosis still being output?

    1. YES:  Replace ABSCM & H/U, see ABS CONTROL MODULE AND HYDRAULIC CONTROL UNIT (ABSCM & H/U)  .
    2. NO:  Go to step 10AG13.
  13. 10AG13: CHECK ANY OTHER TROUBLE CODES APPEARANCE.

    CHECK: Are other trouble codes being output?

    1. YES:  Proceed with the diagnosis corresponding to the trouble code.
    2. NO:  A temporary poor contact.
