Check List For Interview: Symptoms

WARNING: This page is about a different car, the 2001 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

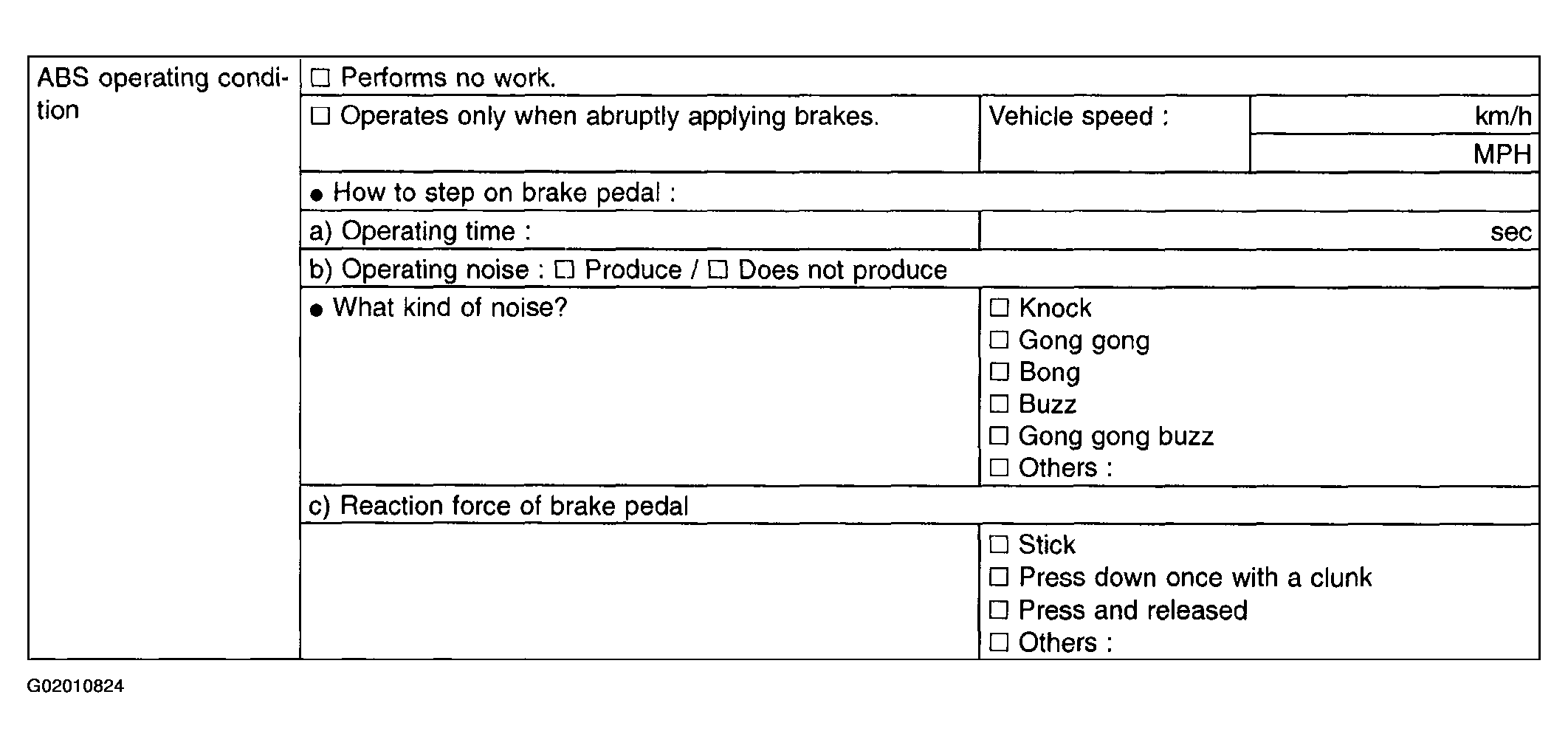

Fig 1: Symptoms Check List (1 Of 2)
G02010824

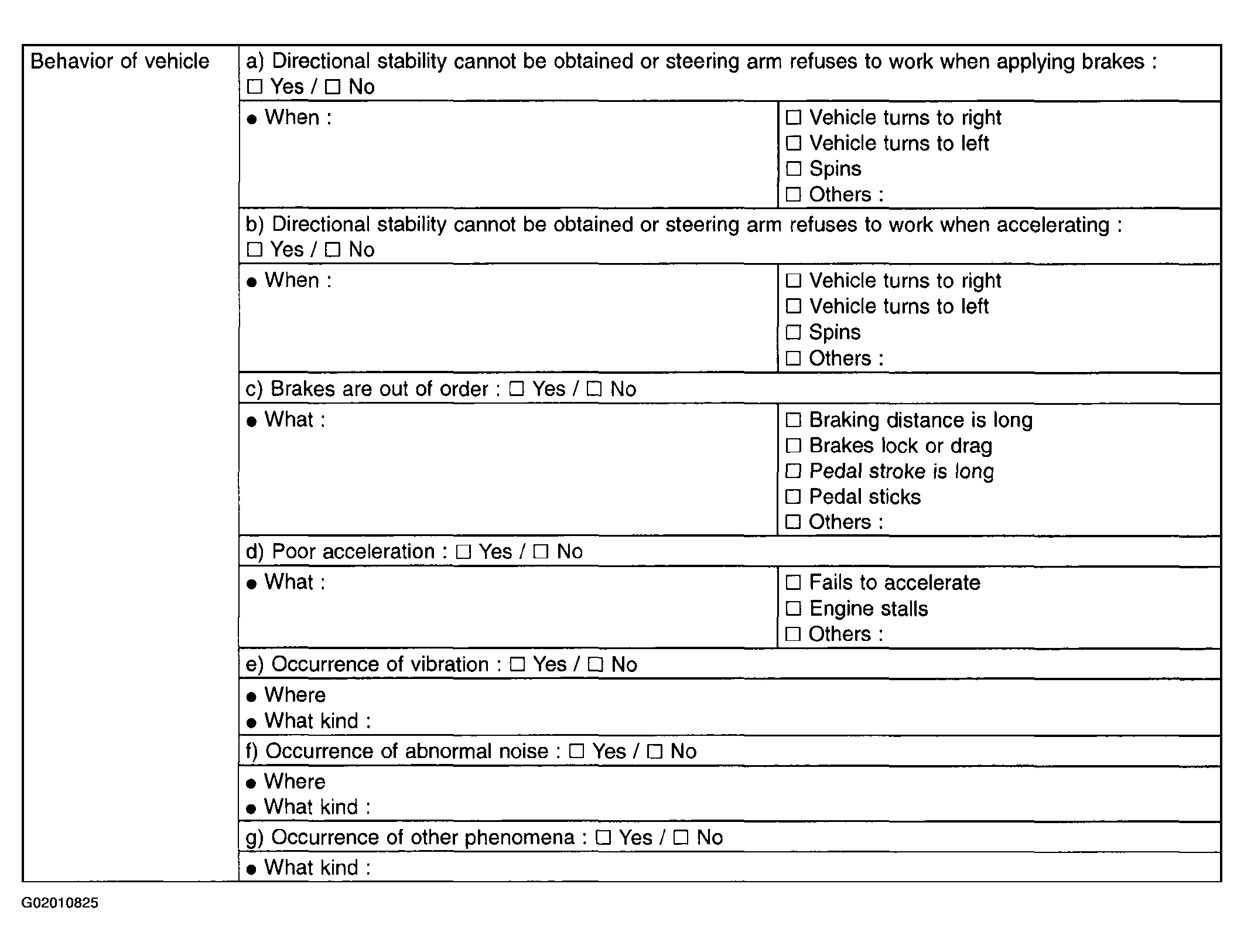

Fig 2: Symptoms Check List (2 Of 2)
G02010825
